Marinco 70 amp Trolling Motor Plug and Receptacle

Model: 12VCPS3

• 70A continuous rating
• Universal design for 2 or 3-wire configuration 12V, 24V, 12/24V, 24/36V, 36V or 48V systems
• Corrosion resistant, plated brass electrical components
• Receptacle contains watertight sealing cap
• Plug contains Integrated strain relief and keyed design with thumbprint locator
• Accepts up to 6 AWG wire

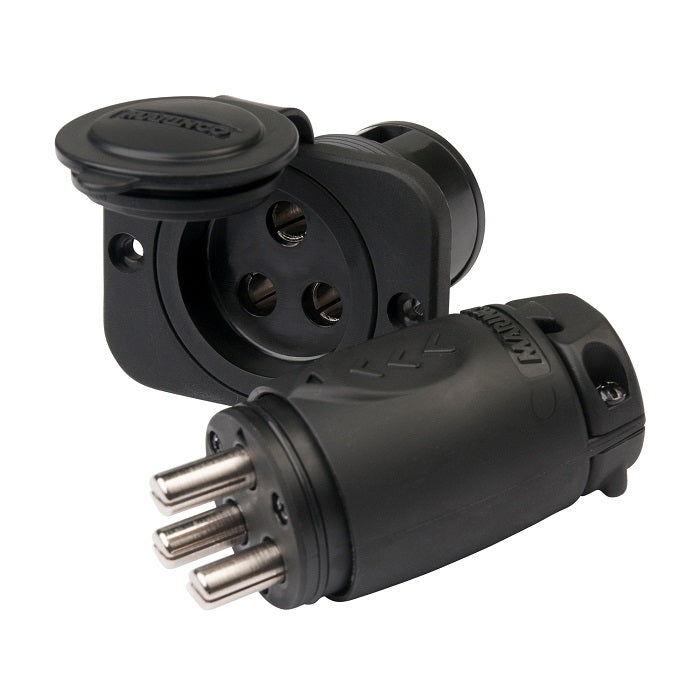

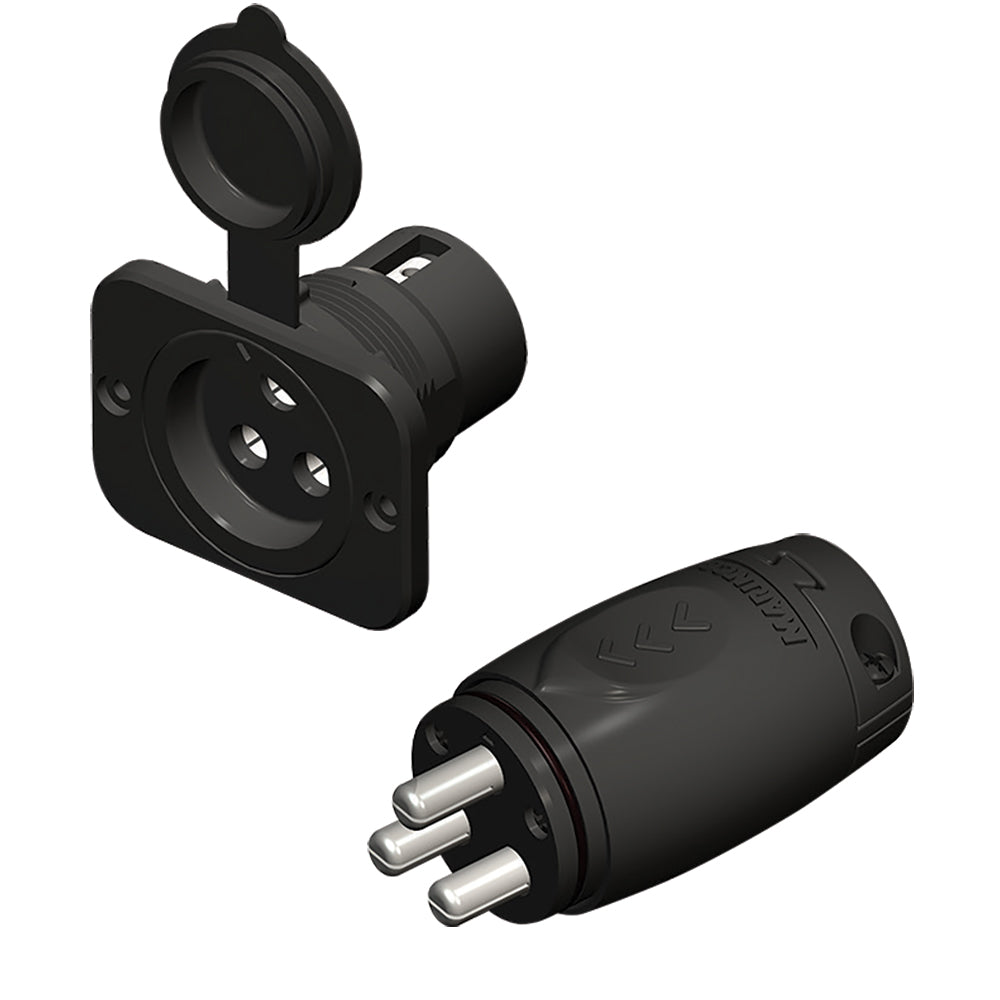

70A plug and receptacle for modern trolling motors in a compact, waterproof footprint. The plug features an integrated strain relief and thumbprint locator to mate with the keyed receptacle.

Specifications

Plug
Maximum Amperage
70A (12V and 24V)
60A (36V and 48V

Voltage
12V, 24V, 12/24V, 36V, 24/36V, & 48V

Wire
2 or 3

Gender
Male

Terminals
Double Set Screw w/ferrule

Wire Size
8AWG and 6AWG
Receptacle
Maximum Amperage
70A (12V and 24V)
60A (36V and 48V

VoltageVoltageVoltageVoltageVoltageVoltageVoltage
12V, 24V, 12/24V, 36V, 24/36V, & 48V

Wire
2 or 3

Gender
Female

Terminals
Double Set Screw w/ferrule

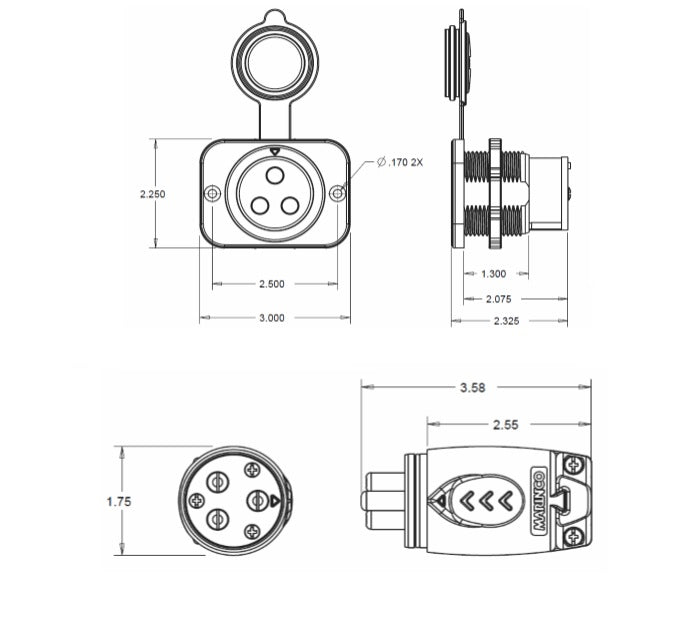

Mounting Hole size
1.75"

Mounting Thickness
1" Max
Material Specifications
Body
Nylon

Contacts
Nickle Plated Brass

Terminal Screws
Nickle Plated Brass

What's in the Box:

• 12VBPS3 70A Plug
• 12VBRS3 70A Receptacle
