B&G Vulcan 7R 7" MFD

B&G Vulcan 7R 7" MFD

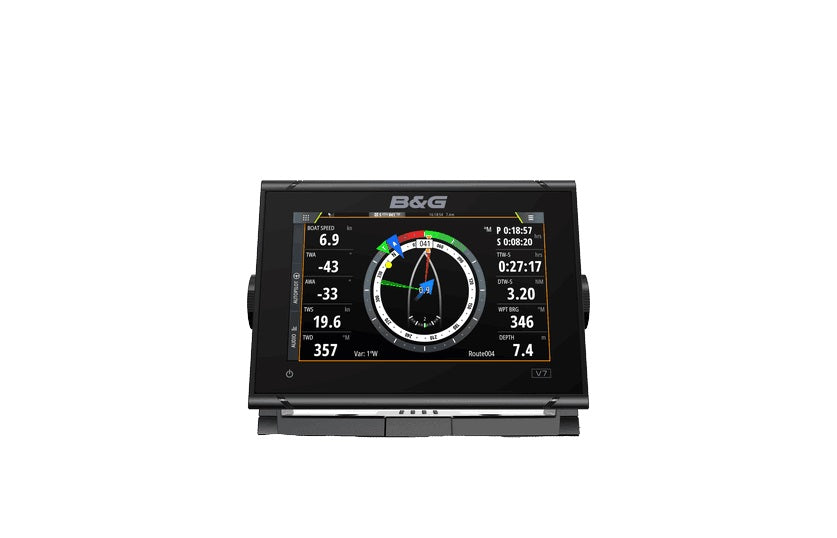

B&G Vulcan 7 7-inch chartplotter and radar display with global basemap

Model: 000-14082-001

• Easy to use multi-touch display


• Dedicated sailing features for cruising or racing: SailSteer, SailingTime, RacePanel, Laylines


• Easy to integrate — Connect Vulcan to an existing system and add basic sailing components


• Broadband Radar™ and ForwardScan™ ready


• Integrated Wi-Fi


• Control your B&G Pilot


• Instrument data display

The B&G Vulcan 7 is a great value, sailing chartplotter designed for coastal cruising and club racing. This easy-to-use, intuitive 7-inch multi-touch screen is packed with B&G’s unique sailing features including SailSteer and RacePanel. Simply integrate with your existing system, expansion is simple as Vulcan is NMEA 2000®, Broadband Radar™, ForwardScan™ and autopilot ready; and features built-in 10Hz GPS and Wi-Fi.

B&G's Vulcan range of sailing chartplotters take the guesswork out of sailing. Whether you’re an experienced sailor or just starting out, Vulcan is packed with features that will help you get the most from your time on the water.

We’ve designed our Vulcan chartplotters to be as intuitive as a tablet or smartphone. The low-profile, super-bright display is visible even in direct sunlight, and the responsive touch screen gives fingertip control, even in flying spray and a rough sea state. Pinch-to-zoom, swipe and tap controls let you input waypoints and routes and view chart details with ease.

Let Vulcan guide you safely to your destination: place waypoints and routes with a single tap on the chart and let Vulcan take you there with clear, intuitive graphics and data for guidance. Add a compatible chart card to benefit from autorouting and let Vulcan’s intelligent software choose the best and safest route to your destination.

Enjoy safe and precise navigation with a Vulcan sailing chartplotter and C-MAP DISCOVER charts on your sailboat. Offering ultra-wide coverage for the US and Canada, C-MAP DISCOVER charts include full-featured Vector Charts, Custom Depth Shading, Tides & Currents and the very best of C-MAP high-resolution Bathymetric contours, including integrated Genesis® data. Planning a day on the water is simple with C-MAP Easy Routing™ and always have the latest DISCOVER chart data with 12 months of free online updates. If you would rather select your own chart, Vulcan is compatible with C-MAP, Navionics®, NV Digital and more.

Put Vulcan at the heart of your boat and take control of your B&G autopilot from your Vulcan’s touchscreen. With an installed controller elsewhere, the intuitive controls can be accessed from any screen with a simple tap and allow you to alter course, tack, gybe, sail to wind or compass. Take advantage of the advanced sailing algorithms that make B&G Pilots as good as the best helmsman — all from your Vulcan’s touch screen.

Know exactly where you are at all times with an inbuilt, high accuracy 10Hz GPS receiver.

Get up and running quickly: Vulcan chartplotters are optimised for sleek flush mounting, standing only 8mm proud of the bulkhead for a low-profile ‘glass helm’ look. Alternatively, mount in minutes using the supplied bracket on horizontal, vertical or overhead surfaces.

Specifications

Display Resolution
800x480

Screen Brightness
1200 nits

Waterproofrating
IPX6 & 7

Operating Temperature Range
-15°C to +55°C (5° F to 131° F)

Storage Temperature Range
-20°C to +60°C (4°F to 140°F)

SD Card Storage
1 Micro SD slot, max. 32GB each. >32 GB format to NTFS

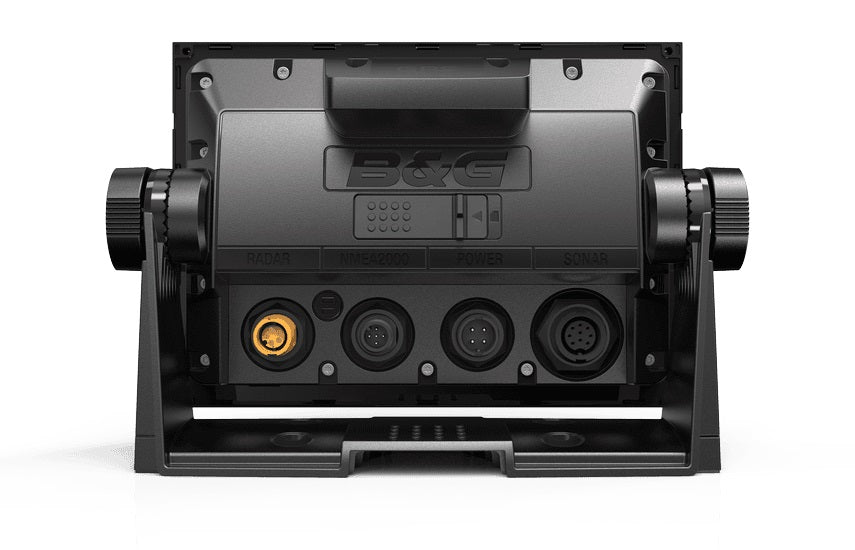

Ethernet Ports
1 x 5 pin yellow connector x 100 Mbits/s. Radar and Sirius (USA only) connectivity only

NMEA 2000 Connectivity
1 x NMEA 2000 Micro-C port, 1 LEN

Weight
1.320 kg (2.91lb)

Update rate
10 Hz

Power Consumption typical
12 W

Supply Voltage
12V (10 — 17V)

Dimensions W x H x D
197 mm x 141 mm x 82.7 mm (7.56" x 5.55" x 3.26") (no bracket)

Warranty Period
2 Years

Power Consumption max
20 W

GPS Receiver Channels
32 Channels

Recommended Fuse Rating
3A

Waypoints, Routes, Tracks
6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.

Display Size
7 inches

Viewing Angles
80° top/bottom, 80° left/right

Internal Storage
90MB

Digital Switching
BEP C-Zone, NaviOP

Mounting Type
Bracket or Panel

Time to First Fix
Cold start less than 90 seconds exposed to open sky, Satellite Reacquisition 5 sec

NMEA 0183 Sentences supported
Exports NMEA0183 over WiFi

Radar compatibility
Halo, Broadband, HD Radars

Position Accuracy
Horizontal Accuracy 3 m (9.8 ft.)

Charts supported
Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)

Sonar Compatibility
Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic Connector

Connectivity Wi Fi
Internal

Bluetooth
Internal

GPS
Internal, 10Hz, WASS, MSAS, EGNOS

PC Connectivity
None

Video
None

AIS
Receive AIS data over NMEA 2000 only

Weather
Sirius XM WM-3 (USA only), GRIB

Manouevres Turn Patterns
Tack / Gybe, Depth contour tracking

Interface
Touch screen, ZC1 or ZC2 controller via NMEA 2003

Multimedia
via SonicHub2, Fusion Link, *Sirius, **JL Audio. (*USA only, **AUST. & NZ only)

Correction
WASS, MSAS, EGNOS, GLONASS

Backlight Color
White

Steering Modes
Wind*, Auto, Nav., No Drift, Follow up, Non-follow up, Standby, Wind NAV.* (*Boat type set to Sail)

Autopilot
Wind*, Auto, Nav., No Drift, Follow up, Non-follow up, Standby, Wind NAV.* (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission

What's in the Box:

• Vulcan 7 Display


• Sun Cover


• Mounting Brcket and Knobs


• Dash Mount Kit


• Bezel
