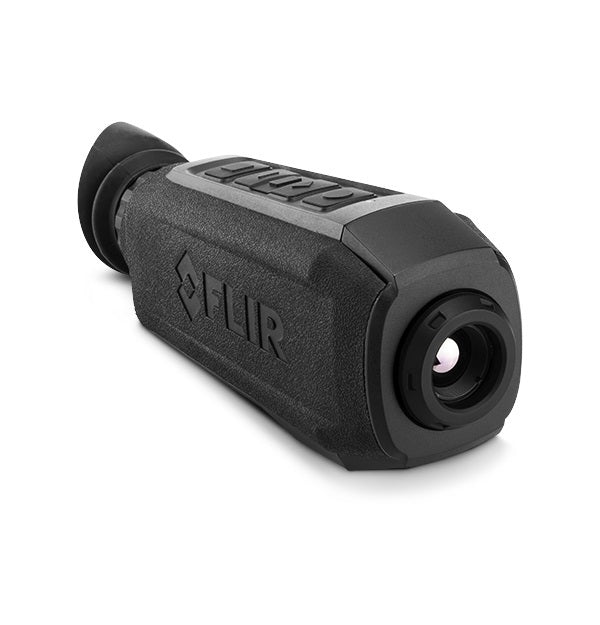

FLIR SCION PTM366 Thermal Monoccular 640 x 480 18d FOV IP Streaming 60Hz

FLIR SCION PTM366 Thermal Monoccular 640 x 480 18d FOV IP Streaming 60Hz

FLIR SCION PTM366 Thermal Imager 640x480 60 Hz 14mm

Model: 7TM-01-F330

• Pairing Scion PTM with FLIR’s innovative TruWITNESS platform provides public safety agencies with enhanced situational awareness and real-time centralized information.


• The full-featured Scion PTM packs onboard recording, picture-in-picture zoom, and intuitive controls into a rugged thermal optic


• The advanced image processing of FLIR’s Boson® thermal core paired with a 60 Hz image refresh rate provide smooth, unwavering vision in challenging environments.

Specifications

Detector Type
640 x 512

Internal Memory
2 GB Internal Storage / Optional microSD™ Card (up to 128 GB)

Size
227 76.8 60.5 mm (9 3 2.4 in)

Weight
Without Batteries: 452 g; With Batteries 572 g

SYSTEM OVERVIEW

Eye Relief
16 mm

Color (housing)
Black

Lens System
25 mm

Optical Magnification
1.3x

Display Focus
Manual

Core Technology
BOSON 12 µm Vox Microbolometer

CONNECTIONS & COMMUNICATIONS

Bluetooth
BLE 4.1+

USB
USB-C; Power In; Video Out; Video and Image File Transfer

Geo Positioning [GPS]
No

Wifi
Video Streaming, File Transfer

ENVIRONMENTAL

Mounting
¼-20 Tripod Mount

IMAGING & OPTICAL

Digital Zoom
1X , 2X , 4X,8x

Field of View
18° 13°

Refresh Rate
60hz

Detection Range Performance [1.8 m man]
1000m

METER DATA

Auto Power Off
Yes

Display
Quad-VGA (1280x960) High definition display

POWER

Battery Life
Up to 4.5 hours at 20°C

Battery Type
6x CR123A 3V Lithium Battery

UI-UX

Temperature Imaging Modes
White Hot; Black Hot; Iron Bow; Rainbow; Graded Fire; Lava

Viewing Modes
Scouting, Picture-in-Picture

Picture While Recording
Yes

Real Time Clock
Yes

DateTime Stamp
Yes

Magnetic Compass
Yes

Accelerometer
Yes
