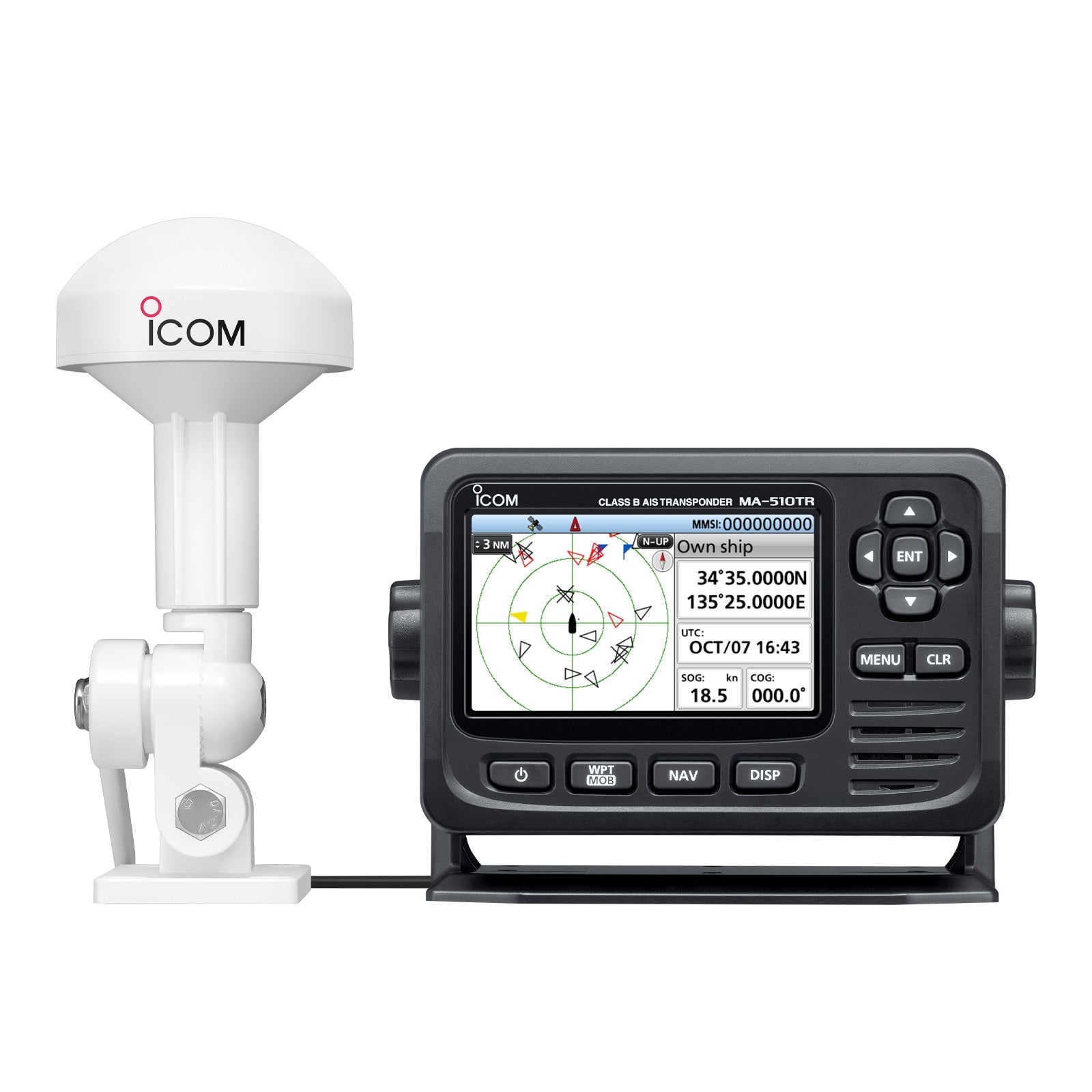

Icom MA-510TR Class B AIS Transponder

Model: MA-510TR 13

• Collision Alarm Function


• Anchor Watch Alarm


• Man Overboard


• Individual DSC Call available with a compatible Icom VHF with an accessory cable


• USB connectivity


• Multi-lingual user interface


• 12V and 24V compatible

The Class B AIS Transponder with GPS navigation function and NMEA 2000™-connectivity and receives both A and B AIS signals. With both A and B AIS signals, the range of detection increases safety. Leisure, fishing or cruising vessels can stay safe and informed on the open sea with this feature-packed transponder.

The MA-510TR comes with a 4.3" color TFT LCD. The wide-viewing angle screen provides clear navigation details such as potential collision vessels marked as red, and registered friends marked as yellow. All vessels that are within 6NM CPA and 60 minutes TCPA from a vessel are put into a respective danger or friend list. The day-mode function allows visibility in direct sunlight. Night-mode provides optimal viewing brightness for comfortable operation.

The built-in GPS Navigation function guides users to waypoints or AIS targets. Assign up to 100 destinations or fishing spots.

Operate securely and privately with the silent mode function. Switch off the AIS transmitter to temporarily stop sending out position location. Other AIS signal reports art still received when silent mode is on. Keep fishing spots privately from other vessels by utilizing silent mode.

The MA-510TR can connect to both NMEA 2000™ and NMEA 0183/-HS. Connect to a NMEA 2000™ network such as an external plotter, marine radar and VHF radios. With NMEA 0183/-HS, connect to a transceiver, plotter device, marine radar, external GPS receiver and a switch button.

Specifications

General

Frequency coverage
161.500 MHz to 162.025 MHz

Type of emission
16K0GXW (GMSK)

Antenna impedence
50 Ohms nominal

Operating temperature range
-20°C to +60°C; -4°F to +140°F

Power supply requirement
Negative ground:
12V or 24V DC nominal
(9.6V to 31.2V)

Current drain (at 12V DC)
tx - 1.5A
Rx - 0.7A

Dimensions (approximate) (Projections not included)
6.5 (W) 4.3 (H) 3.6 (D) inches

Transmitter

Output power
2W

Modulation
16K0GXW (GMSK)

Conducted spurious emission
Less than —36 dBm (9 kHz—1 GHz)
Less than —30 dBm (1 GHz—4 GHz)

Receiver (AIS)

Sensitivity
Less than —110 dBm

Adjacent channel selectivity
More than —31 dBm

Spurious response
More than —31 dBm

Intermodulation
More than —36 dBm

Conducted spurious emissions
Less than —57 dBm (9 kHz—1 GHz)
Less than —47 dBm (1 GHz—4 GHz)

Blocking
More than —15 dBm (±0.5 MHz ±5 MHZ)
More than —23 dBm (±5 MHz — ±10 MHz)

Co-channel
More than -111 dBM

Receiver (DSC)

Frequency coverage
156.525 MHz

Type of emission
16K0G2B

Sensitivity
Less than —110 dBm

Adjacent channel selectivity
More than 70 dBm

Spurious response
More than -34 dBm

Intermodulation
More than -39 dBm

Blocking
More than -20 dBm

GPS Antenna

Received frequency
1575.42 MHz

Acquisition
72 ch (maximum)

Differential satellites
WAAS, EGNOS, MSAS, GAGAN

Dimensions (approximate)
96.2 225 (H) mm, 3.8 8.9 (H) inches

Cable length (approximate)
32.8 ft

Data Interface

USB (Type-B Mini)
GGA, GNS, GLL, GSA, GSV, RMC, VTG, VDM, VDO, ACA, ACS, ALR, TXT

NMEA 2000™ Input
059392/904, 060160/416/928, 065240, 126208/996, 129026/029/545

NMEA output
059392/904, 060416/928, 126208/464/993/996/998, 129026/029/038/039/040/041/539/540/545/792/793/794/797/798/801/802/803/805/806/807/809/810/811

NMEA 0183 NMEA Input/Outpu
4800—38400 bps Input/Output, sentence format (Output: GGA, GNS, GLL, GSA*1, GSV*1, RMC, VTG, GBS, DTM, DSC)

External GPS Input
4800—38400 bps Input, sentence format (GGA, GNS, GLL, RMC, VTG, GBS*2, DTM)

AIS Output
38400 bps Output, sentence format (VDM, VDO, ACA, ACS, ALR, TXT)

*1 Only 38400 bps.
*2 When a received GPS signal does not include a GBS sentence, the transponder will not receive the signal from the external GPS receiver

What's in the Box:

• MA510TR


• GPS antenna


• DC power cable


• Mounting bracket kit


• Accessory connector
