Lowrance Elite FS 7 Active Imaging 3 in 1 Transducer

Lowrance Elite FS 7 Active Imaging 3 in 1 Transducer

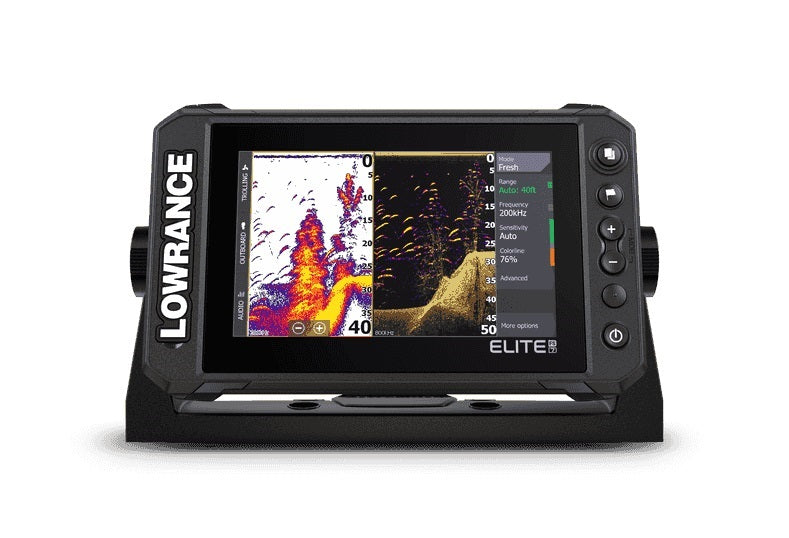

Lowrance Elite FS 7 Display with C-Map Contour+ and Active Imaging 3 in 1 Transdcuer

Model: 000-15688-001

• ActiveTarget™ Live Sonar ready


• FishReveal™


• Preloaded C-MAP Contour+ with 1-foot contours on 8,900 lakes, plus mapping options including C-MAP, Navionics® and more


• C-MAP® Easy Routing, Navionics® Autorouting capability


• C-MAP Genesis Live onscreen mapping


• High-resolution multi-touch touchscreen


• Integrated wireless, NMEA 2000® and Ethernet connectivity


• Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor

The Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install. From ActiveTarget™ Live Sonar and extreme high-resolution Active Imaging™ with Lowrance CHIRP sonar, SideScan and DownScan Imaging™ to preloaded C-MAP® Contour+ Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish.

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal™. Get the best of CHIRP sonar and DownScan Imaging™ on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Fish smarter when you know exactly what fish are doing — in real time — with ActiveTarget™ Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up.

Spend more time trying to catch fish and less time trying to find them with the high-resolution detail of C-MAP® Contour+ inland and coastal charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 8,900 U.S. lakes.

Specifications

Environmental

Operating temperature range
-15°C to +55°C (5°F to 131°F)

Storage temperature
-20°C to +60°C (4°F to 140°F)

Waterproof rating
IPX6 and IPX7

Electrical

Supply voltage
12 V DC (10 - 17 V DC min - max)

Recommended fuse rating
3 A

Power consumption (maximum)
28 W (2 A at 13.8 V DC)

Display

Resolution
800 x 480 pixels

Viewing angles in degrees
50° top, 60° bottom, 70° left and right

Brightness
> 1200 nits

Touch screen
Multitouch

Physical

Weight (display only)
0.9 kg (1.9 lbs.)

Compass Safe Distance
0.5 m (1.6 ft.)

Interface/Connectivity

NMEA 2000®
1 port (Micro-C connector)

Data card reader
1x slot (microSD, SDXC)

Ethernet
1 port, (5-pin Ethernet connector, 100Base-T)

Sonar
1 port (9-pin connector)

WiFI Internal
802.11b/g/n : No wireless networking between units

Bluetooth®
4.0 with support for Bluetooth® Classic

GPS
10Hz high speed update WAAS, MSAS, EGNOS, GLONASS

What's in the Box:

• Elite FS 7 Display


• Suncover


• Mounting bracket and knobs


• Power cable


• Fuse and Fuse holder


• Active Imaging 3-IN-1 Transducer
