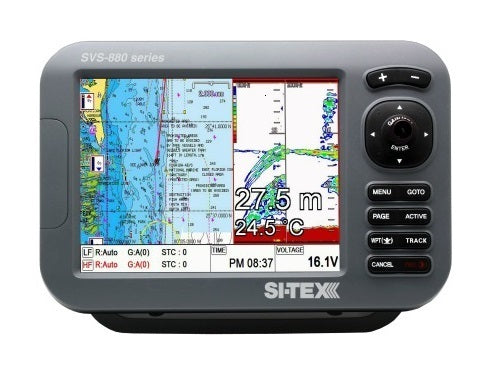

SI-TEX SVS-880CF 8" Color Plotter Sonar

With Internal Antenna

• 10.1" high-resolution color LCD
• 52-channel GPS
• "Dual fuel" charting the C-MAP and Navionics cartography
• Pre-loaded w/Navionics Gold North American Chart Card
• Global GPS compatibility
• Brilliant LED backlighting for daylight readability
• Easy, intuitive operation and control
• Video input for underwater and on-deck cameras

Display type
8" Color

Resolution
SVGA 800 x 600
GPS
Channels
52

Support
DGPS, SBAS(EGNOS,WAAS, MASA, GAGAN)

Nav update
1Hz, 5Hz
Chartplotter
Display modes
True motion / N/S/E/W up / Course up / Head up

Map scale
0.05nm to 1500nm

Waypoints
20,000

Track points
50,000

Routes
100

Cartography
Standard w/Navionics Gold C-MAP MAX optional

Output data
NMEA-0183

Input data
NMEA-0183

Alarms
Arrival, Anchor, XTE, Interval timer, Userline
Sonar Specifications
Display mode
Normal (single/dual-frequency), Bottom-lock. Bottom-zoom, A-scope

frequency
50 and 200 KHz (single or dual)

Output power
600W

Input Voltage
12-36vdc

Input Draw
6W
