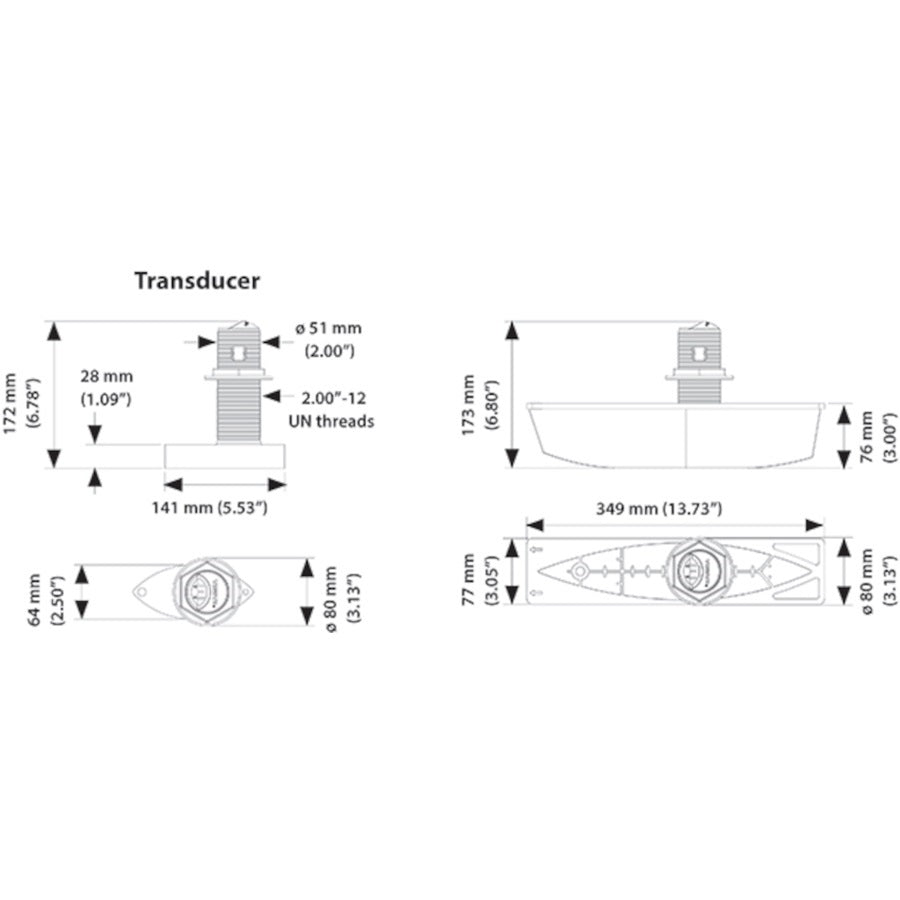

Airmar B785C Bronze Transducer Medium CHIRP With Navico BL 7-Pin

Airmar B785C Bronze Transducer Medium CHIRP With Navico BL 7-Pin

Airmar B785C Triducer Medium CHIRP with Navico 7-Pin Mix-N-Match Cable

• Depth & fast-responDepth and fast-response water-temperature sensing


• 600 W of power


• Medium frequency: 80 to 130 kHz


• 24° to 16° beamwidth


• Maximum depth of 274 m (900')


• 50 kHz of total bandwidth from one transducer


• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth


• Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation


• Recommended for use on planing or displacement hull


• Bronze housing with High-performance Fairing for optimal performance at higher speeds


• Patented Xducer ID® technology

The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900') along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

Cable-Length
9 m (30ft)

Acoustic Window
Urethane

Connector
Airmar 12-Pin (MMC)

Deadrise Range
Up to 24° with fairing

Display Connector
Navico 7-Pin

Frequency Band
Medium 80-130 kHz

Hole Size
51 mm (2in)

Housing Material
Bronze

Max Depth
274 m (900ft)

Medium Frequency Beamwidth
24°-16°

Power Rating
600 W

Single or Dual Frequency
CHIRP-Ready Single-Band

Usable Shaft Length
121 mm (4.75")

What's in the Box:

• B785C-M-MM Triducer


• Fairing Block


• Anti-rotation Bolt


• MMC-BL cable
