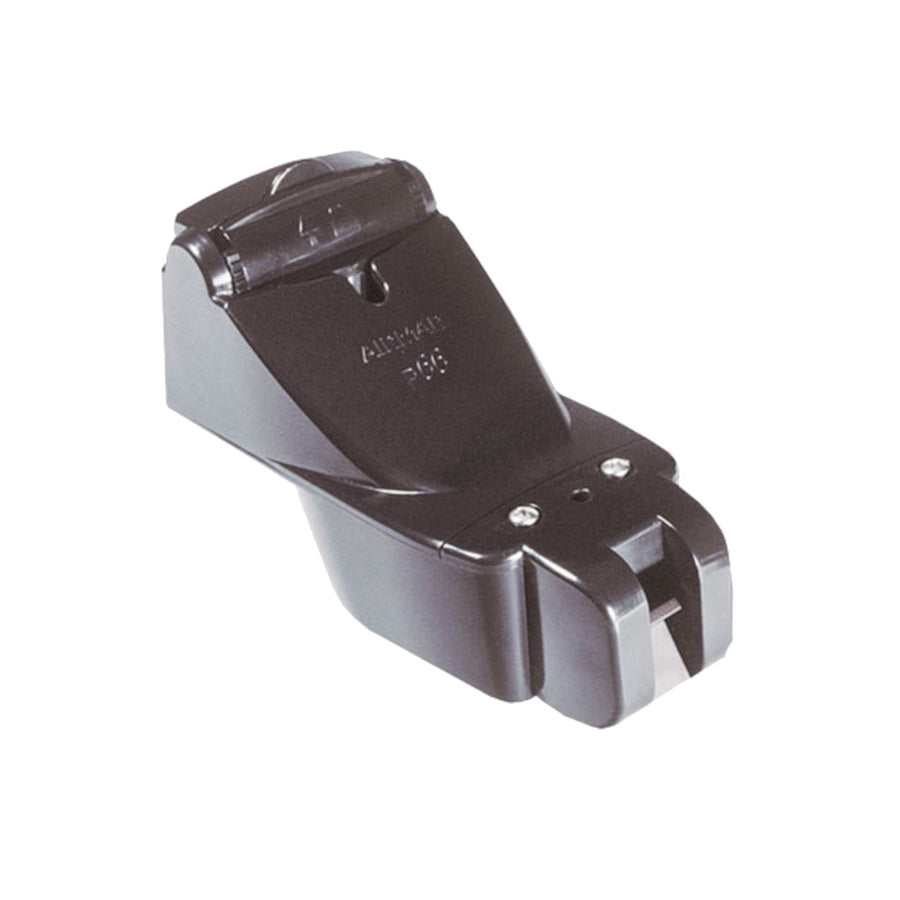

Airmar P66 50/200kHz 600W Depth Speed and Temperature with Furuno 10-Pin

Airmar P66 50/200kHz 600W Depth Speed and Temperature with Furuno 10-Pin

Furuno P66-10F 50/200kHz Depth Speed and Temperature Transom Mount Transducer with Furuno 10-Pin Connector

• Depth, speed, and fast-response water-temperature sensing


• 600 W of power


• 50 kHz with a 45° beamwidth for depth performance to 353 m (1200')


• 200 kHz with a 12° beamwidth for depth performance to 206 m (700')


• Recessed water-flow channel protects paddlewheel from obstructions


• Plastic release bracket protects sensor from frontal impact


• Sensor can be removed from bracket without tools for easy service or storage


• Chemical and impact-resistant plastic housing

The P66S TRIDUCER® Multisensor combines depth, speed, and temperature functions in one housing. And it features our 50/200 kHz, dual-frequency, ceramic element. This hydrodynamic housing with its rounded nose reduces the turbulence under the transducer’s acoustic face for accurate high-speed readings and clear display images. It is Airmar’s best TRIDUCER transom mount for boats up to 8 m (25') long.

Acoustic Window
Layered plastic urethane (LPU)

Cable-Length
10 m (33')

Connector
Furuno 10-Pin

Conventional Beam
45°/12°

Frequency Band
50/200 kHz

Max Depth
Low frequency- 366 m (1200'), High frequency- 206 m (700')

Mounting Style
Transom

Power Rating
600 W

Functions
Depth, Speed, Temperature
