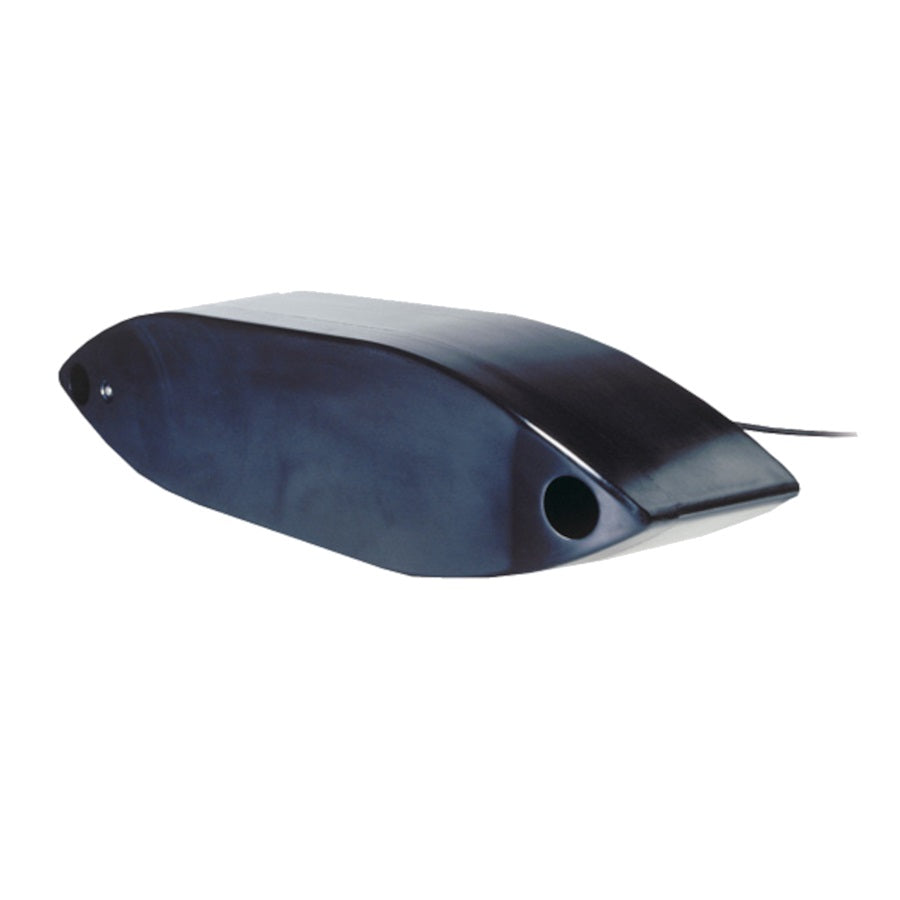

Airmar R509C-LH Low/High Chirp 3KW Thru-Hull Mount Depth/Temp No Connector

Airmar R509C-LH Low/High Chirp 3KW Thru-Hull Mount Depth/Temp No Connector

Airmar R509 Low-High Chirp, 3kW, w/FB, No Connector, DT

• Depth and fast-response water-temperature sensing


• 2 to 3 kW of power for exceptional deep-water performance


• Low frequency: 28 to 60 kHz, 23° to 9° port-starboard beamwidth, 11° to 5° fore-aft beamwidth, Maximum depth of 3048 m (10000')


• High frequency: 130 to 210 kHz, 8° to 4° beamwidth, Maximum depth of 457 m (1500')


• 112 kHz of total bandwidth from one transducer


• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth


• Urethane housing with fairing for optimal performance


• Patented Xducer ID® technology

The R509LH is the go-to transducer for today’s top captains who want maximum depth capability combined with the excellent target resolution of the high-frequency band. This powerhouse transducer delivers extreme target detail, bottom discrimination, and bait and game-fish separation at all depths. The R509LH is packed with a twenty-four element, low-frequency array that operates at anywhere between 28 and 60 kHz. The single, high-frequency ceramic operates at any frequency between 130 and 210 kHz and has a narrow, 8° to 4°, beam, delivering amazing target resolution and bottom detail.

Acoustic Window
Epoxy/urethane

Cable-Length
15 m (49')

Connector
Bare Wire

Deadrise Range
Up to 25° with fairing

Frequency
Low-High

Low Frequency
28-60 kHz

Low Frequency Beamwidth
11°x23°-5°x9°

High Frequency
130-210 kHz

High Frequency Beamwidth
8°-4°

Housing Material
Urethane

Max Deadrise
Up to 22°
