Airmar R599 Low-Medium Chirp, 3kW, No Connector, Depth

• Depth only


• 2 to 3 kW for superior deep-water performance


• Low frequency: 28 to 60 kHz


• 23° to 9° port-starboard beamwidth


• 11° to 5° fore-aft beamwidth


• Depth performance to 3,048 m (10,000')


• Medium frequency: 80 to 130 kHz


• 13° to 8° beamwidth


• Depth performance to 914 m (3,000')


• 82 kHz of total bandwidth from one transducer


• Covers popular fishing frequencies of 38, 50, 88, and 107 kHz plus everything else in the bandwidth


• Urethane transducer housing with plastic mounting tank


• Exclusive Xducer ID® technology

Having the right tool for the job makes the job easier and provides better results. The right tool for covering deep-water haunts of swordfish, tuna, and other species is a 2 to 3 kW, low to medium-frequency transducer. The Chirp-ready R599LM delivers the deep-water performance of the low frequency down to 3048 m (10000') plus the detailed returns produced by the narrower beams of the medium band.

Chirp technology shows 5 to 10 times-greater detail and resolution than conventional frequencies. The R599LM transmits across the low frequency bandwidth of 28 to 60 kHz and the medium frequency from 80 to 130 kHz. This transducer delivers up to 82 kHz of total bandwidth in a single installation.

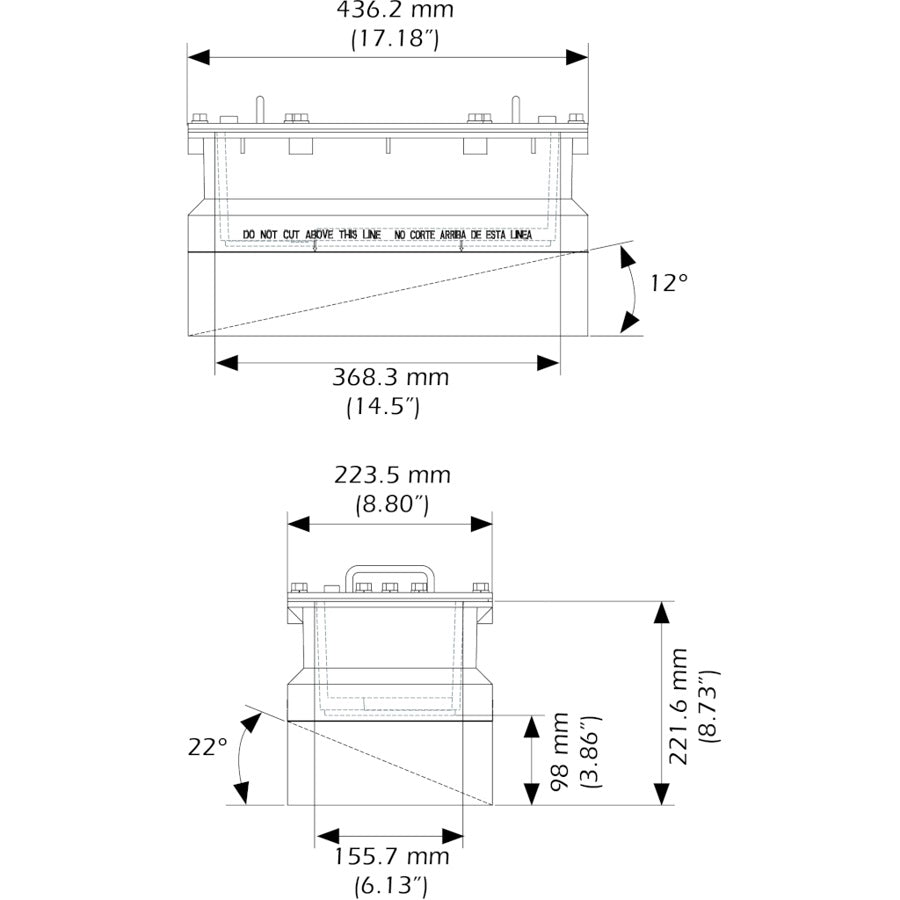

The transducer is installed in the included tank which is cut to the boat’s deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The R599LM is a popular choice for customers not wanting to drill a hole in their hull and for trailered or multi-hull boats.

Cable-Length
15 m (49')

Connector
Bare Wire

Cross Reference
A80213

Deadrise Range
0° to 22°

Display Connector
0

Frequency Band
Low-Medium

Housing Material
Urethane

Hull Material
Solid fiberglass only

Low Frequency
28-60 kHz

Low Frequency Beamwidth
23°-9°

Max Deadrise
Up to 22° (short side), up to 12° (long side)

Max Deadrise Angle
22°

Max Depth
Low frequency- 3048 m (10000'), Medium frequency- 914 m (3000')

Max Vessel LOA
12 m (40') and above

Medium Frequency
80-130 kHz

Medium Frequency Beamwidth
13°-8°

Mounting Style
In-Hull

Power Rating
2-3 kW

Single or Dual Frequency
CHIRP-Ready Dual-Band

Tilted Element
No

What's in the Box:

• R599 Transducer with 15m cable


• Tank


• Gasket


• Plate


• Hardware
