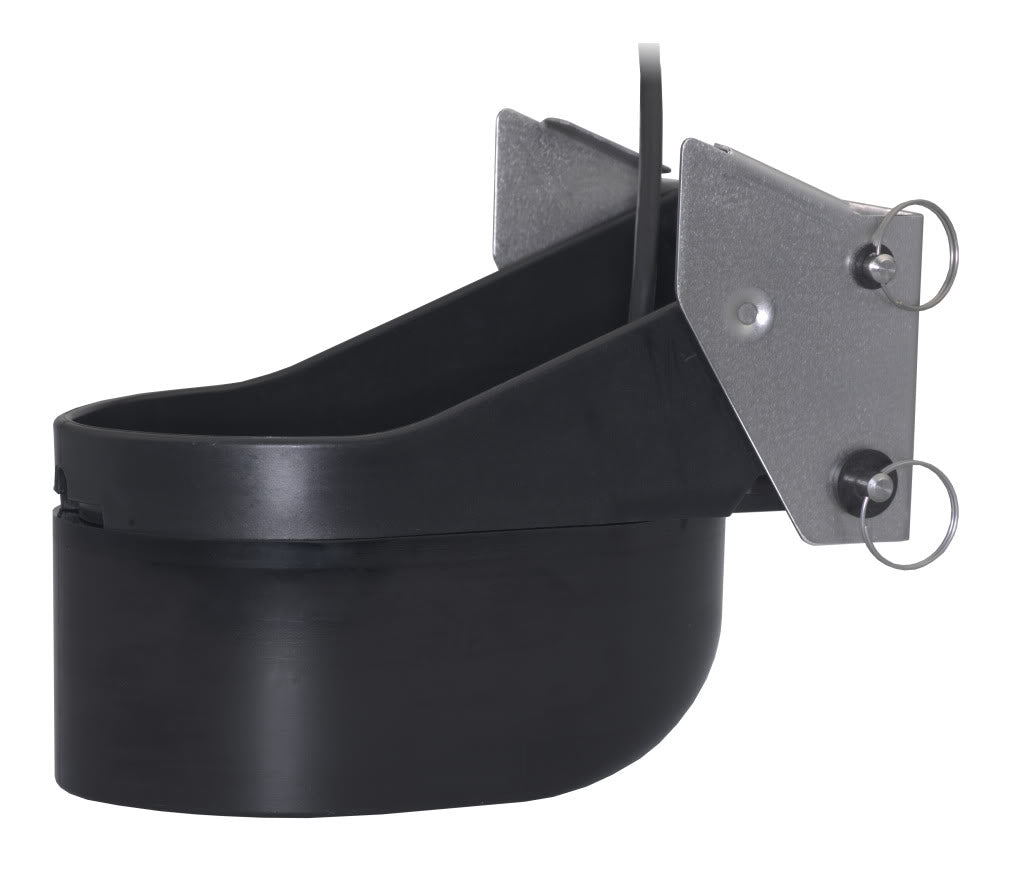

Airmar TM260 Transom Mount 1kW Blue Connector f/Simrad & Lowrance

TM260 Transom Mount 1kW Blue Connector for Simrad & Lowrance

Fits: Navico units with 7-Pin Blue Connector

Powerful, Yet Sensitive! The TM260 takes the legendary performance of the B260 to your vessel’s transom. This top-of-the-line, broadband, transom-mount brings crystal clear imaging to any of today’s fishfinders. The large, 200 kHz element and the seven-element, 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom. The TM260’s rugged mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).

Features:

• Transom-Mount, Urethane Housing



• Depth and Temperature



• Maximum Depth Range: 50 kHz— 529 m to 735 m (1,800’ to 2,500’), 200 kHz—206 m to 294 m (700’ to 1,000’)


• Boat Size: 8 m to 12 m (25’ to 40’)



• Top-of-the-line narrow-beam transom-mount



• Designed for bottom fishing



• Wide 19° beam at 50 kHz



• Narrow 6° beam at 200 kHz



• Interfaces to any 600 W or 1 kW sounder



• Cable length: 10m (33 ft)



• Kick-up assembly locks in the “up” position and will not damage the transom



• Accommodates transom angles between 3° and 21°

Fishing Applications:

• Blue-water trolling using 50 kHz



• Deep-water bottom and wreck fishing up to 800 m (2,625')
