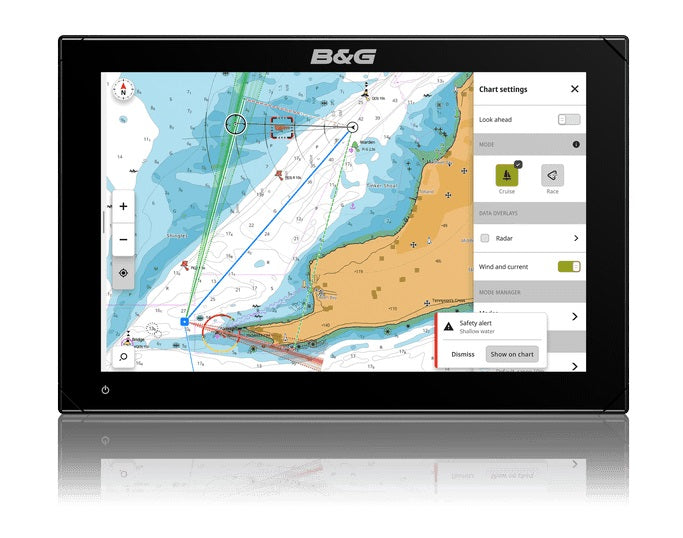

B & G Zeus S 12 Chartplotter Next-generation C-MAP® DISCOVER™ X chart included

Model: 000-15224-001

• Features support for the new marine-optimized C-MAP® DISCOVER™ X and C-MAP REVEAL™ X charts with a fresh, intuitive chart presentation and daily updates


• High-definition IPS touch screen with extreme viewing angles, viewable through polarized lenses


• Full integration with the capability to expand the system with Simrad® radar, autopilot, and more


• Faster Autorouting with seamless accessibility


• Stay on course with full Simrad® autopilot integration


• Modern and straightforward interface


• B&G App integration — keep your chart data at your fingertips, both on and off the water


• Third-party app integration


• Wireless connectivity, plus Ethernet and NMEA 2000® networking capability


• IP Video Support

See the data you need, when you need it. Simply select your Sailing Mode for your situation, giving you just the information you need for Cruising or Racing.

Improve your sailing with easy to interpret pointers from B&G®’s award-winning sailing features for cruising and racing, with updates to SailSteer™, Laylines, StartLine, Routes, Racing and many more. C-MAP® powered Safety Alerts guard against grounding and dangerous objects.

C-MAP DISCOVER™ X and REVEAL™ X charts feature highly accurate data with simple viewing options for easy and clear navigation. Tides and currents projections improve trip planning and route plotting, further supported by our fastest-ever autorouting. Plus, get quick, one-touch access to POIs, tides, channels, and more.

Put your Zeus® S at the heart of a complete sailing system with easy integration. With NMEA 2000®, you can connect to Autopilot, Instruments, Radar, Sailing Processors, Audio, Engines, and a wealth of other compatible products. Zeus S also integrates easily with the B&G App, letting you plan trips, review routes, and manage waypoints from home, then sync the moment you step onboard.

Across the device, our new and intuitive interface is designed to feel familiar. Zeus S boasts a handy Setup Wizard to get you started, and ongoing tips to help you get the most from your Zeus S Chartplotter and networked equipment.

Specifications

Display

Size and Type
12" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity, and sunlight viewability with polarized sunglasses

Resolution
1280 x 800

Viewing Angles
85° (top, bottom, left, and right)

Screen Brightness
>1200 nits

Backlight Color
White

Power

Supply Voltage
12 V DC (10 - 17 V DC min - max)

Power Consumption max
29.7 W (2150 mA at 13.8 V)

Recommended Fuse Rating
3a

Physical

Dimensions W x H x D
With bracket: W: 319.5 mm (12.58") x H: 215.1 mm (8.46") x D: 86.0 mm

Weight
2.2 kg (4.9 lbs)

MountingType
Bracket (supplied), panel mount or flush mount

Compass Safe Distance
50 cm (1.7 ft)

Environmental

Operating Temperature Range
-15°C to 55°C (5°F to 131°F)

Storage Temperature Range
-20°C to 60°C (-4°F to 140°F)

Waterproof rating
IPx6 and IPx7

Humidity
IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)

Shock Vibration
100,000 cycles of 20 G

Interface and connections

Interface
Multi-touch screen

Sonar Compatibility
One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging

Ethernet
1 port (5-pin connector)

NMEA 0183
No

USB
1 port (USB A) Output: 5 V DC, 1.5 A

External Storage
1 MicroSD slot, 1 port (USB A)

GPS
Internal, 10Hz, WASS, MSAS, EGNOS

GPS Correction
10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS

GPS Position Accuracy
Horizontal Accuracy 3 m (9.8 ft)

GPS Receiver Channels
32 Channels

GPS Update rate
10Hz

J1939
No

ConnectivityPcConnectivity
No

WiFi
IEEE 802.11b/g/n

Bluetooth
Bluetooth 4.0 with support for Bluetooth Classic

Charts Supported
C-MAP Discover X, C-MAP Reveal X

Radar Compatibility
Halo Dome radars

Weather
No

AIS
Receive AIS data over NMEA 2000

Digital Switching
COMMAND DDS, CZone (Czone Control bar only on release to market)

Warranty Period
2 Years

What's in the Box:

• Zeus S 12


• M-NA-T-200-D-MS: DISCOVER X - NORTH AMERICA


• B&G Zeus S 12 Suncover


• 4-Pin Power Cable


• Fuse Kit


• NSX CORNER CLIP ACCESSORY


• U-BRACKET 12" GO, VULCAN, NSX, ZEUS S
