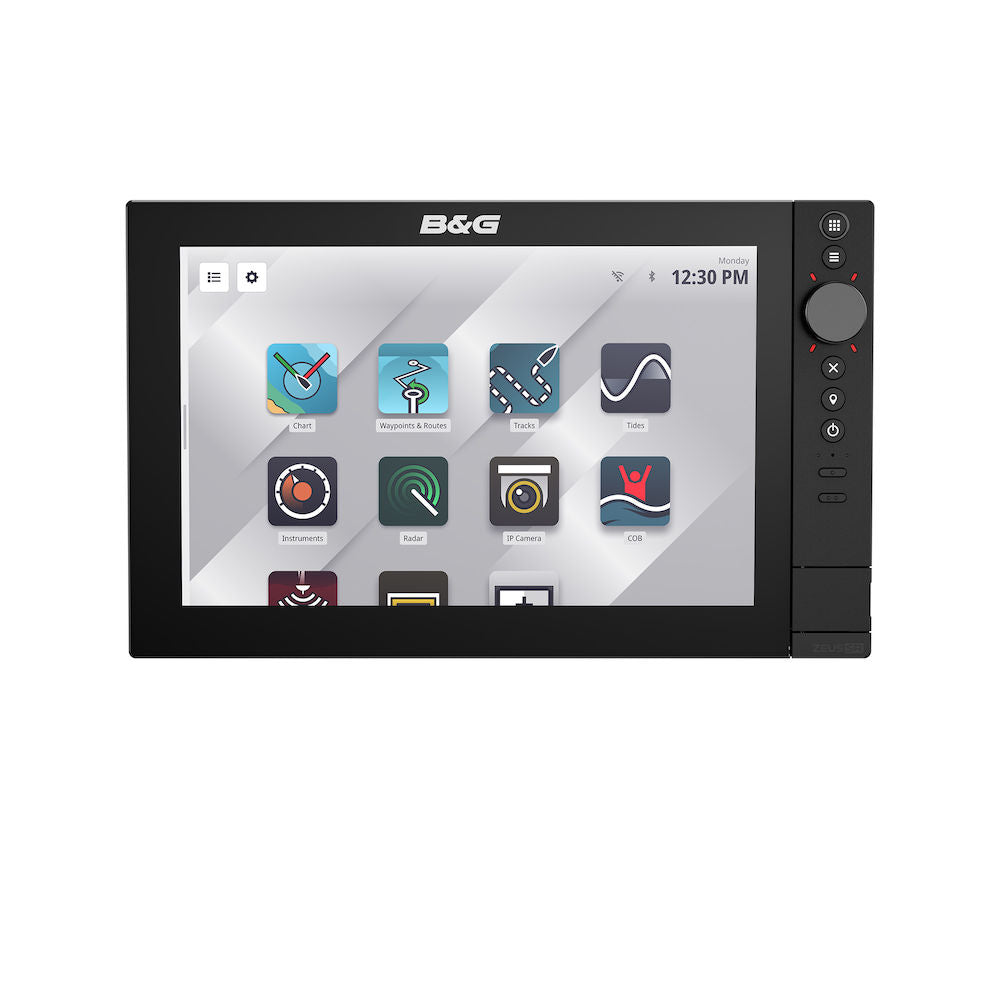

B&G Zeus SR-12 12in MFD US C-MAP No Sonar

B&G Zeus SR-12 12in MFD US C-MAP No Sonar

Model: 000-16024-001

• High definition SolarMAX IPS touchscreen, viewable from all angles, even with polarised glasses


• Separate modes for Cruising, Racing and Anchoring


• Award-winning sailing features like SailSteer, LayLines, Routes and StartLine


• Compatible with C-MAP® DISCOVER® X and REVEAL® X charts


• C-MAP®-powered Safety Alerts


• Full integration with HALO® radars, B&G® Sailing Processors, Autopilots, Triton2 and Nemesis® instruments, wind sensors and more


• B&G® App integration with 12 months premium subscription when registering a C-MAP® X Chart


• Wi-Fi 5, Gigabit Ethernet & NMEA 2000® networking


• Support for up to four IP video cameras


• Set-up Wizard to get you up and running quickly


• Warrany Period - 2 Years

C-MAP® X-Gen charts deliver the cutting-edge of navigation. Explore the stunning DISCOVER® X charts, zooming in and out in an instant. Discover new spots with incredible local detail. And explore after dark with a dedicated night mode. An upgrade to the stunning REVEAL® X adds incredible shaded relief and satellite imagery to your arsenal.

The X-Gen charts also unlock a host of ground-breaking features, such as the revolutionary C-MAP® Safety Alerts — built to automatically alert boaters to hazards up ahead, from shallow waters to buoys.

In an industry first — the X-Chart Manager lets users manage C-MAP® chart updates and upgrades directly from the device, with the ability to choose custom areas for a near-instant download. And there are plenty of updates, because X-Gen charts are always evolving, adding new details and features all the time.

Our latest OS has integration at its core, with seamless networking across the entire boat. Connect to HALO® radars for superior safety and situational awareness. Unlock next-level performance with our Triton Edge and Hercules sailing processors. And bring the very best data to the helm with our famous wind sensors, which feed into our range of Triton and Nemesis® instruments.

Specifications

Autopilot

Manouevres / Turn Patterns
U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth

Steering Modes
Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav

Cartography

Chart Format
C-MAP Tile (CMT) Discover X, Reveal X C-MAP Tile (CMT) Reveal X

Charts Supported
C-MAP Discover X, C-MAP Reveal X. Third party charts CMOR, StikeLines (check with provider for available content)

Connectivity

Bluetooth
Bluetooth 4.0 with support for Bluetooth Classic (currently not used)

Ethernet
1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin)

NMEA 0183
No

NMEA 2000
1 x NMEA 2000 Micro-C port, 1 LEN

PC Connectivity
No

Video
Video In, Video out via USB. IPCAM-1, FLIR 232/300 series. ONVIF IP Camera IP Cameras: IPCAM-1, FLIR 232/300 series. ONVIF IP Cameras

WiFi
Wi-Fi 5 (IEEE 802.11ax)

Display

Backlight Color
White

Resolution
1280 x 800

Screen Brightness
Less than 200 nits

Size and Type
1 inch SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses

Viewing Angles
80° top/bottom, 80° left/right

Electrical

Power Consumption, max.
40 W

Recommended Fuse Rating
5 A

Supply Voltage
12/24 V DC (10 - 31.2 V DC min - max)

Humidity
IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)

Environment

Operating Temperature Range
-15°C to 55°C (5°F to 131°F)

Shock and Vibration
100,000 cycles of 20 G

Storage Temperature Range
-20°C to 60°C (-4°F to 140°F)

Waterproof rating
IPX6 and IPX7

GPS

Correction
10 Hz high speed update (internal)

GPS Receiver Channels
32 Channels

Position Accuracy
Horizontal Accuracy 3 m (9.8 ft)

Update rate
10Hz

MFD

AIS
Receive AIS data over NMEA 2000

Autopilot
NAC-1, NAC-2, NAC3, NAC-D compatible

Cartography included
Discover X chart card of North America

Cartography supported
C-MAP Discover X, C-MAP Reveal X. Third party charts CMOR, StikeLines (check with provider for available content)

Digital Switching
Czone / DDS

External Storage
2x (microSD®, SDHC®), 1 x USB port

GPS
10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS. SBAS (WAAS)

Radar (inc. compatibility)
Halo dome radars, Simrad Halo open array radars, 3G/4G, Simrad 10/25 kW HD Radars

Sonar (inc. compatibility)
No built-in Echosounder ports. Compaible with Network Sonar modules S3100, S5100, Other MFDs with echosounder ports

Weather
Sirius XM via WM4 module (USA only)

Waypoints, Routes, Tracks
10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: Zeus3, Zeus3 GH maximums will apply if on the same network

Compass Safe Distance - Metric, imperial
65 cm (2.1 ft)

Physical

Dimensions (W x H x D)
Display only: 338.9 mm x 208.4 mm x 84.8 mm (13.34 in x 8.20 in x 3.34 in) With bracket: 367.8 mm x 232.8 mm x 84.8 mm (14.48 in x 9.17 in x 3.34 in)

Mounting Type
Bracket mount (bracket supplied). Rear mount (brackets supplied)

Weight
2.8 kg (6.17 lb)
