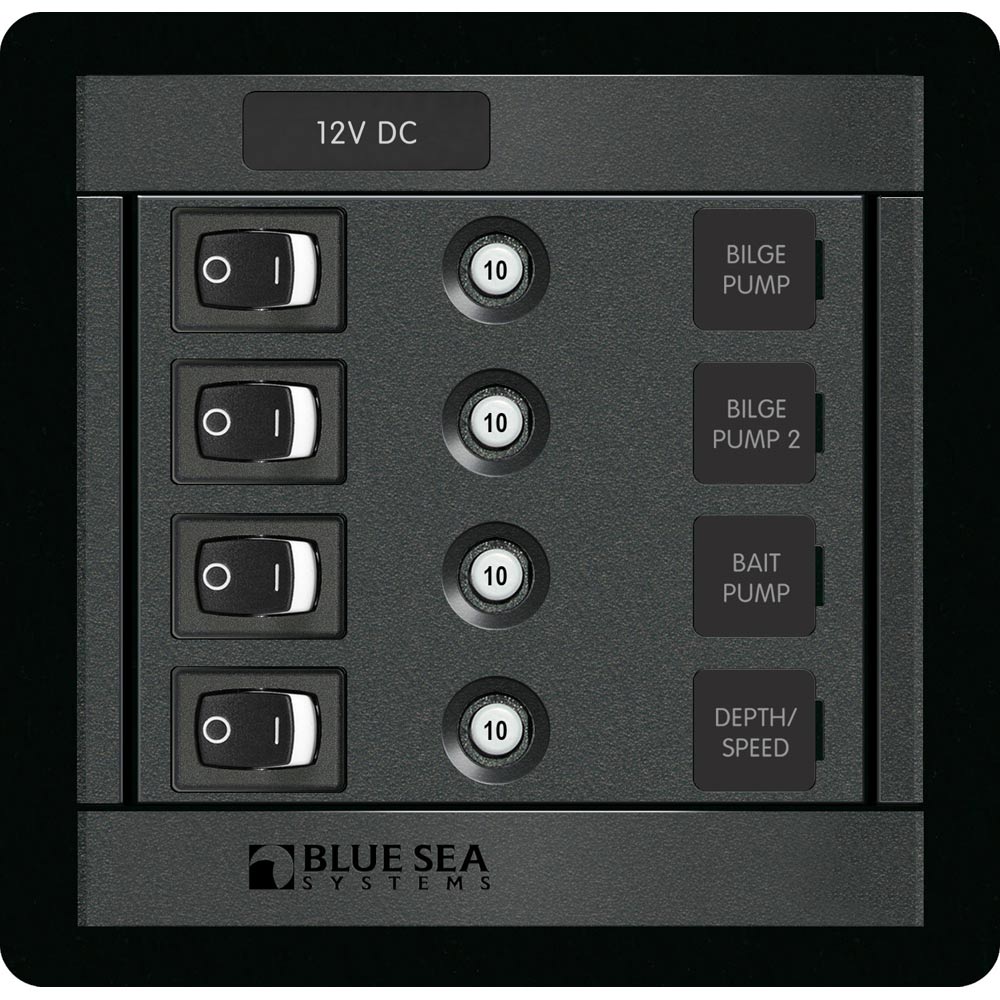

Blue Sea 1455 4 Position Switch CLB Square

4 Position Switch CLB Square

Provides circuit protection and switching in a compact and economical panel

• Available with voltmeters and ammeters




• Includes 4205-Square Format Label Set

Specifications:

•
  Positions: 4




•
  Nominal Voltage: 12V DC




•
  Maximum Amperage*: 40A




•
  Height: 4.75" (120.65mm)




•
  Width: 4.88" (123.95mm)




•
  Depth: 3.50" (88.9mm)




•
  Weight: 1.05lb (0.48kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(4) - 7054 - Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps
(4) - 7480 - Rocker Switch SPST - ON-OFF
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
