Blue Sea 5024 4-Gang Battery Terminal Fuse Block ST ATO/ATC and Cover

Blue Sea 5024 4-Gang Battery Terminal Fuse Block ST ATO/ATC and Cover

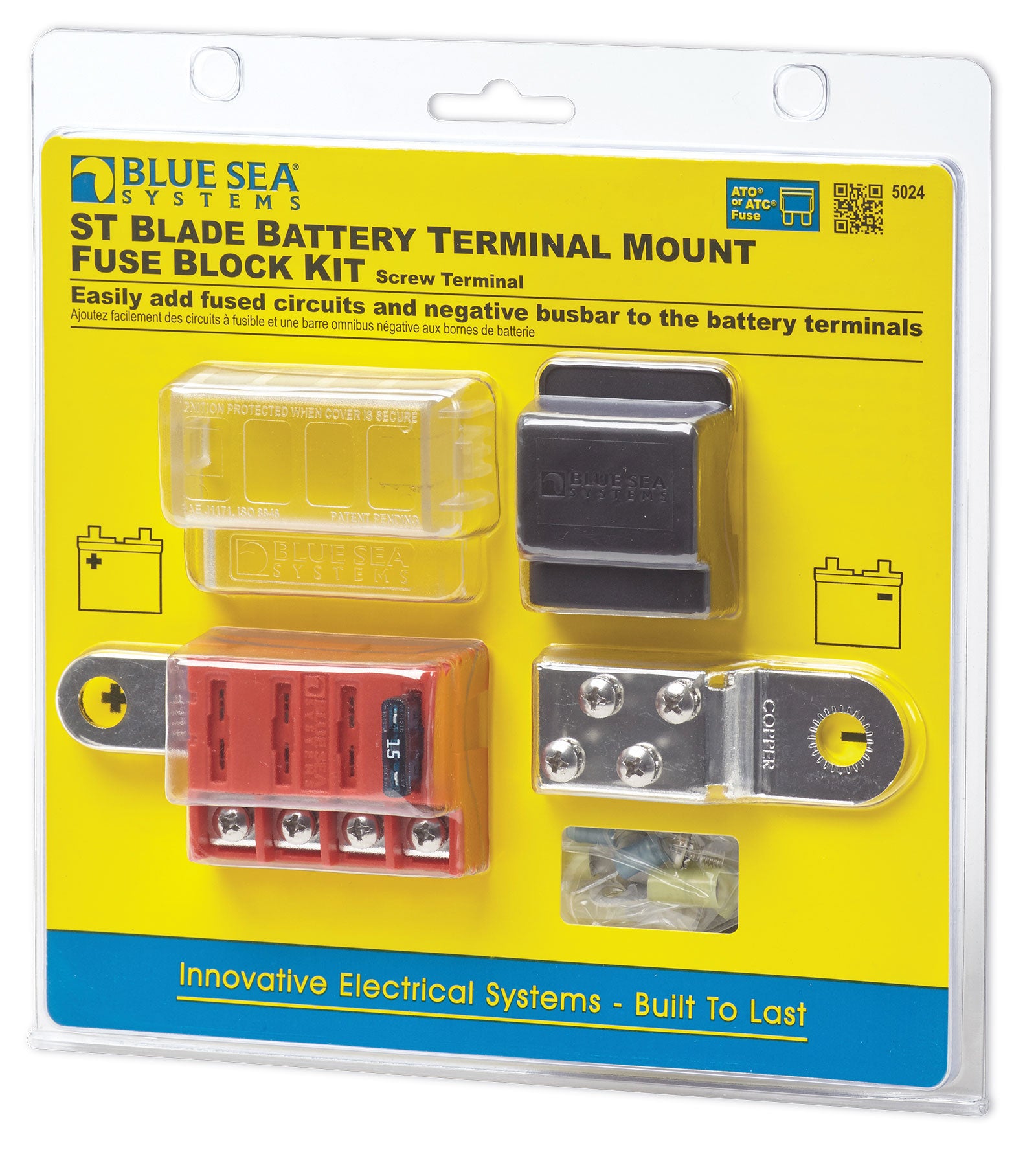

Blue Sea Systems ST Blade Battery Terminal Mount Fuse Block Kit

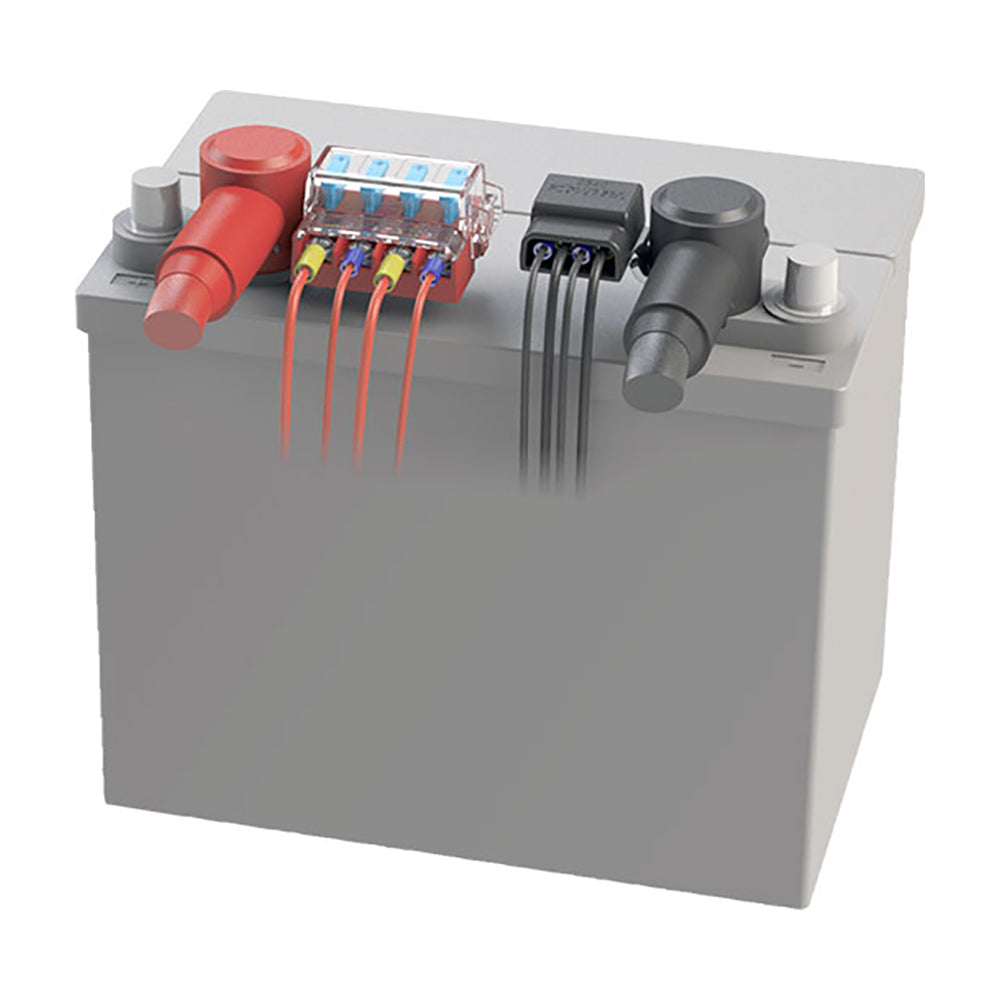

• Mounts on the battery terminal stud


• Screw terminals for securing wires


• Nylon insulated ring terminals included for each screw terminal


• Accepts small format circuit labels


• Insulating cover meets ABYC/USCG insulation requirements


• Ignition Protected—meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment

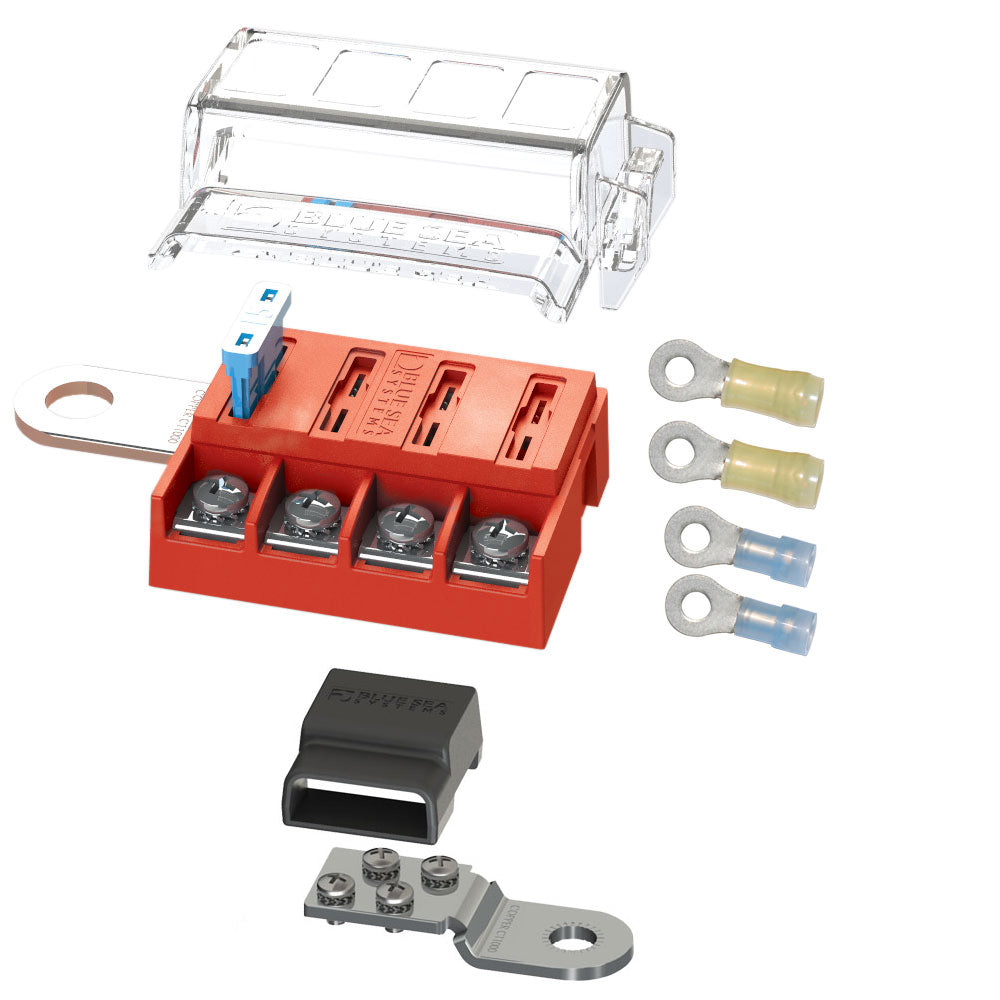

• Includes a 4-circuit negative busbar


• Includes write on labels


• Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals

Circuits
4

Maximum Amperage
100A per block
30A per circuit

Maximum Voltage
32V DC

Bus Material
Tin-Plater Copper C11000

Mounting Hole
3/8" (M10) Stud

Screw Terminal Torque
18 in-lb (2.03 Nm)

Screw Terminal Type
#8-32

Weight
0.50lb (0.23 kg)
