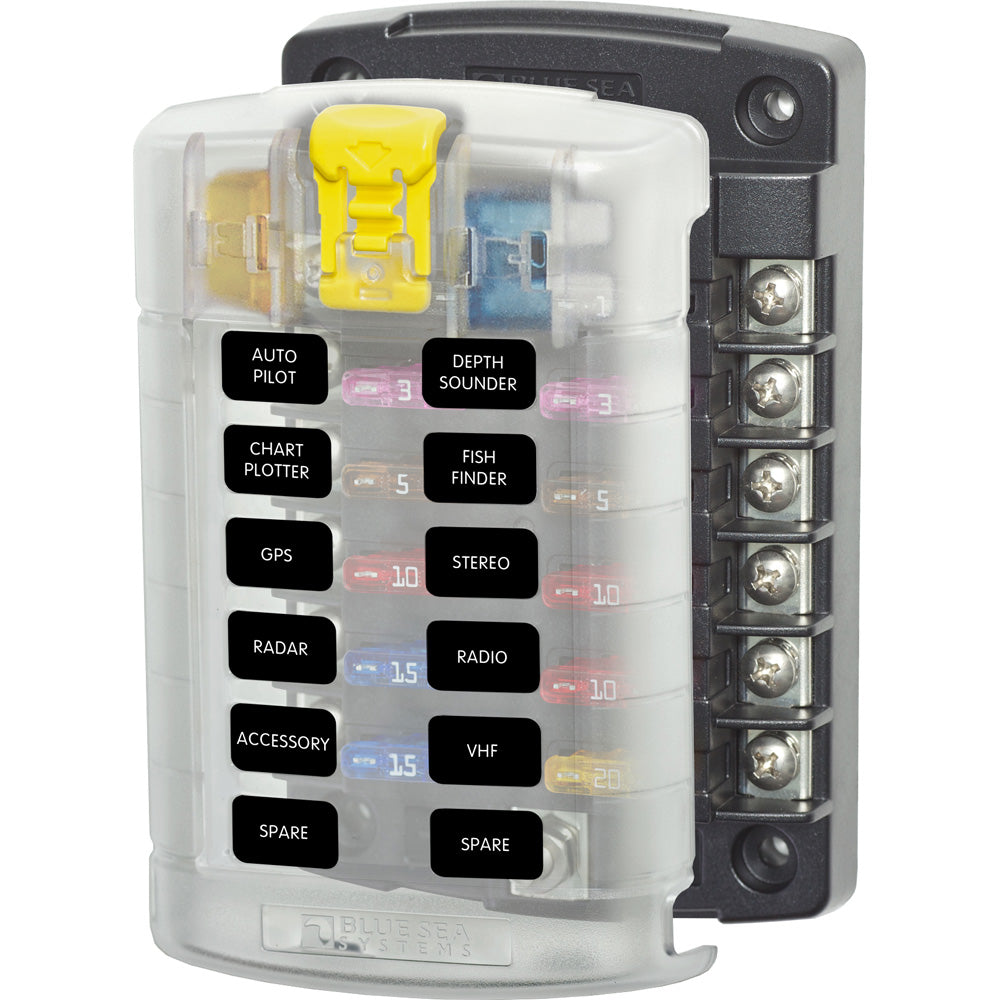

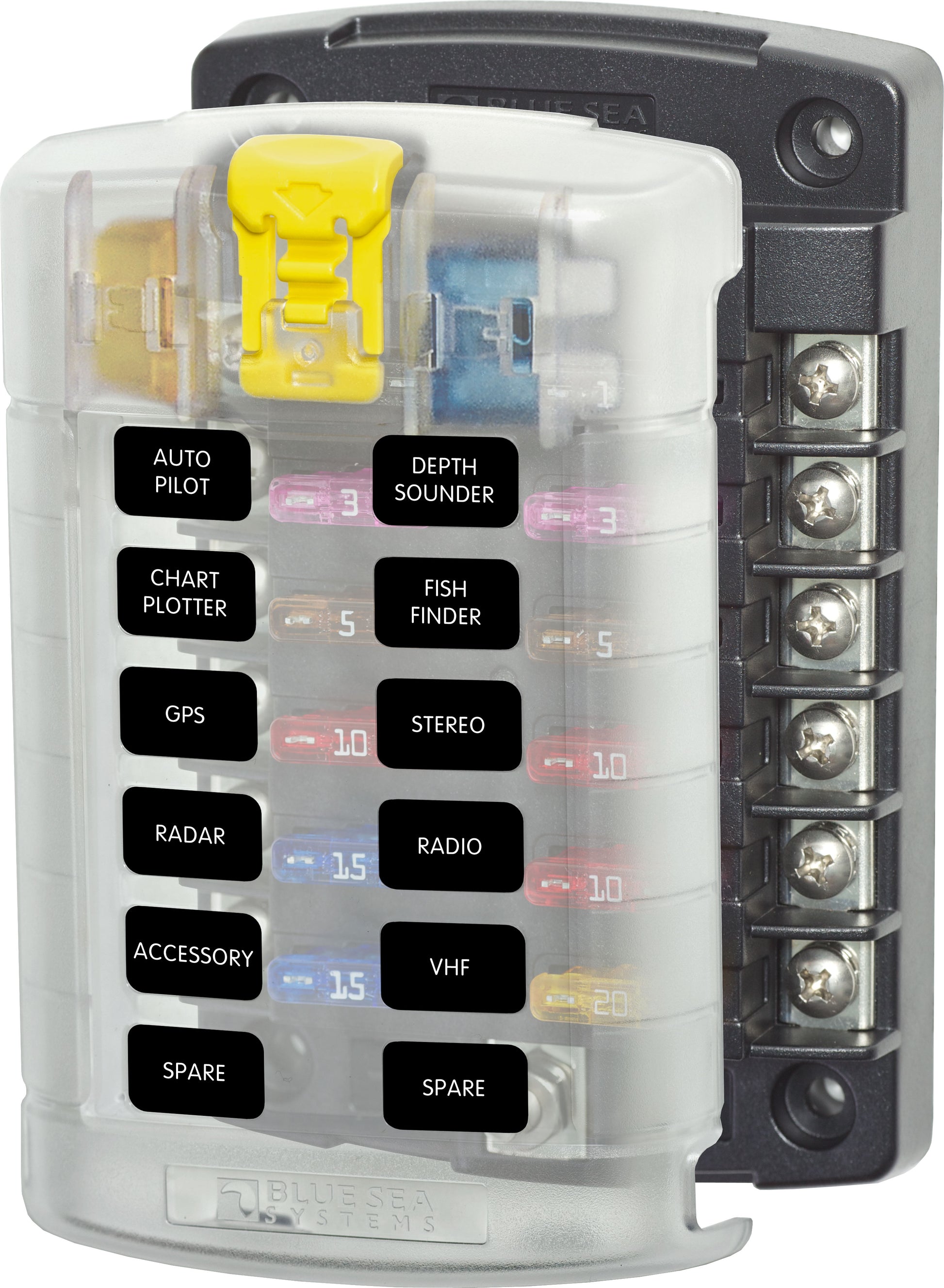

Blue Sea 5029 12-Gang Fuse Block ST ATO/ATC with Cover

Blue Sea 5029 12-Gang Fuse Block ST ATO/ATC with Cover

Blue Sea Systems ST Blade Fuse Block - 12 Circuits with Cover

• Positive distribution bus with #10-32 stud


• Can be used for 24-hour circuits


• Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels for circuit identification


• Fuse blocks with covers include 20 write-on circuit labels


• Tin-plated copper buses and fuse clips


• Accepts ring or snap fork type terminals


• Accepts ATO® and ATC® fast acting blade fuses


• Fuses sold separately

Circuits
12

Maximum Amperage
100A per block
30A per circuit

Maximum Voltage
32V DC

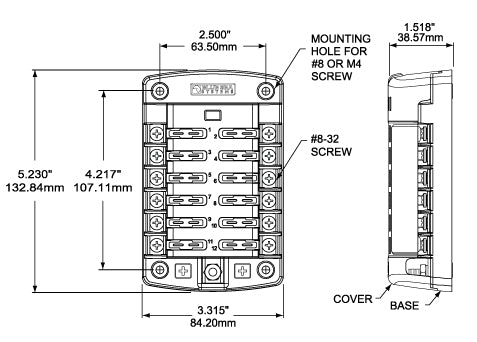

Mounting
#8 Screw (M4)

Positive Bus
#10-32 Stud

Recommended Torque
24 in-lb (2.71 N m)

Screw Terminal Torque
18 in-lb (2.03 Nm)

Screw Terminal Type
#8-32 Screws with captive star lock washer
