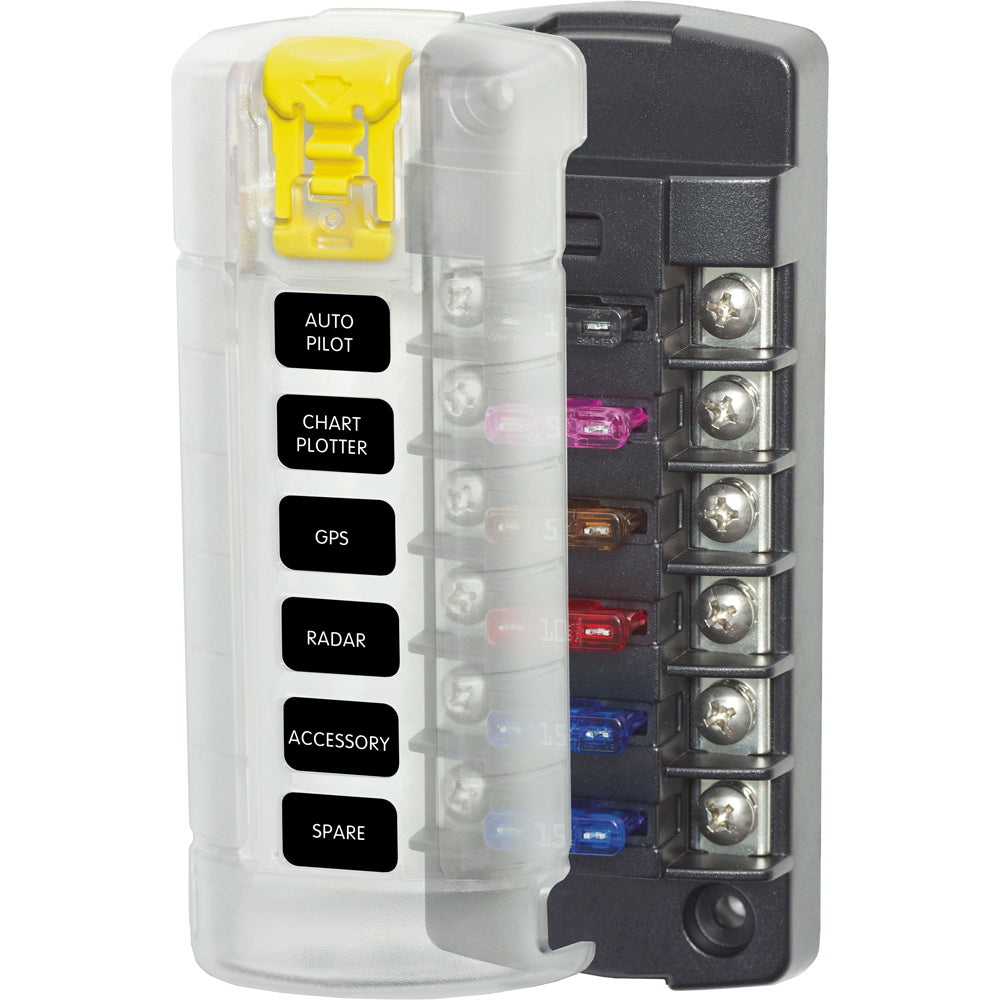

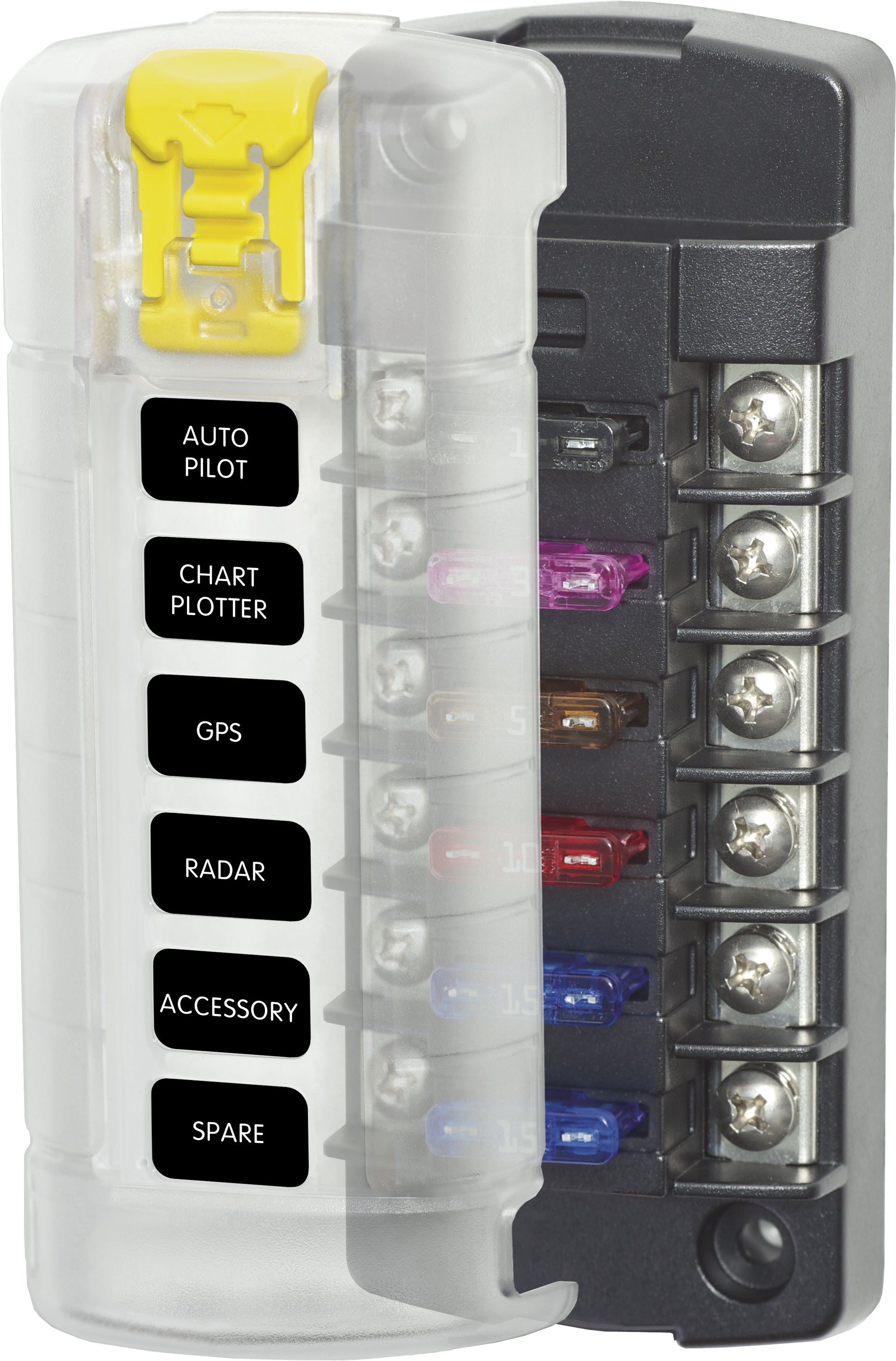

Blue Sea 5035 6-Gang Fuse Block ST ATO/ATC Independent Circuits and Cover

Blue Sea 5035 6-Gang Fuse Block ST ATO/ATC Independent Circuits and Cover

Blue Sea Systems ST Blade Fuse Block - 6 Independent Circuits with Cover

• Corrosion resistant, tin-plated copper fuse clips reduce heat and improve the efficiency of the electrical system


• Clear insulating cover with label recesses accepts Small Format Labels


• Spare fuse holder in cover


• Accepts ring or snap fork type terminals


• Includes two terminal block jumpers

Circuits
6

Maximum Amperage
30A per circuit
40A per jumped circuit group

Maximum Voltage
32V DC

Mounting
#8 Screw (M4)

Screw Terminal Torque
18 in-lb (2.03 Nm)

Screw Terminal Type
#8-32 with Captive Star Lockwasher
