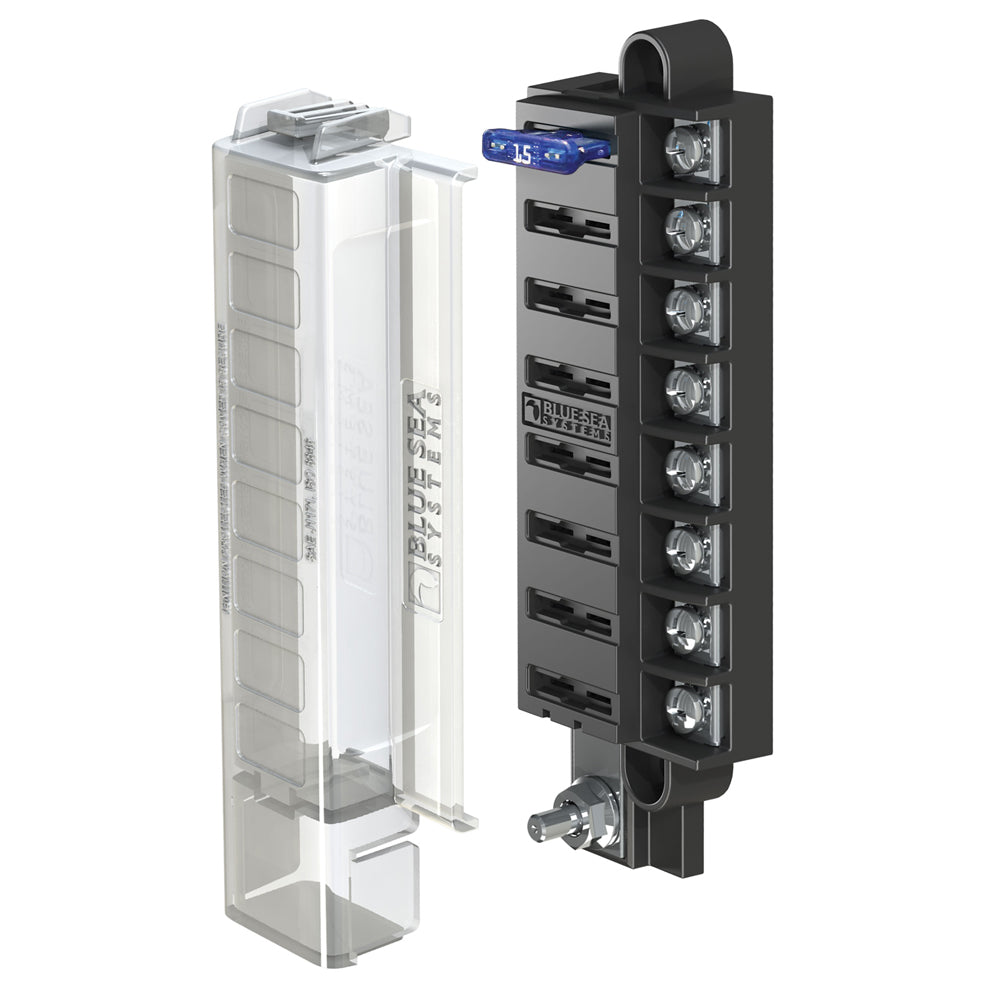

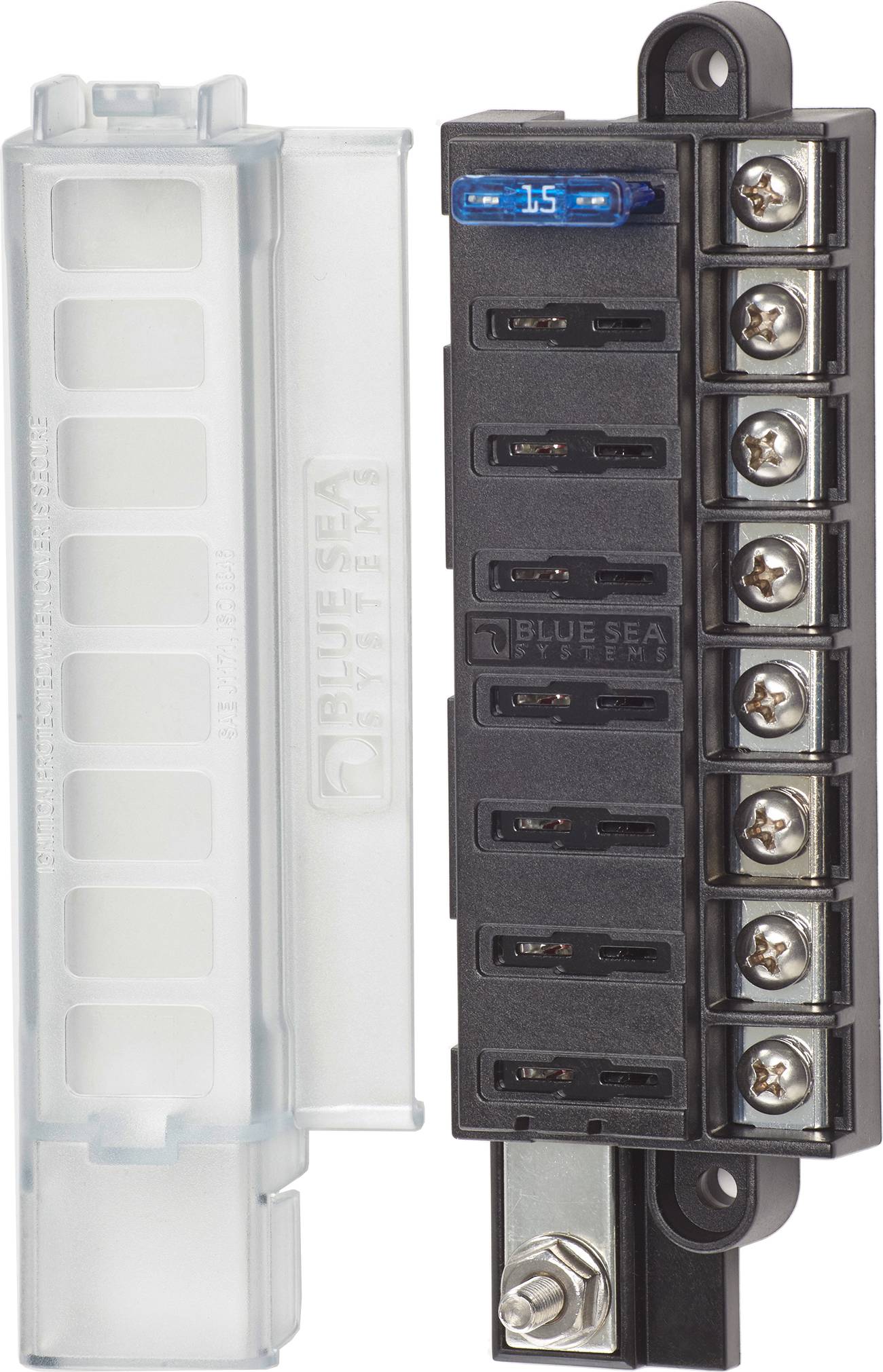

Blue Sea 5046 8-Circuit Fuse Block ST ATO/ATC with Cover

Blue Sea 5046 8-Circuit Fuse Block ST ATO/ATC with Cover

Blue Sea Systems ST Blade Compact Fuse Blocks - 8 Circuits

• Ignition protected when cover is secure —meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment


• Single side design allows wire entry from one side to minimize footprint


• Insulating cover meets ABYC/USCG insulation requirements


• Tin-plated copper buses and fuse clips


• Accepts ring or snap fork type terminals


• Includes 8 write-on circuit labels


• Fuses sold separately

Circuits
8

Maximum Amperage
100A per block
30A per circuit

Maximum Voltage
32V DC

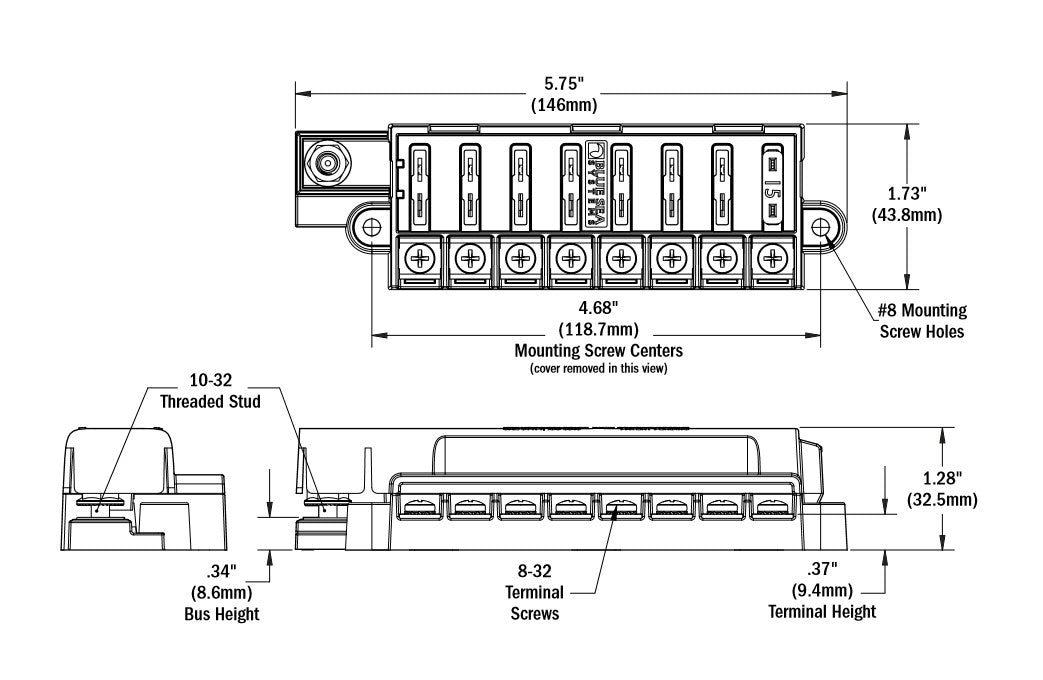

Mounting
#8 Screw (M4)

Terminal Stud Torque
24 in-lb (2.71 Nm)

Screw Terminal Torque
18 in-lb (2.03 Nm)

Screw Terminal Type
#8-32 Scews with captive star lock washer

Terminal Stud Size
#10-32
