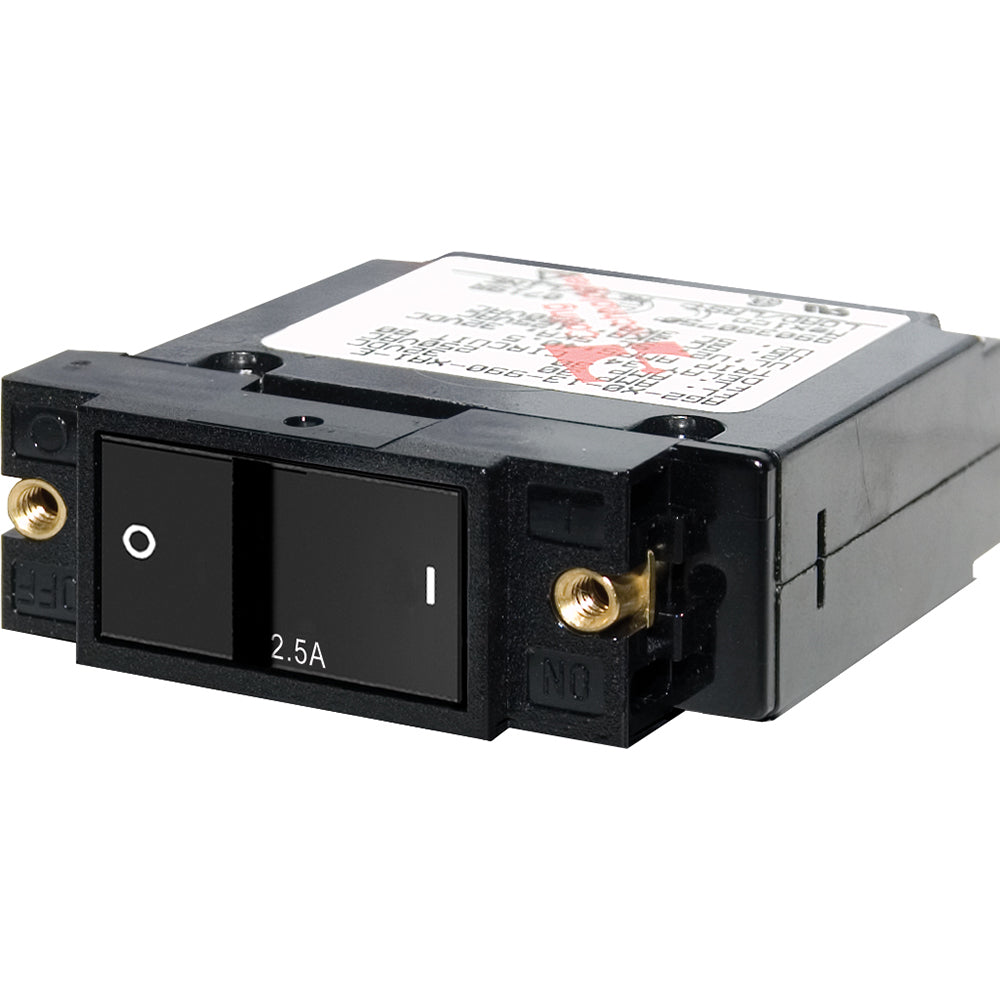

Blue Sea 7399 A-Series Flat Rocker Circuit Breaker - Single Pole - 2.5A

A-Series Flat Rocker Circuit Breaker - Single Pole - 2.5A

• Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching




• Color actuator indicates "OFF" position




• "Trip Free" design cannot be held "ON" during fault current condition




• 2 different actuator styles available




• Prevents accidental switching of 24 hour circuits




• International ON/OFF symbols support vertical or horizontal mounting

• Amperage: 2.5A DC / 2.5A AC




• Actuator Style: Flat Rocker




• Poles: 1




• Max Voltage:250V AC / 32V DC




• Circuit Breaker Type: Magnetic Hydraulic - Trip Free




• Interrupt Capacity: 3000A @ 125V AC / 1500A @ 250V AC / 5000A @ 32V DC




• Minimum Operating Temperature: -40° C


• Maximum Operating Temperature: 85° C


• Mounting Screw: #6-32 Stainless Steel


• Mounting Screw Torque: 6 in-lb (0.68 Nm)


• Screw Terminal Torque 14 in-lb (1.58 Nm)


• Switching Cycles: 10000


• Terminal Screw: #10-32 Stainless Steel


• Weight: 0.21lb (0.1 kg)
