Blue Sea Systems

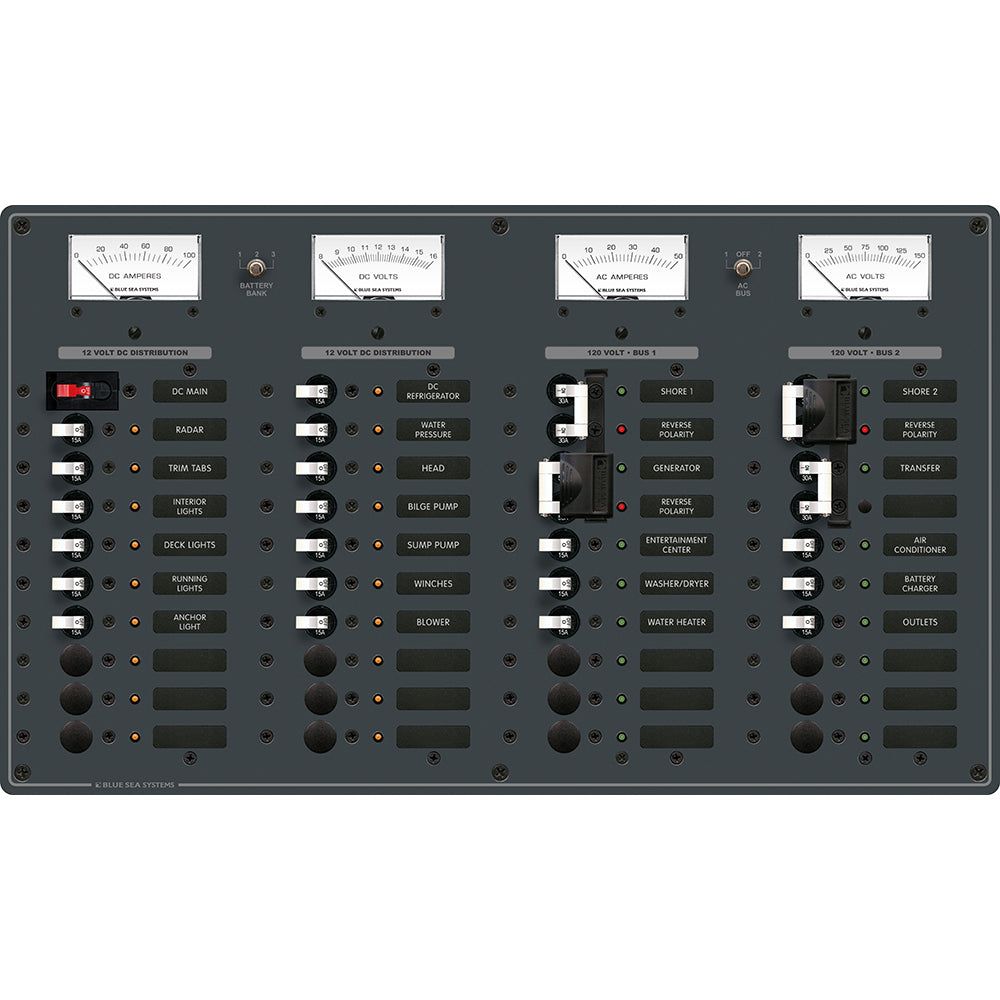

Blue Sea 8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches

Blue Sea 8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches

Regular price $1,613.95 USD
Regular price $1,613.95 USD Sale price $1,613.95 USD
Sale Sold out
Shipping calculated at checkout.

8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches

Features:


  • Includes set of 30 common AC and 30 common DC labels

  • All AC and DC buses installed, fully pre-wired

  • Label backlighting pre-installed

  • All LEDs installed

  • Maximum panel Amperage

    • 100 Amperes DC

    • 50 Amperes AC



AC Features:


  • Two separate AC load groups with transfer switch to combine into one load group

  • Switch allows Ammeter and Voltmeter to read either AC load group

  • Reverse polarity indicators on both AC load groups

  • Ready for installation of optional 4031 AC Isolation Cover

  • 9353, 0-150 Volt AC Voltmeter

  • 9630, 0-50 Amp AC Ammeter

DC Features:


  • 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits

  • 8003, 8-16 Volt DC Voltmeter

  • 8017, 0-100 Amp DC Ammeter

Specifications:


  • AC Positions: Source Selectors +12

  • DC Positions: Main +19

  • 120 Volts AC

  • 12 Volts DC

  • (3) 30A - (1) 50A - (6) 15A AC Circuit Breakers

  • (1) 100A - (13) 15A DC Circuit Breakers

*Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
