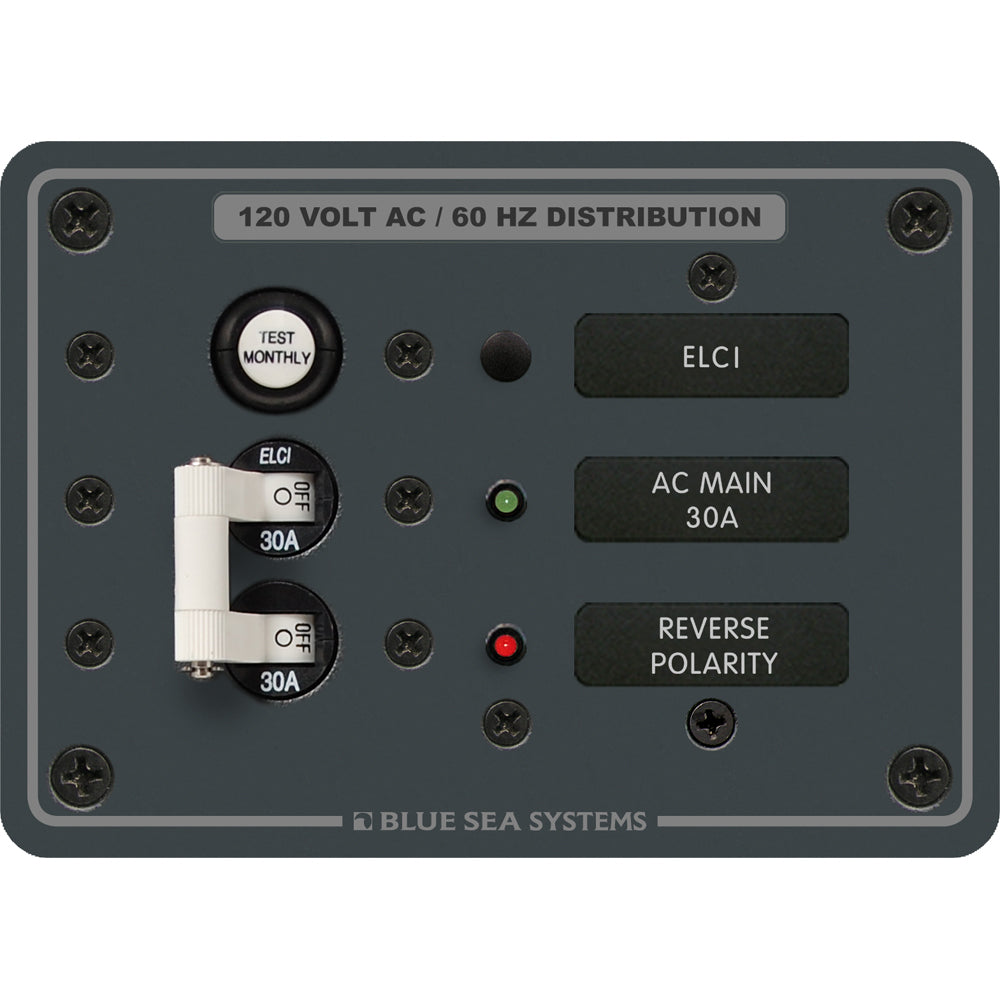

Blue Sea 8100 ELCI GFCI Panel

ELCI Main 30A Double Pole

• One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA




• ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection




• Red " Reverse Polarity" LED




• All circuit label positions are backlit




• "ON" indicating LEDs

Specifications
Nominal Voltage 120V AC
Leakage Trip Amps 30mA
Height 5.25" (133.35mm)
Width 3.75" (95.25mm)
Depth 3.50" (88.9mm)
Weight 2.25lb (1.02kg)
