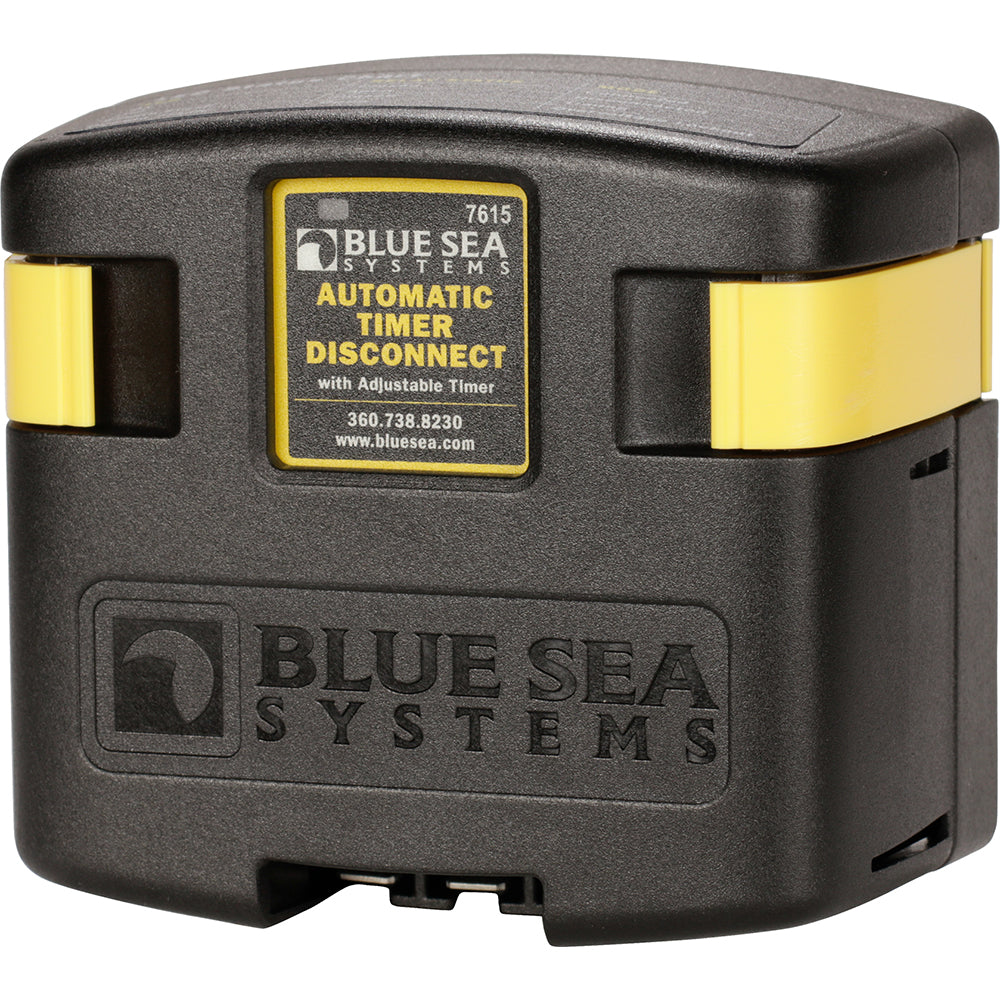

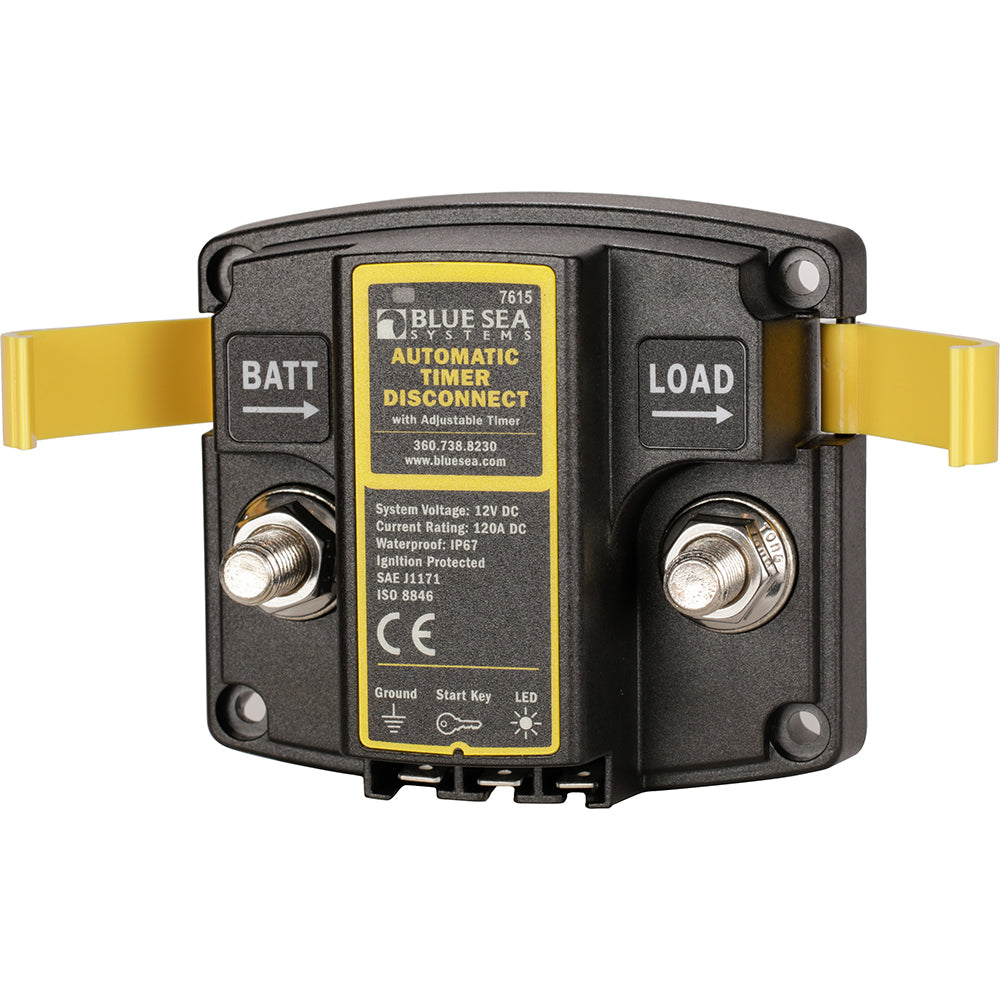

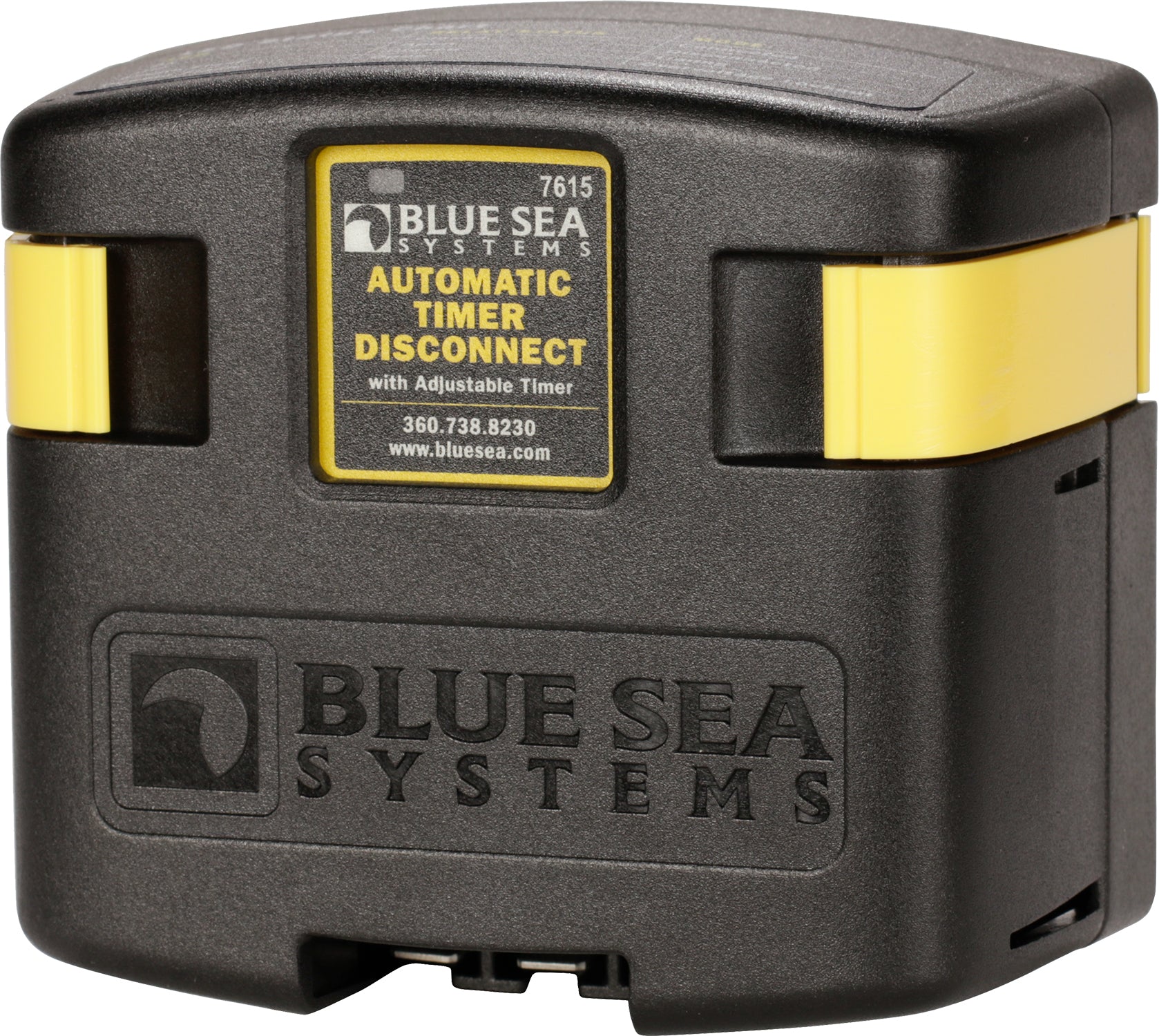

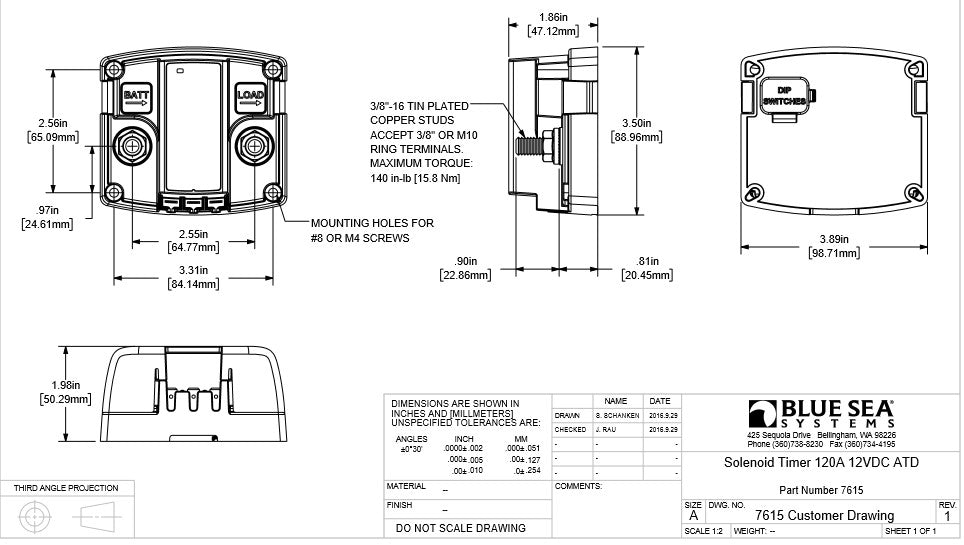

Blue Sea Automatic Timer Disconnect 12vDC

Blue Sea Automatic Timer Disconnect 12vDC

Blue Sea Systems

• Timer Disconnect - 12V signal triggers relay to connect battery power to devices


• Timer Disconnect - When signal is removed the timer is activated and will disconnect devices after a preset time


• Timer Disconnect - Timer ranges from 15 minutes to 4 hours


• Low Voltage Disconnect -12V signal triggers relay to connect battery power to devices.


• After 12V signal is removed, device senses low battery voltage and automatically disconnects devices.


• Low voltage setting can be used in conjunction with Timer Disconnect. Low voltage will disconnect devices prior to preset time to preserve battery power

Nominal Voltage
12V DC

Amperage Operating Current
175mA (closed)
4mA (open)

Terminal Stud Torque
140 in-lb (15.82 Nm)

Continuous Rating
120A

Intermittent Rating
210A (5 Min)

Cable Size to Meet Ratings
1 AWG (50mm )

Charge Sense Connect
13.0V (3 sec)

Charge Sense Disconnect
12.75V (10 sec)

Disconnect Time
5 sec, 15 min, 30 min, 1 hr, 1.5 hr, 2hr, or 4hr

Input Voltage Range
9.5-16V

Low Voltage Disconnect
11.0V (10 sec)
11.5V (10 sec)
12.0V (10 sec)

Maximum Cable Size
1/0 AWG (50mm )

Stud Material
Tinned Copper

Terminal Ring Diameter Clearance
1.12in (28.45 mm)

Terminal Stud Size
3/8"-16 (M10)

Over Voltage Lockout
16.0V (5 sec)
