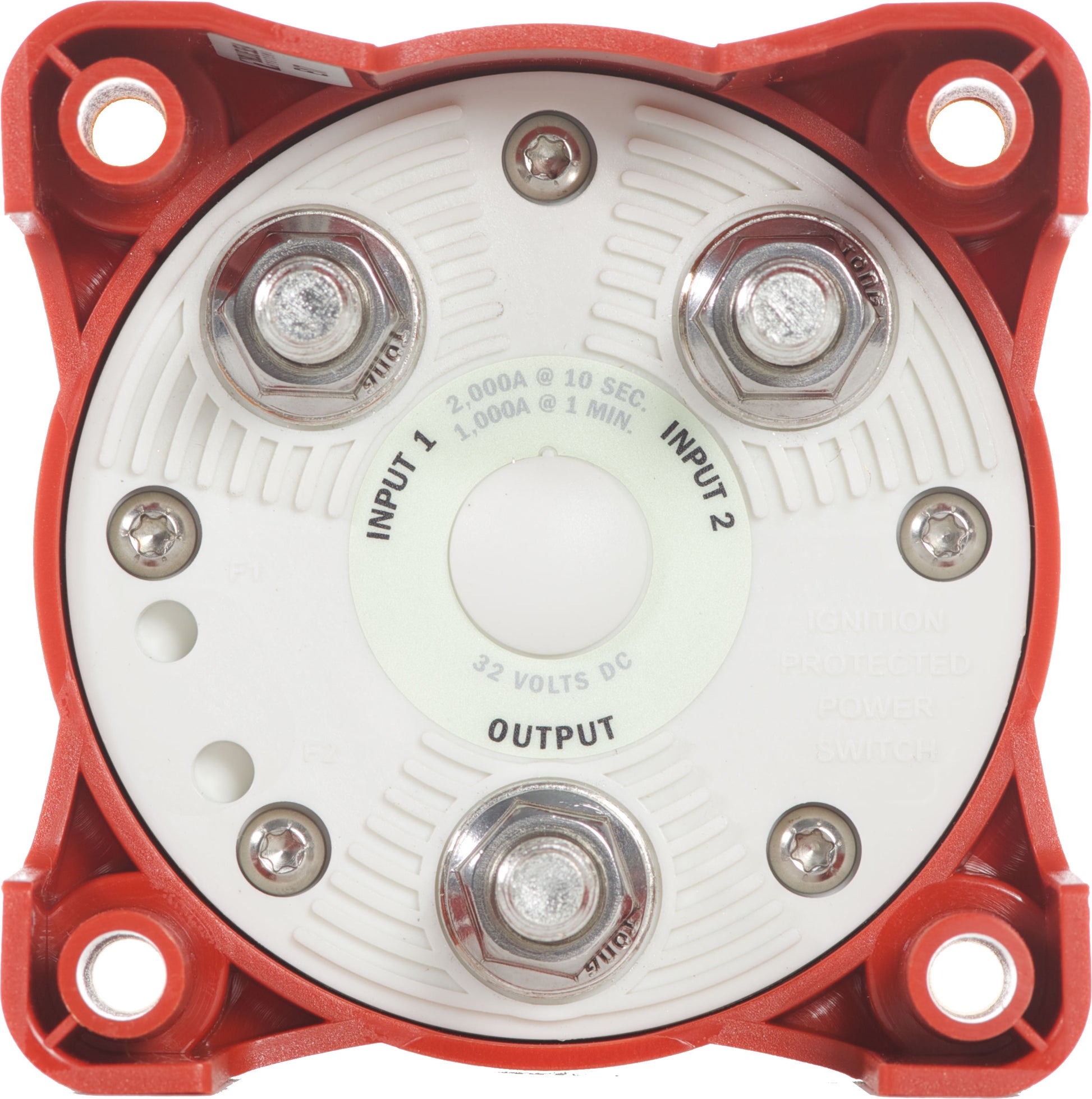

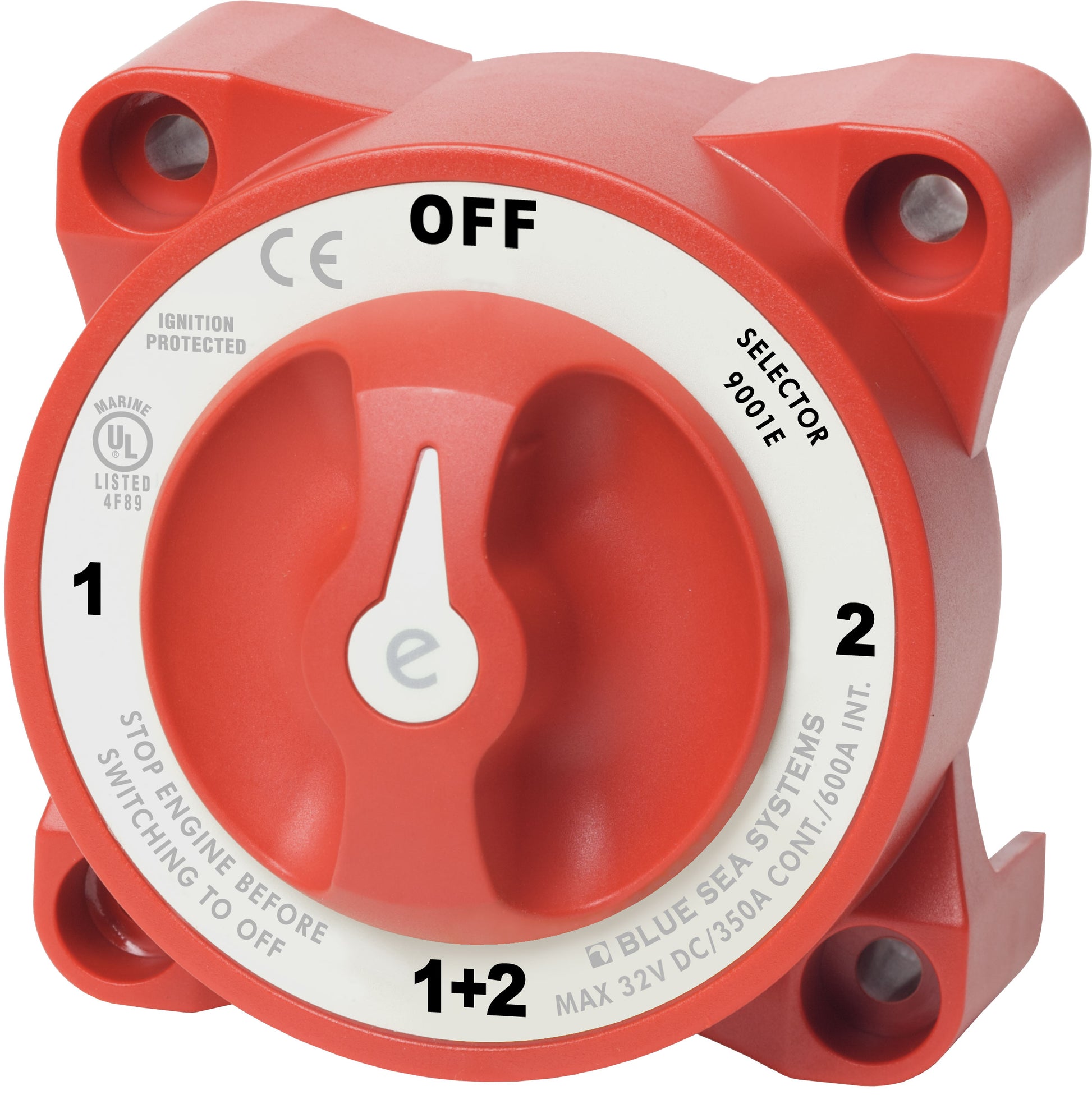

Blue Sea Systems e-Series Selector Battery Switch

• 350 Amps continuous rating for inboard gasoline or diesel engines.


• Tin-plated copper studs for maximum conductivity and corrosion resistance


• Accepts up to 4/0 AWG battery cables


• Studs accepts 3/8" (M10) ring terminals


• 7/8" (22mm) stud length accepts multiple cable terminals


• Blue Sea Systems one-piece terminal stud design never loosens over time


• Fits most Perko and Guest low amperage battery switch hole patterns


• Case design allows surface or rear panel mounting


• Tactile indicator conveys knob position by feel


• Waterproof — rated IP66 from water projected in powerful jets


• Ignition protected—safe for installation aboard gasoline powered boats


• Make-before-break contact design allows switching without power interruption

Switches isolated battery banks to all loads or combines battery banks to all loads

Switch Type
Selector 4 Position

Color
Red

Switch Positions
4

Battery Combine
Yes

Alternator Field Disconnect
No

Maximum Voltage
32V DC

Terminal Stud Torque
140 in-lb (15.82 Nm)

Continuous Rating
350A

Intermittent Rating
600A (5 min)

Cranking Rating 30 sec
1200A per circuit

Battery Inputs
2

Cable Clearance For 4/0 AWG Cables
1.10in (27.94 mm)

Cable Size to Meet Ratings
4/0 AWG (120mm )

Mounting Holes
Accept 1/4" (M6) Screw

Stud Material
Tinned Copper

Terminal Stud Size
3/8" - 16 (M10)
