Blue Sea E-Series Battery Switch On-Off Dual Circuit

Blue Sea E-Series Battery Switch On-Off Dual Circuit

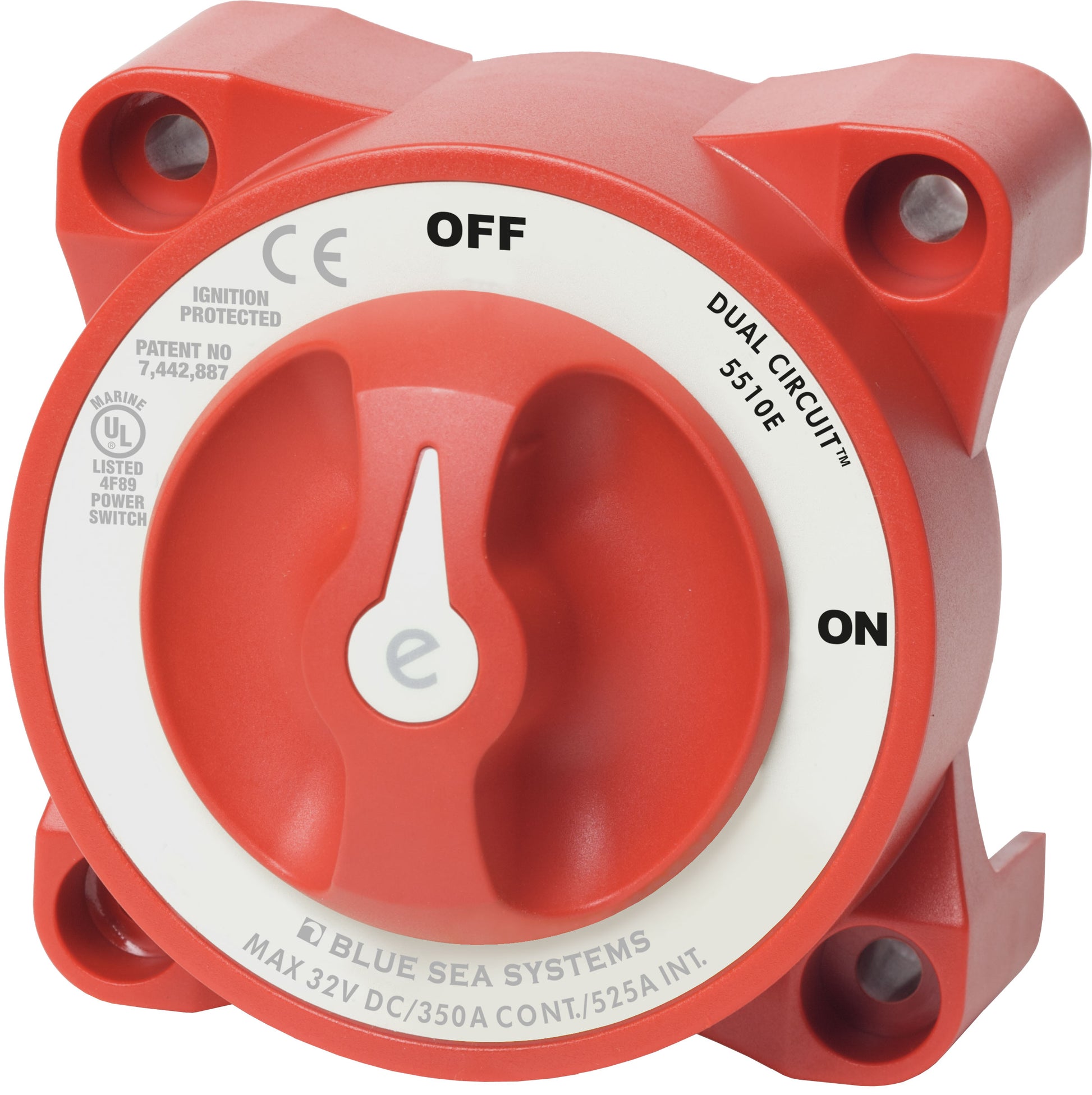

Blue Sea Systems e-Series Dual Circuit Battery Switch

• 350 Amps continuous rating for inboard gasoline or diesel engines.

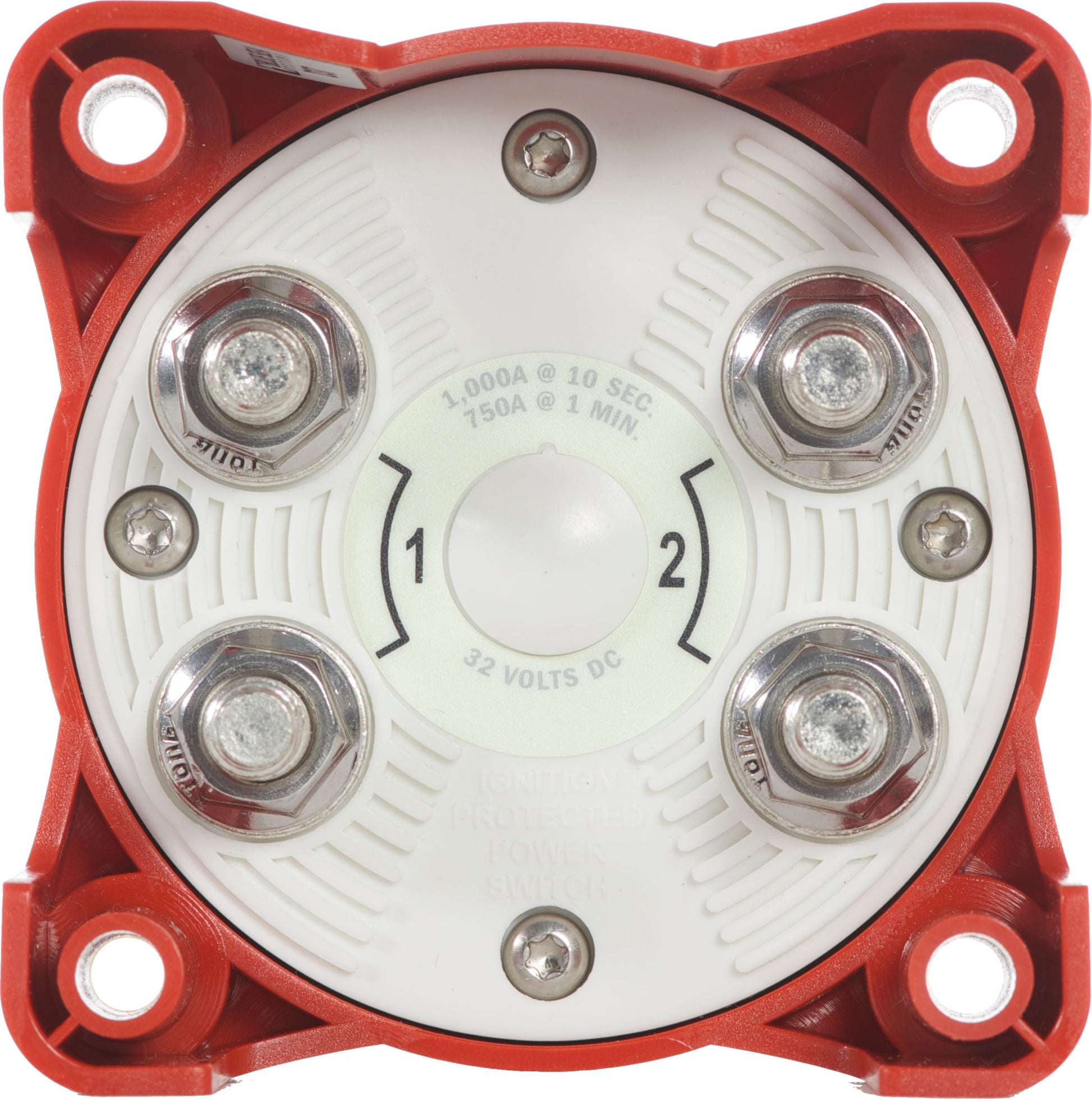

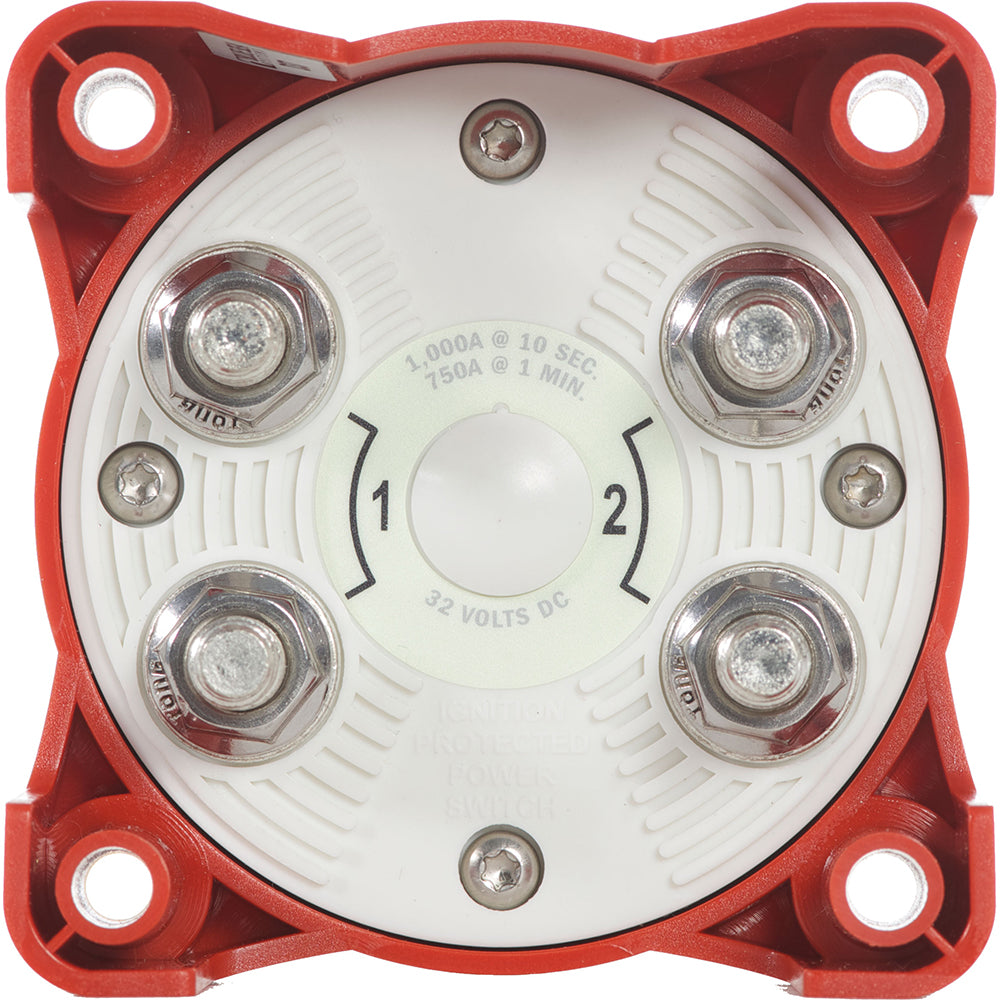

• Tin-plated copper studs for maximum conductivity and corrosion resistance


• Accepts up to 4/0 AWG battery cables


• Studs accepts 3/8" (M10) ring terminals


• 7/8" (22mm) stud length accepts multiple cable terminals


• Blue Sea Systems one-piece terminal stud design never loosens over time


• Fits most Perko and Guest low amperage battery switch hole patterns

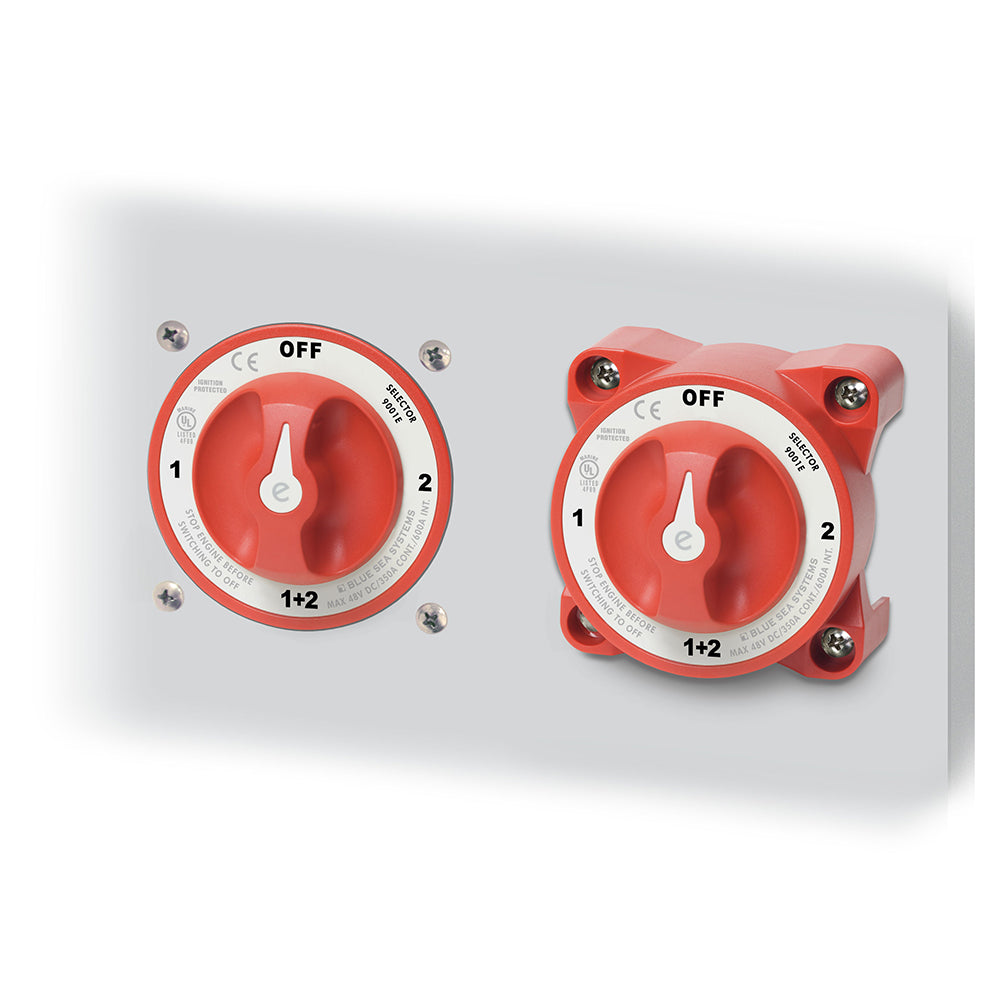

• Case design allows surface, rear, or front panel mounting options


• Tactile indicator conveys knob position by feel


• Waterproof — rated IP66 from water projected in powerful jets


• Ignition protected—safe for installation aboard gasoline powered boats

Switch Type
Dual Circuit

Color
Red

Switch Positions
2

Battery Combine
No

Alternator Field Disconnect
No

Maximum Voltage
32V DC

Terminal Stud Torque
140 in-lb (15.82 Nm)

Continuous Rating
350A

Intermittent Rating
525A (5 min)

Cranking Rating 30 sec
700A per circuit

Battery Inputs
2

Cable Clearance For 4/0 AWG Cables
1.10in (27.94 mm)

Cable Size to Meet Ratings
4/0 AWG (120mm )

Mounting Holes
Accept 1/4" (M6) Screw

Stud Material
Tinned Copper

Terminal Stud Size
3/8" - 16 (M10)
