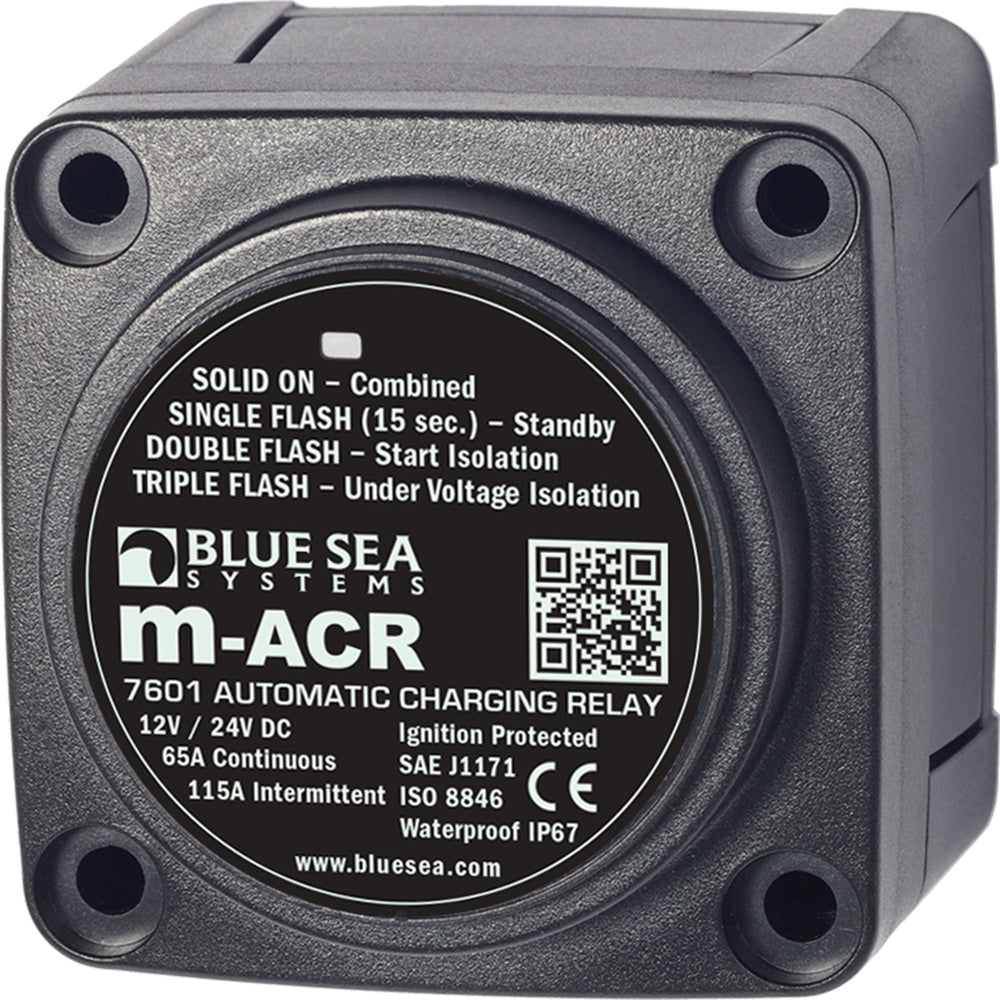

Blue Sea Systems m-Series Automatic Charging Relay - 12/24V DC 65A

• Senses charging on two battery banks


• Pull off and snap on insulating cover


• LED indicates ACR status


• 1 ?4" x .032" male quick connect terminal for ground

The Mini Automatic Charging Relay (M-ACR) is designed to manage the charging current from alternators up to 65 Amps found on most outboards and many inboard engines.

Start Isolation (SI) protects sensitive electronics by temporarily isolating house loads from the engine circuit during engine cranking, protecting the house circuit from voltage sags and spikes.

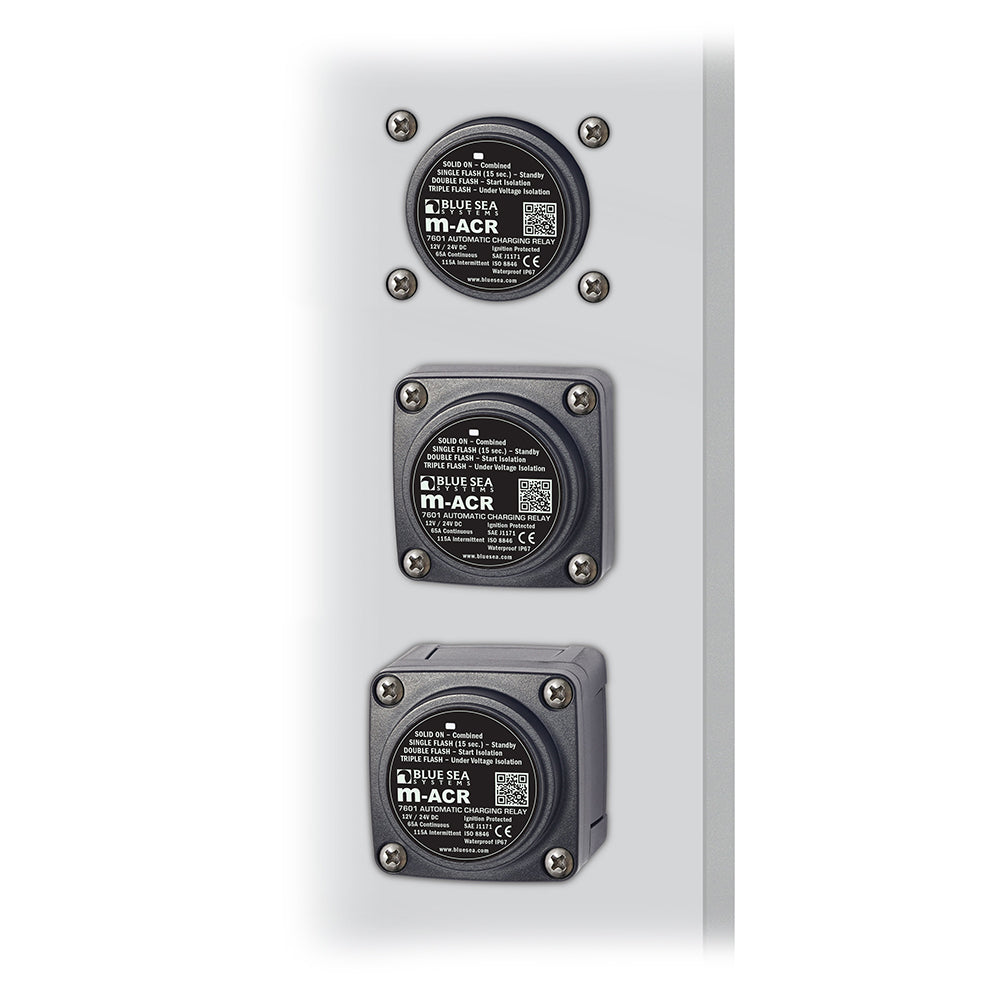

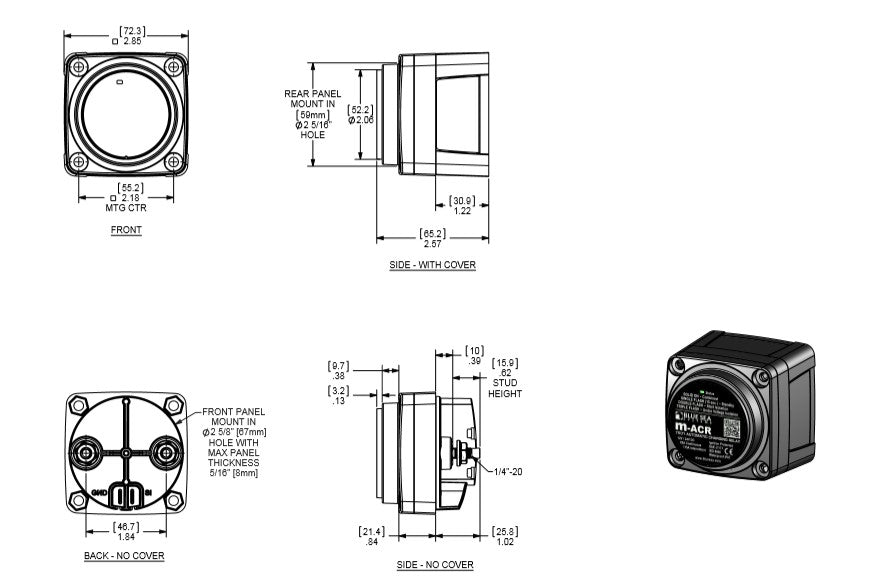

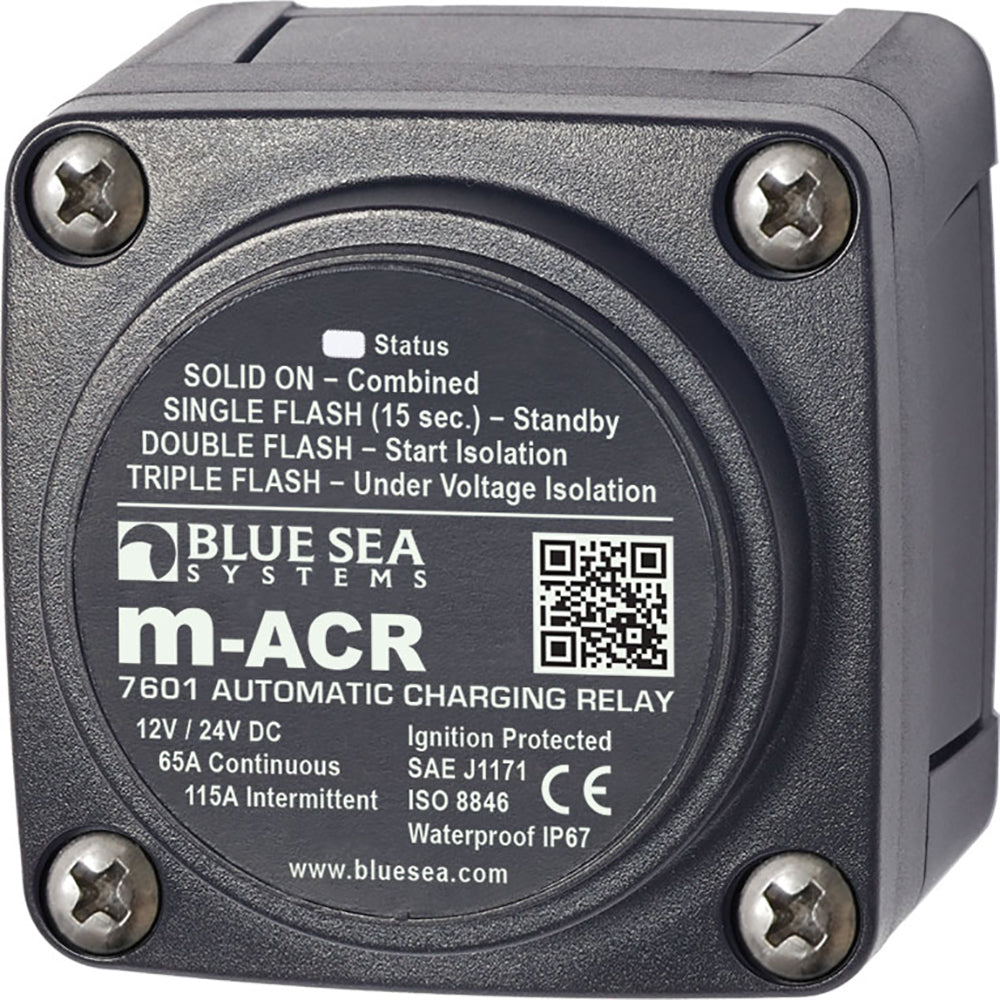

The compact design allows for three mounting styles: surface, rear, or panel mount. The M-ACR is also available as a module in a Custom 360 Panel.

Nominal Voltage
12V DC
24V DC

Start Isolation
Yes

Amperage Operating Current
90mA (Combine)
15mA (Open)

Terminal Stud Torque
60 in-lb (6.78 Nm)

Continuous Rating
65A

Intermittent Rating
115A (5 min)

Cable Size to Meet Ratings
6 AWG

Maximum Cable Size
1/0 AWG

Stud Material
Tinned Brass

Terminal Stud Size
1/4" - 20 (M6)

Relay Contact Position

Combine 30 sec
13.6V DC

Open 10 sec
12.35V DC

Open 30 sec
12.75V DC

Open High
16.0V

Under Voltage Lockout
9.5V
