Blue Sea Panel Enclosure 120v AC 30A ELCI Main Surface Mount System

Blue Sea Panel Enclosure 120v AC 30A ELCI Main Surface Mount System

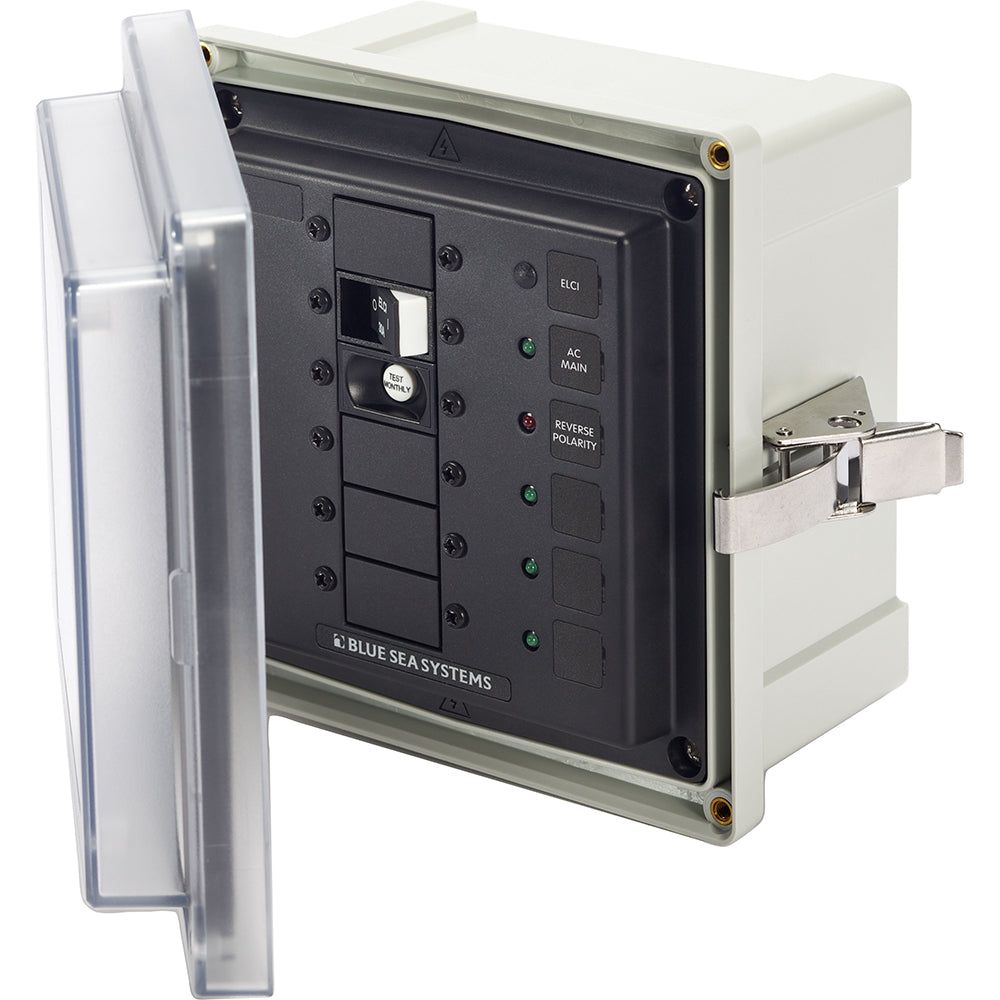

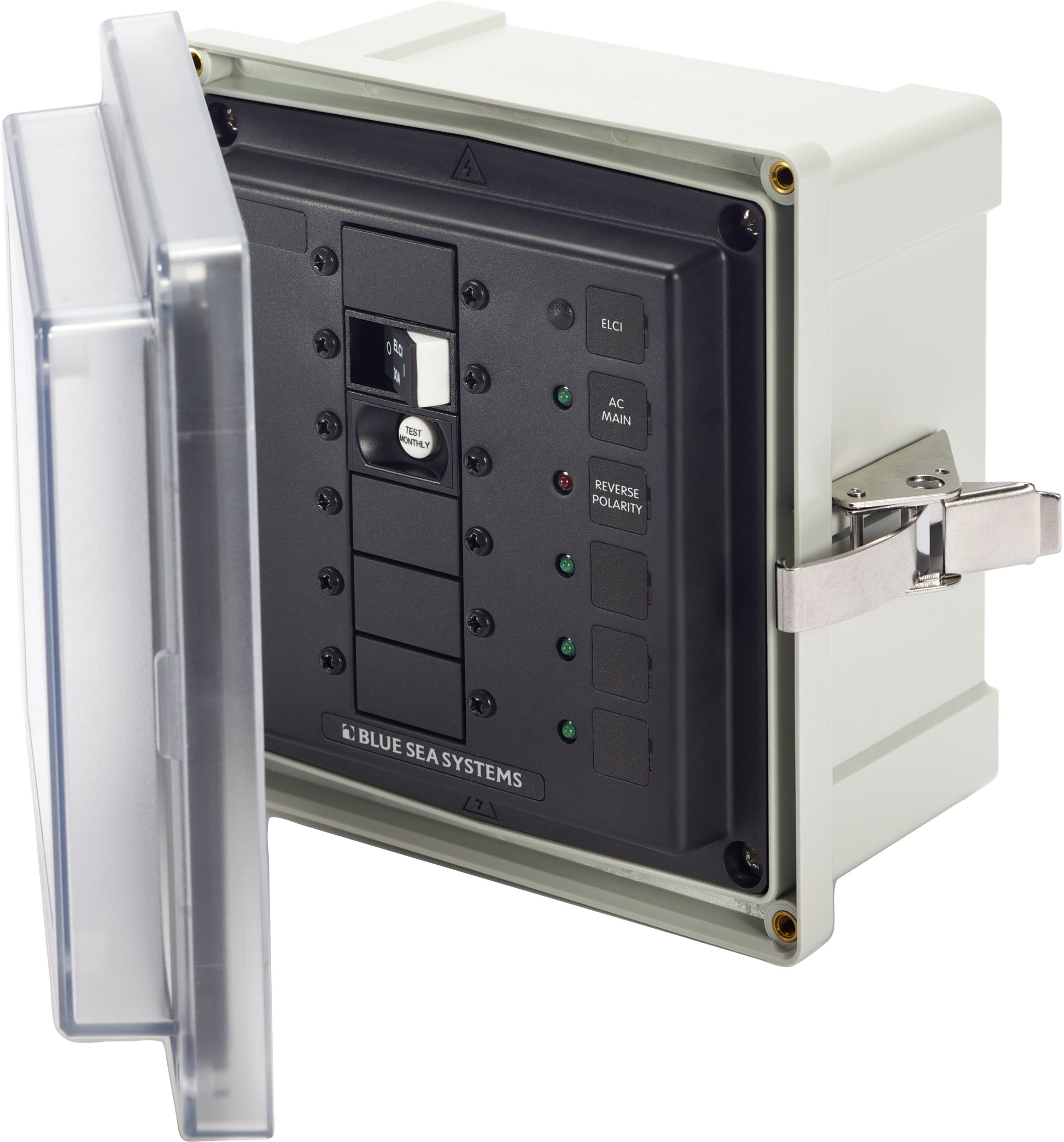

Blue Sea SMS Surface Mount System Panel Enclosure - 120V AC / 30A ELCI Main - 3 blank circuit positions

• Includes one 120V AC / 30A ELCI Main and three blank positions


• Blank apertures for custom breaker loading


• Glass filled polycarbonate mounting box


• Glass filled polycarbonate mounting box


• Overlapping cover for strength and increased gasket protection


• Oversized, formed in place seamless PUR gasket


• Easily removable stainless steel hinge pin for unobstructed installation


• Stainless steel latch secures cover without penetrating the enclosure


• Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers


• Stainless steel mounting hardware included


• Includes waterproof glands


• LED lights for back lighting and ON indication

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Minimum Operating Temperature
-40° C

Maximum Operating Temperature
85° C

Cover Screws and Hardware
10-32 Stainless Steel

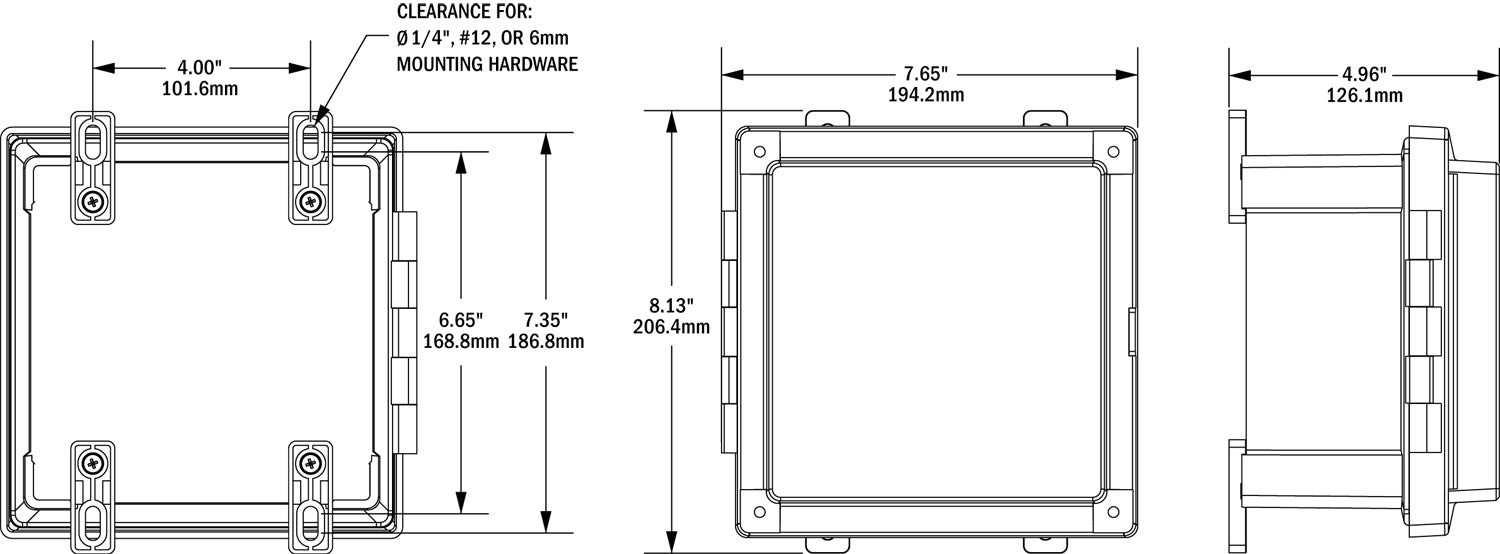

Enclosure Size
6.0" x 6.0" x 4.0"

Exterior Overall Dimensions
7.6" x 7.4" x 4.7"

Mounting Hardware
1/4" Diameter, #12 (6 mm)

What's in the Box:

• SMS Enclosure


• # 3124 Gland for #14-10 wire x 2


• #3125 Gland for #14-10(3 Conductor) wire x 3


• #4206 AC Label Kit


• AC Main Label


• ELCI Label


• 310210 ELCI Breaker 120 VAC 30A


• # 8034 LED - 120V AC Green (ON Indicating) x 4


• # 8066 LED - 120V AC Red (Reverse Polarity Indicating)
