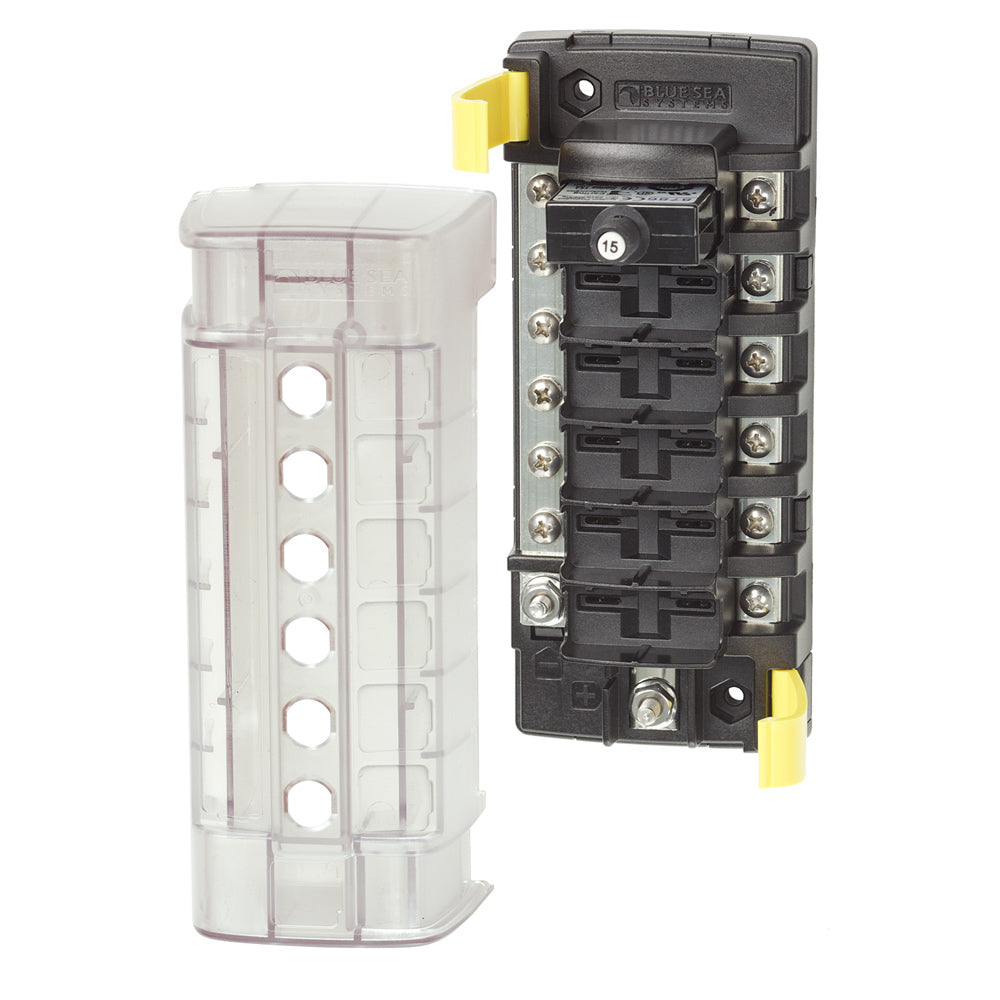

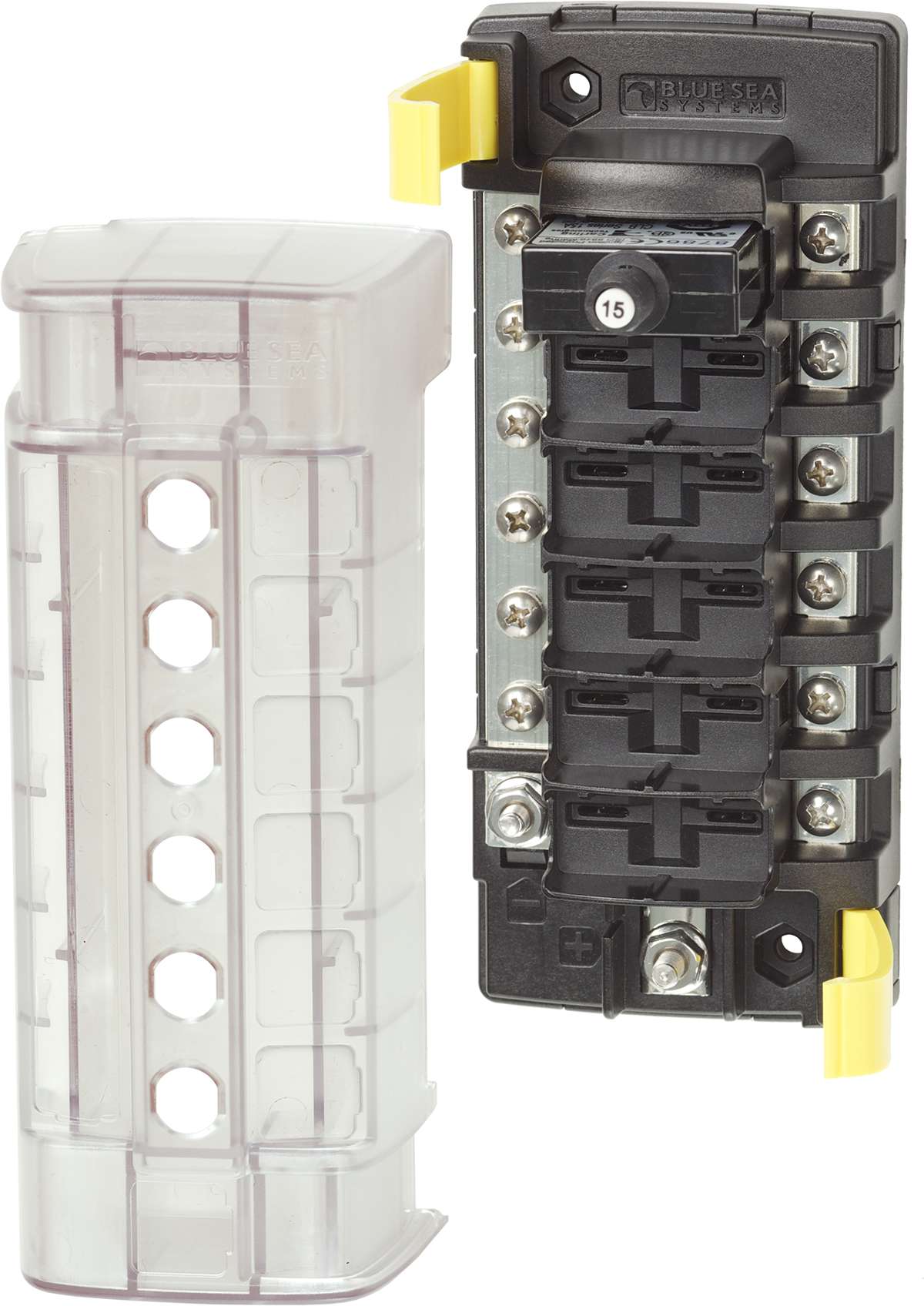

Blue Sea ST CLB Circuit Breaker Block - 6 Position with Negative Bus

• Quick connect clips allow circuit breakers to snap easily into place


• Tin-plated copper busses and screw terminals

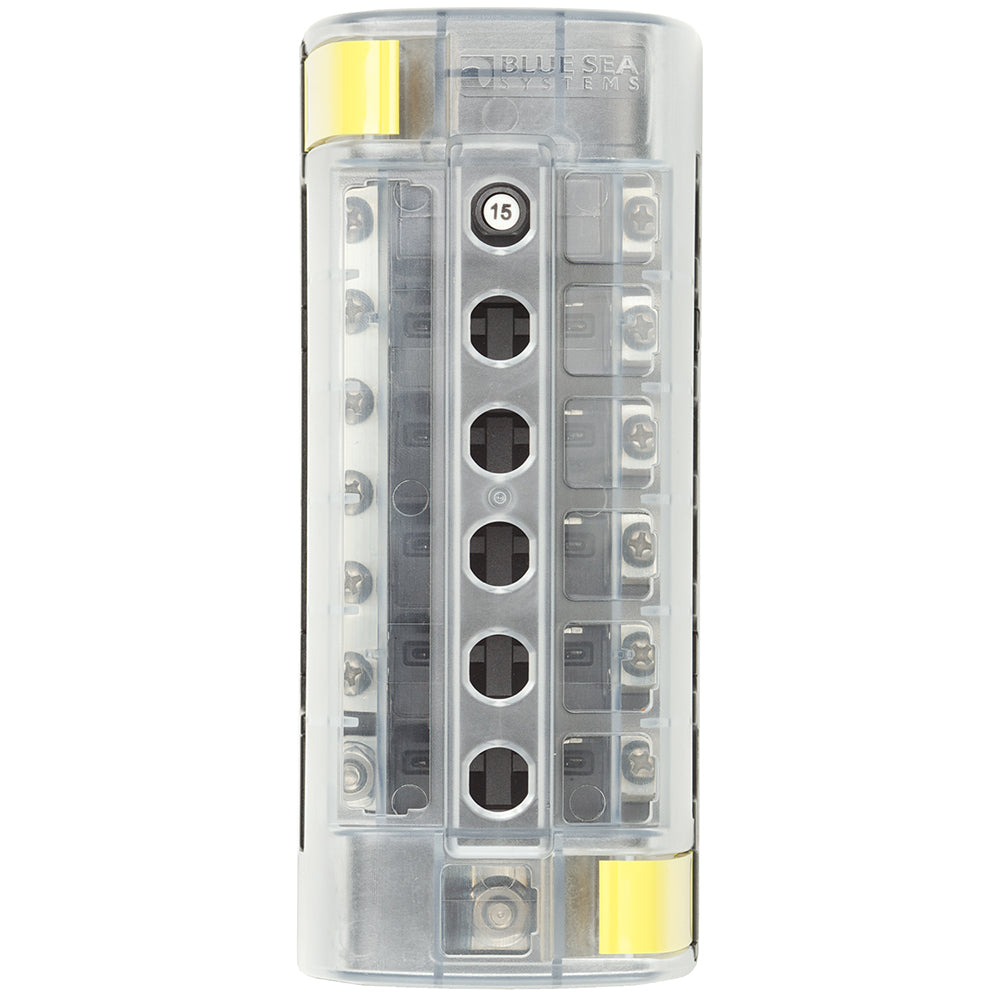

• Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements


• Easy to open clip on cover


• Breakouts allow wire access in two directions


• Accepts ring terminals

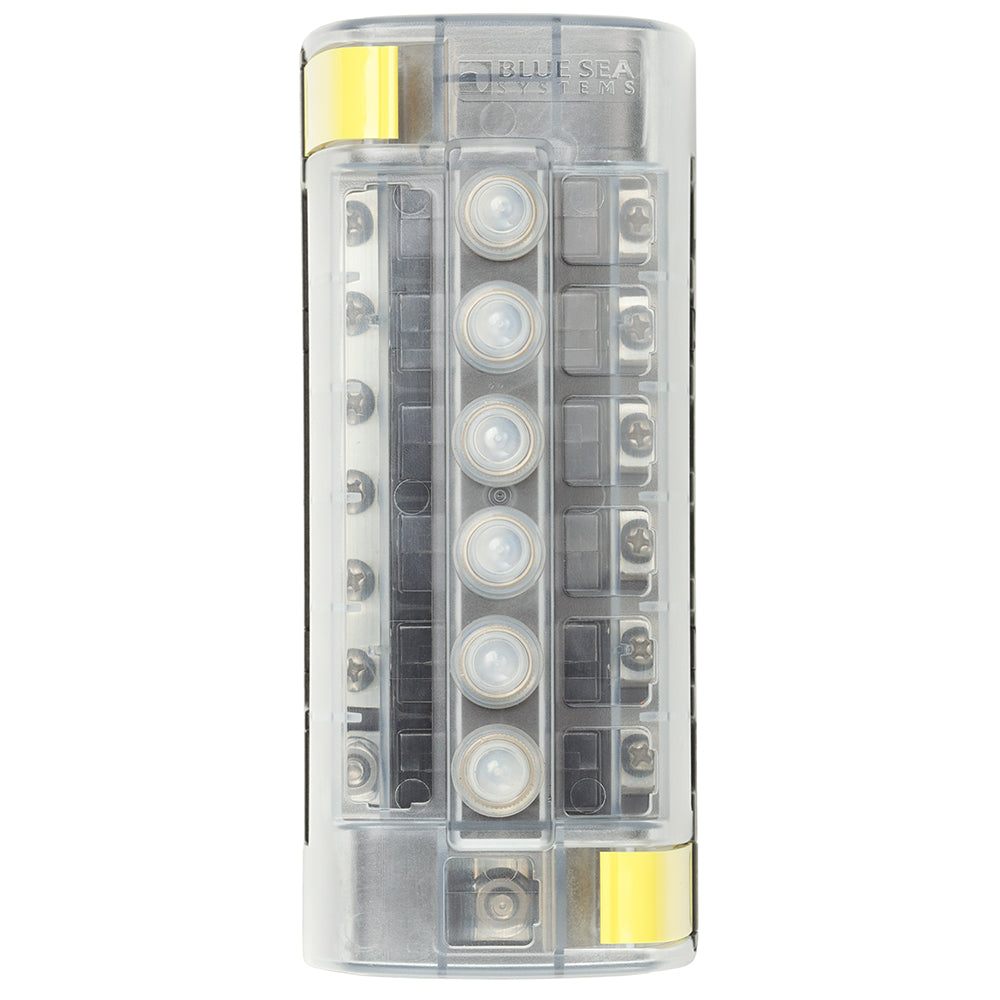

• Optional push button waterproof boots or dress nuts can be installed over cover


• Accepts square labels

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.

Circuits
6

Maximum Amperage
100A (per block)
32A (per circuit)

Maximum Voltage
32V DC

Negative Bus
#10-32 Stud

Positive Bus
#10-32 Stud

Source
Common Source

Minimum Operating Temperature
-10° C

Maximum Operating Temperature
60° C

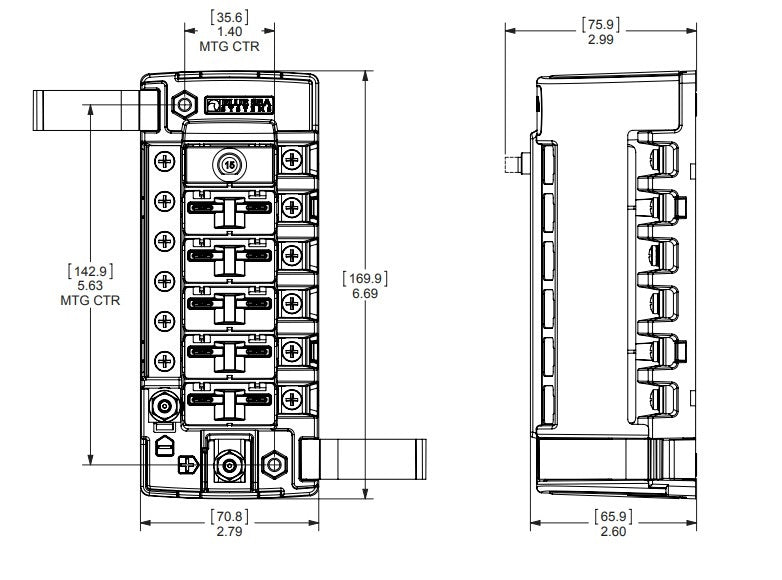

Mounting Centers
5.63in (143 mm)
