Blue Sea Tank Monitor

Blue Sea Tank Monitor

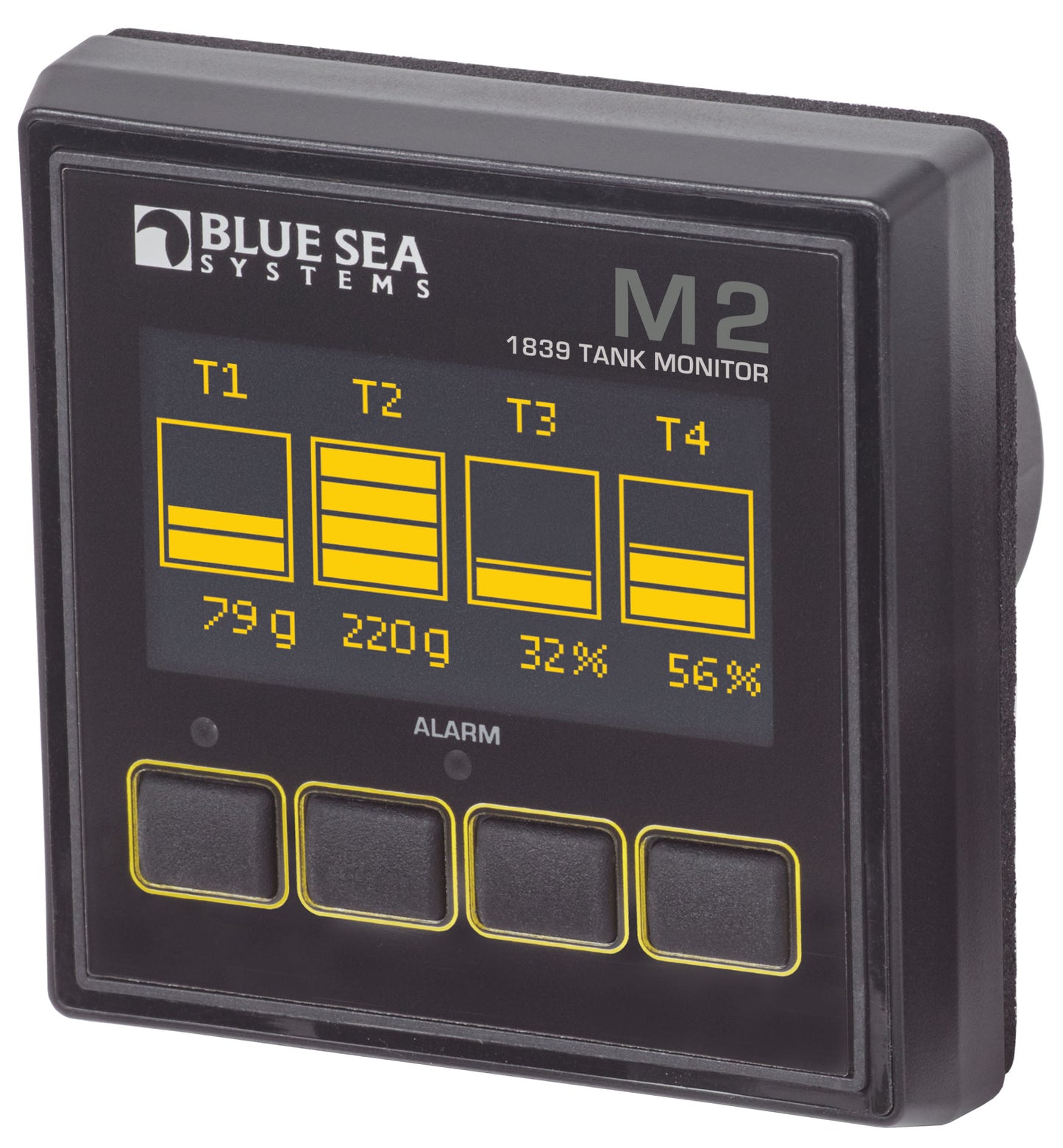

Blue Sea M2 OLED Tank Monitor

• Auto-dimming, bright Organic LED display is easy to read


• 80dB alarm on all models


• Isolated 500mA MOSFET relay


• Intuitive tank level monitoring


• Monitor up to 4 tanks


• Auto calibration for unique tank shapes


• Compatible with common sending units

The M2 Organic LED Digital Monitor measures essential electrical system parameters with adjustable alarms and an auto-dimming display. The M2 Monitors include a MOSFET External Circuit Relay (ECR) which can be used to control external circuits based on any value measured by the M2.

Meter
Tank

Function
Monitors tank volume in up to 4 tanks

Resolution
1%

Input Voltage
7-70V DC

Alarm/Relay Activation
High and Low Level

Display Size
55mm x 28mm

Range
0.3W-1.0W

Tank Alarms
80dB

Tank Shapes
Custom shapes, auto calibration

What's in the Box:

• M2 Tank Monitor Display


• Surface Mount Bezel and Seal


• Surface Mount Gasket


• Surface Mount Cover


• Flat Mount Bezel


• Flat Mount Clamp


• Mounting Ring


• Mounting Nut


• Connector


• Screwdriver
