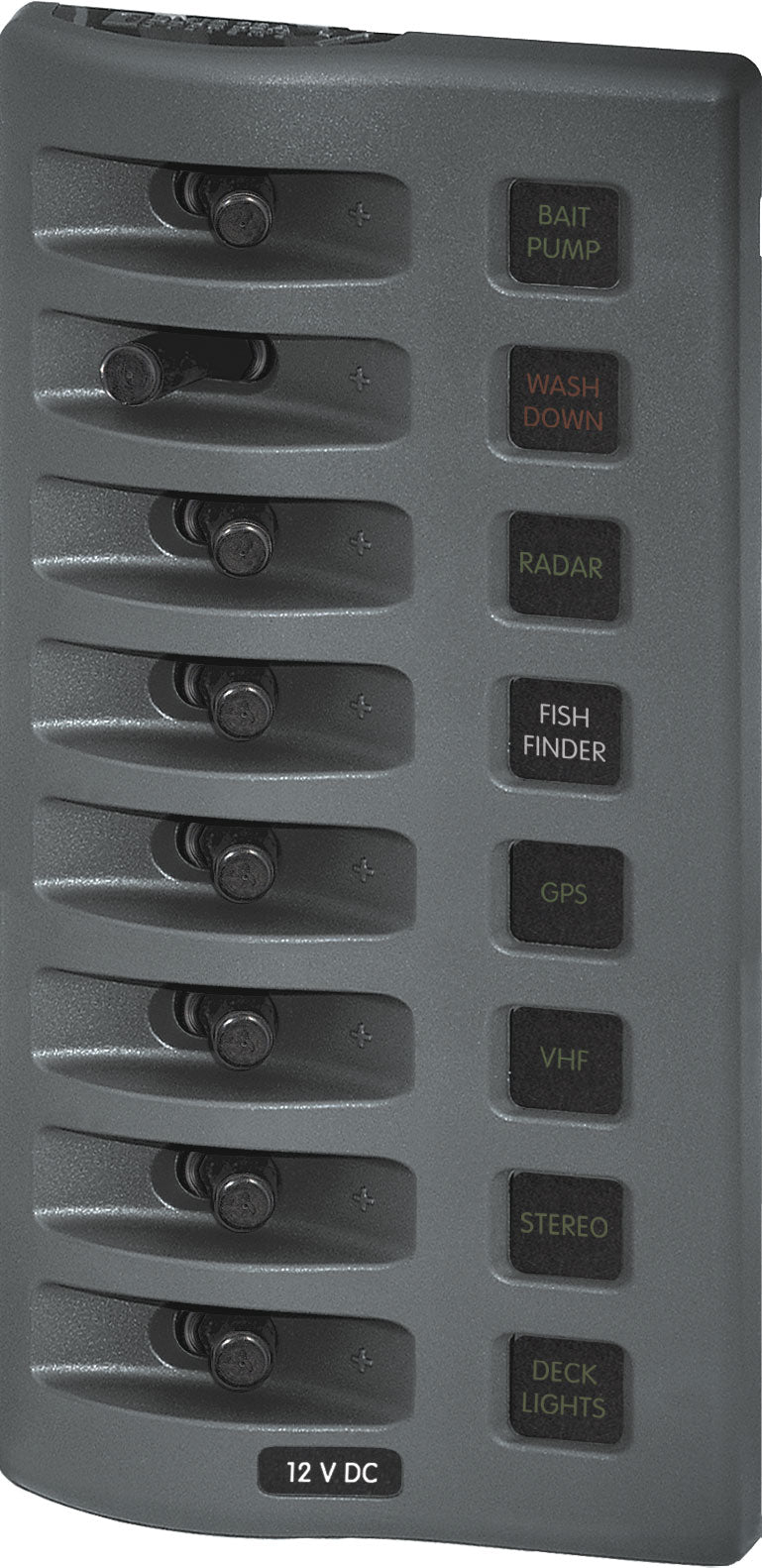

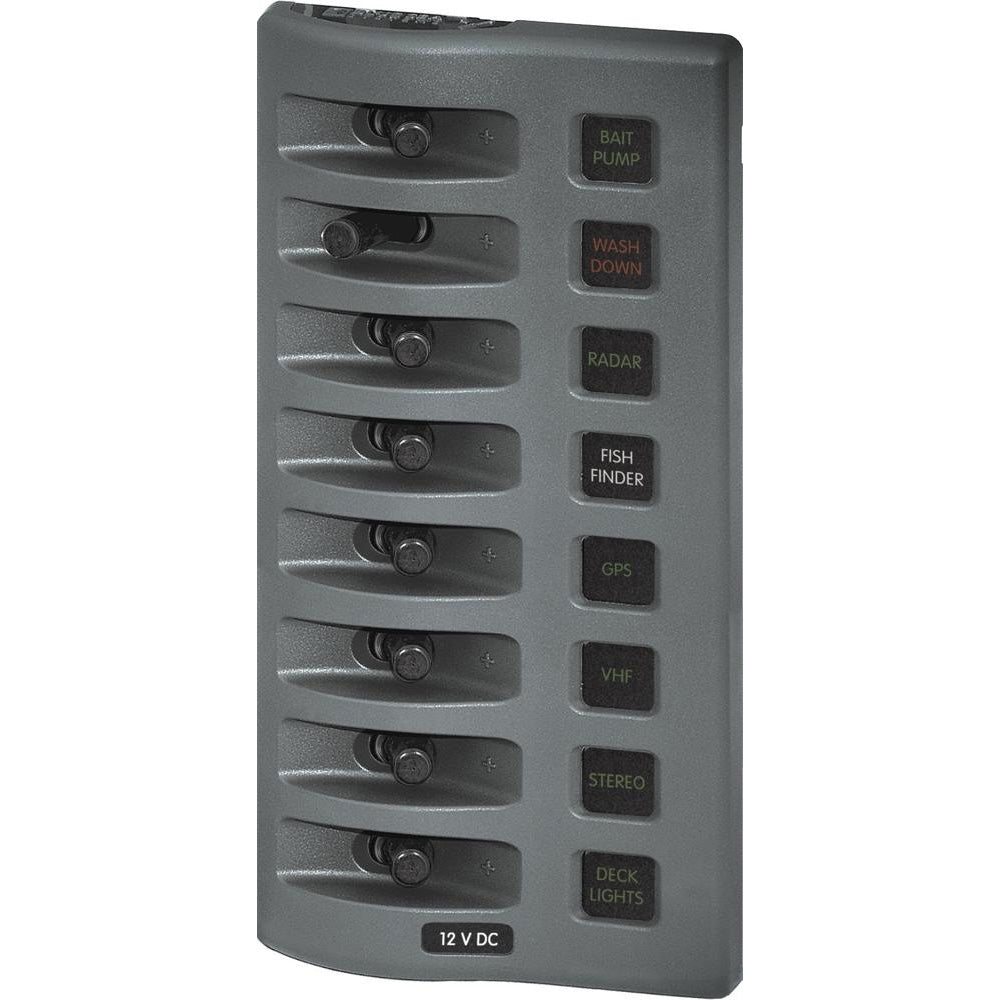

Blue Sea Systems Weather Deck 12V DC Waterproof Fuse Panel - Gray 8 Positions

• Panel front rated IP67 when properly mounted with watertight mounting gasket


• IP67 — protected against immersion up to 1 meter for 30 minutes


• Designed for flybridge and open cockpit applications


• Independent label backlighting circuit for remote switching and dimming


• Available in 2, 4, 6, and 8 circuit models


• Each panel can be mounted in four different orientations


• Integrated ATO/ATC fuse based circuit protection


• Bicolored LEDs illuminate circuit labels to quickly identify OFF (Red), ON (Green), or Blown (No Color) circuits. No lights in any position likely indicate there is no power to the panel.

Weatherproof
Waterproof

Positions
8

Nominal Voltage
12vDC

Circuit Protection
Fuse

Maximum Amperage
15A @ 12V DC (per circuit)

Panel Cumulative Rating
100A

Backlit Label
Bicolored LED

Backlighting Amperage
10mA /Illuminated Circuit

Backlighting Voltage
12V DC

Material
Reinforced Polycarbonate

Dimensions H x W x D
7.7in x 3.88in x 2.50in
