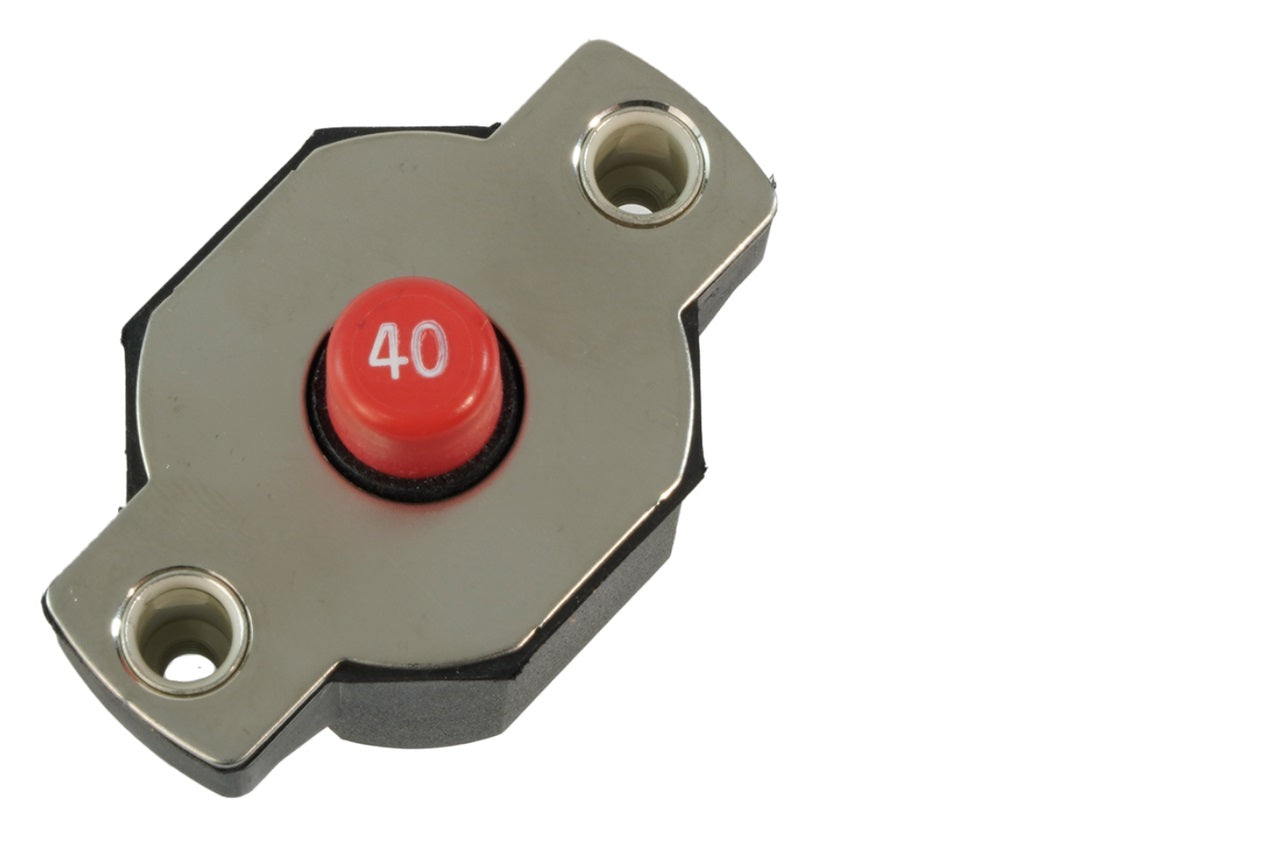

EGIS 40A Medium Duty Push Button Circuit Breaker

EGIS 40A Medium Duty Push Button Circuit Breaker

• Compact Design Easy to install in close proximity for maximum circuit protection panel density.


• Locking Hardware Anti rotation & corrosion resistant hardware ensure long service life in harsh environments.


• 10-32 Mounting Nut Easily install breaker with preferred 10-10-32" threaded fastener.


• Made in the USA of high quality components.

Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation

32 Vdc Rating: easily supports 12 and 24 Vdc applications while offering improved protection rather than using fuses.

Trip-Free Design cannot be forced on during fault condition.

Meets ABYC E-11 Interrupt Requirements

High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power

4 Year Warranty: We stand behind our product's ability to meet your needs.

CONTINUOUS CURRENT (AMPS)
40

MAX VOLTAGE (VDC)
32

CYCLING ENDURANCE
100

INTERRUPT CURRENT @ 32 VDC (AMPS)
3,000

Trip Free Design
Yes

INGRESS PROTECTION RATING
J1428
