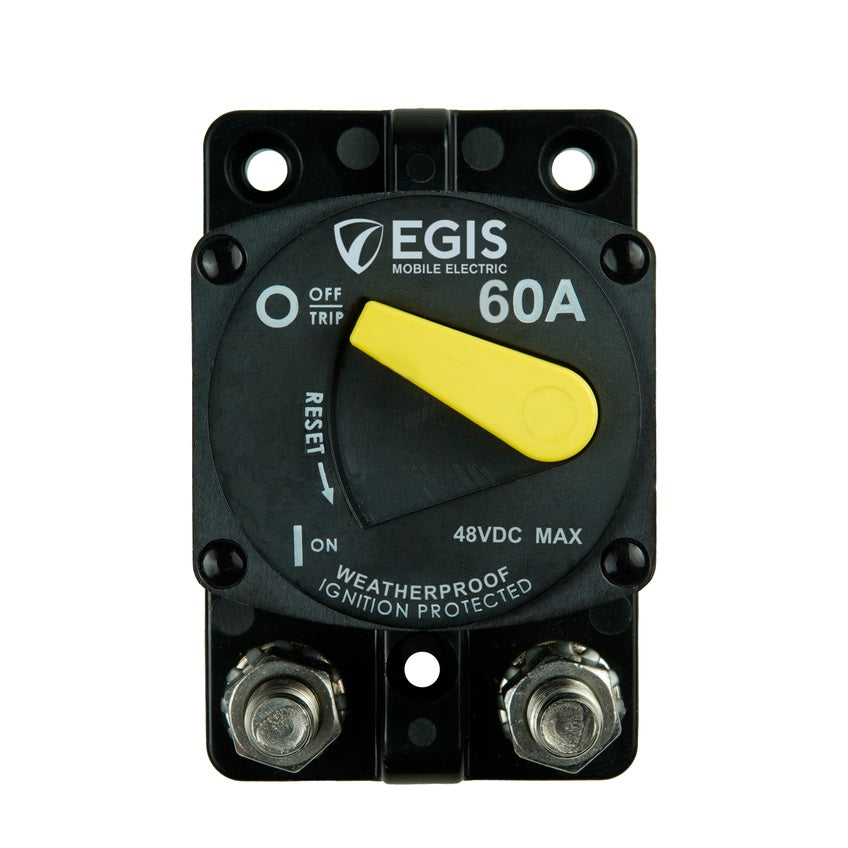

EGIS 87-Series 60 Amp Circuit Breaker Surface Mount

EGIS 87-Series 60 Amp Circuit Breaker Surface Mount

• ON/OFF High Visibility Controls Sealed against dust and moisture penetration. High temp rated for all installation locations.


• Reinforced Mounting Ensures long term structural reliability with reinforced mounting tabs built to withstand the stress of vibration.


• Stainless Steel Hardware / Serrated Flange Nuts Corrosion and vibration resistant for harsh environment applications.


• Made in the USA of high quality components.

IP 66 Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation

High Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc

High Electrical / Manual Switching Endurance delivers 2,000 cycles at full current

High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power

4 Year Warranty: We stand behind our product's ability to meet your needs.

CONTINUOUS CURRENT (AMPS)
60

MAX VOLTAGE (VDC)
48

CYCLING ENDURANCE
2,000

INTERRUPT CURRENT @ 14 VDC (AMPS)
5,000

INTERRUPT CURRENT @ 28 VDC (AMPS)
3,000

INGRESS PROTECTION RATING
IP66
