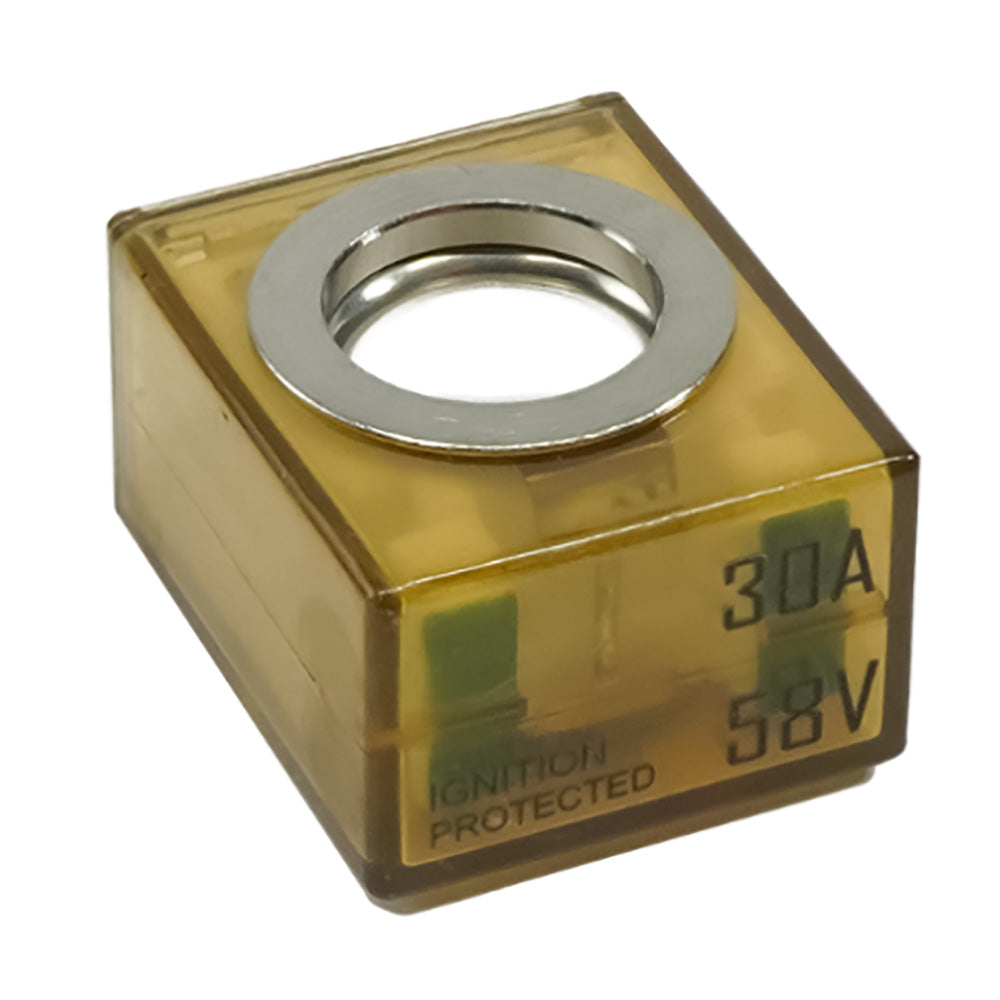

Egis MRBF Terminal Fuse - 30 Amp

MRBF Terminal Fuse - 30 Amp

• Transparent easy visual of fuse status


• Ignition-protected SAE/J1171-ISO8846


• High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks


• Color-coded for easy ID of amperage rating

Features:

• Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.


• High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power


• Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.


• Sealed Against Dust Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation


• 58 Vdc Rating: easily supports 12 to 48V nominal applications.


• High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power


• 4-Year Warranty: We stand behind our products ability to meet your needs.

Specifications:

• Continuous Current (Amps): 30


• Max Voltage (VDC): 58


• Interrupt Rating @ 14 VDC (Amps): 10,000


• Interrupt Rating @ 48Vdc (Amps): 5,000


• Interrupt Rating @ 58Vdc (Amps): 2,000


• Ingress Protection: IP66
