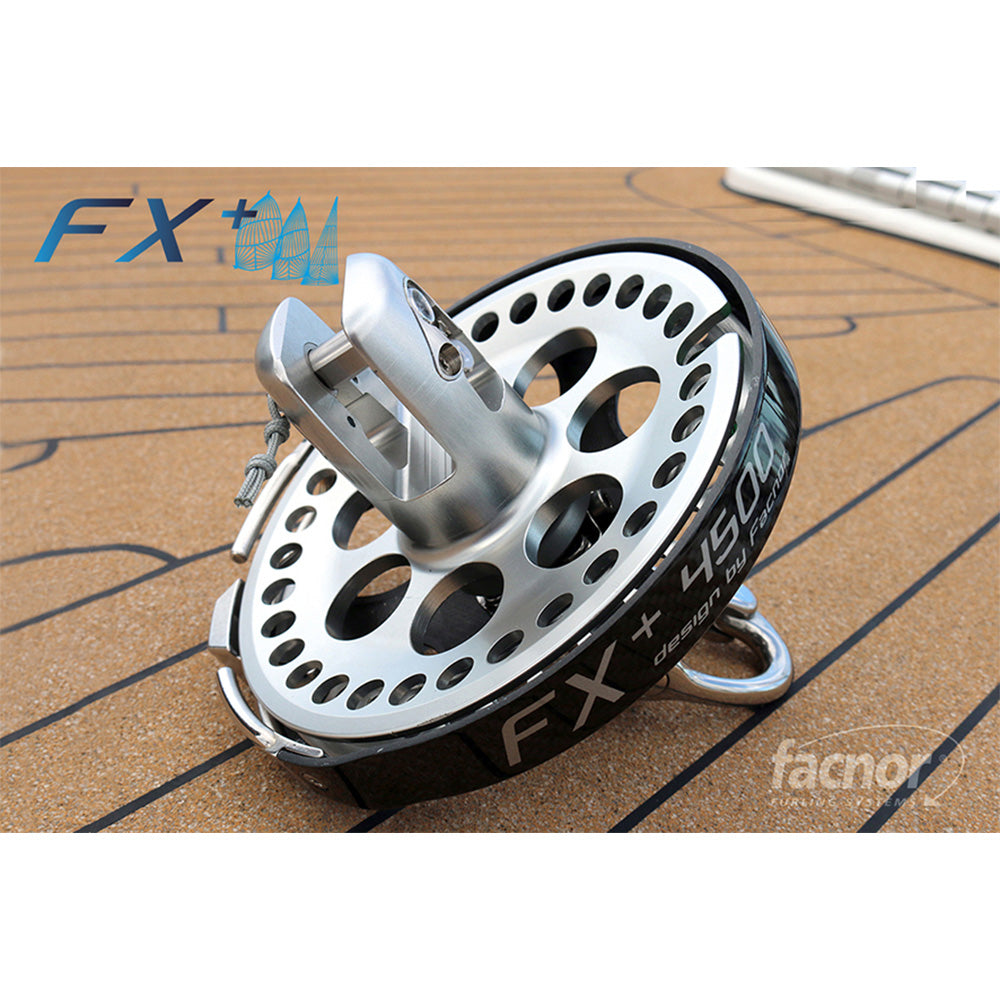

Facnor FX+4500 Flying Sail Furler w/Ratchet

FX+4500 Flying Sail Furler with Ratchet

Further to constructive technical exchanges with ocean racers, Facnor has developed for over 20 years a sophisticated range of Gennaker/Code Zero furlers: the FX+. These furlers are known to be light, easy to fit, and aesthetic. Also, this furler is reliable for cruising or racing.

Features:

• Adapted to sailboat from 13 to 16m (42 to 55 ft.)


• Code sail surface of 140m² maximum (1500ft²) (max 50m² / 538ft² staysail)


• Ratchet option Start & Go included (working both clock or anti-clockwise)


• Unique captive quick-release pin


• Possible conversion for asymmetric Spinnaker


• Composite/carbon housing


• Maintenance-free units (sealed bearings)

The Standard Kit of the FX+4500 Furler Includes:

• A ratchet in s/s duplex enabling a temporary stop when furling in and a self-locking both clockwise and anti-clockwise (Facnor patent)


• One continuous line drum in anodized aluminum and CNC machined in a solid block, protected by a composite/carbon housing, low-profile drum


• One swivel also in anodized aluminum and CNC machined in a solid block, including a neoprene anti-impact cover with high-visibility marking


• One snap shackle as the bottom drum attachment (optional SSH+4500 solid sheave as an alternative)


• One shackle as the top swivel attachment (optional SB4500 2-to-1 block as an alternative)

Offers Comfort in Sail Handling, Reliability, and Easy Manipulation:

• Monoblock's conception of the mechanisms for more sturdiness and long-lasting


• Intuitive manipulation to connect the sail to the mechanisms thanks to a fitted-in, compact, and unique captive quick-release pin


• Bottom drive unit with a largely dimensioned diameter for strong torque and therefore more comfortable handling


• Is rotation transmitted through an anti-torsion luff rope? Optional—sliding inside the luff tape and fitted with a thimble on each end (FCI4500 s-s thimbles and FRC s-s clamps are also available)


• Easy installation of the furling loop (s-s guide + drum notch), discover Facnor Special GRIP loops for an efficient rotation of the drum, and the removable fairleads TSL25/28

Specifications:

• Weight: 2.40 kg


• Sailboat Length (feet): 42'-55'


• Code Sail Area (m²): 140,00


• Code Sail Area (ft²): 1500,00


• Staysail Area (m²): 50,00


• Staysail Area (ft²): 538,00


• Safe Working Load (tons): 4,50


• Standard Top Swivel Attachment: Shackle


• Standard Bottom Drum Attachment: Snapshackle


• Ratchet Option: Included


• Continuous Line Drum Ø: 169,00mm


• Spliced Furling Line Ø: 10,00mm


• Warranty: 3 years

*Optimize the investment by converting the furler for use with an asymmetric spinnaker; just add the FAST 4500 top-down thimble.
