FLIR JCU4 Joystick Control Unit with 3m Cables

FLIR JCU4 Joystick Control Unit with 3m Cables

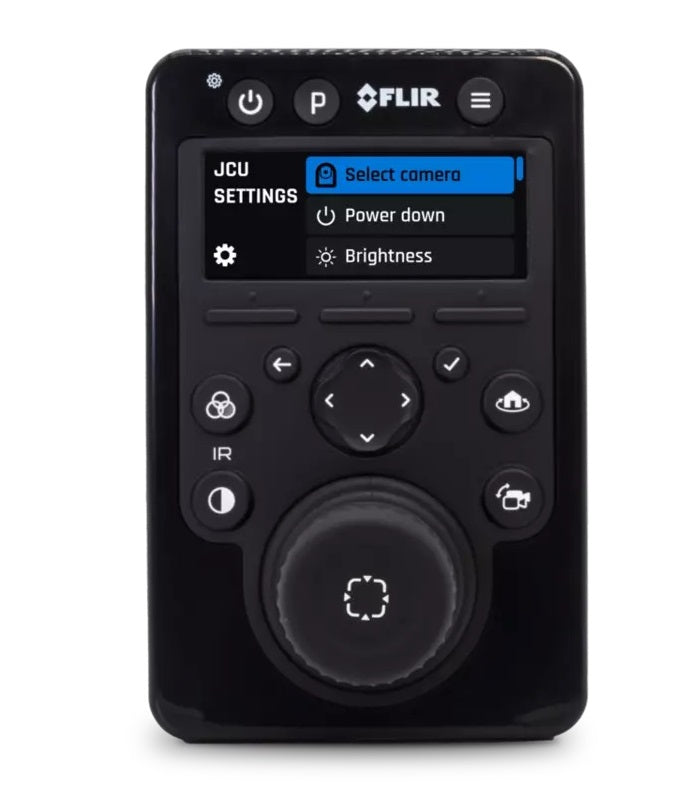

FLIR JCU-4 remote Joystick Controller with Accessories

• Rugged, low profile 3-axis joystick for precision camera control in all conditions


• The 2.9" color LCD and keypad simplify camera operation and offer easy access to the joystick setup menus


• Dimmable color LCD and back lit keypad preserves the operator’s vision during nighttime operations


• 3 custom keys for quick access to user-defined camera functions.


• Pair the JCU-4 with a FLIR marine camera and marine monitor to create a complete camera viewing and control solution


• Add the JCU-4 to an integrated chartplotter and camera system for a dedicated tactile camera control alternative.

The JCU-4 provides confident control of FLIR marine thermal and visible cameras. Pan, tilt, zoom, and control all the camera functions with JCU-4’s ergonomic keypad and responsive joystick control. Our premier FLIR joystick controller, the JCU-4 pairs seamlessly with FLIR marine thermal cameras and provides the operator a dedicated tactile camera control solution.

Designed by mariners, for mariners the JCU-4 is perfect for those who actively navigate using thermal technology and require dependable and intuitive control of their FLIR camera.

Width
93.66 mm (3.69 in)

Height
146.66 mm (5.77 in)

Depth
63.36 mm (2.49 in)

Depth (including joystick)
113.30 mm (4.46 in)

Power

PoE class
Class 2

Nominal supply voltage
PoE: 48 V dc
Alternate power: 12 V / 24 V dc

Operating voltage range
PoE: 44 V to 57 V dc
Alternate power: 8 V to 32 V dc

Power consumption
5 W Max with full keypad illumination

Network

Network connection ports
1x 10/100/1000 Mbits/s RayNet (Ethernet)
1x 10/100/1000 Mbits/s PoE RayNet (Ethernet)

Display

LCD Size
2.9"

LCD Type
IPS TFT LCD

Active area
26.51 mm x 67.68 mm

Brightness / Luminance
600 nits / 600 cd/m2

Viewing angles
80 + / 80 +

Resolution
376 (H) x 960 (W) pixels (RBG)

Contrast ratio
1:1500

Environmental

Operating temperature
-25 C to +55 C (-13 F to 131 F)

Storage temperature
-30 C to +70 C (-22 F to 158 F)

Relative humidity
Maximum 93% @ + 40 °C (104 °F)

Waterproof rating
IPx6

What's in the Box:

• JCU-4 (includes 4x screws and 4x mounting plates pre-fitted).


• Front cover.


• Weather cover.


• Documentation pack.


• Right-angled RayNet (Ethernet) to RJ45 adapter cable, 3 m (9.84 ft).


• Right-angled 3-pin power cable, 3 m (9.84 ft).
