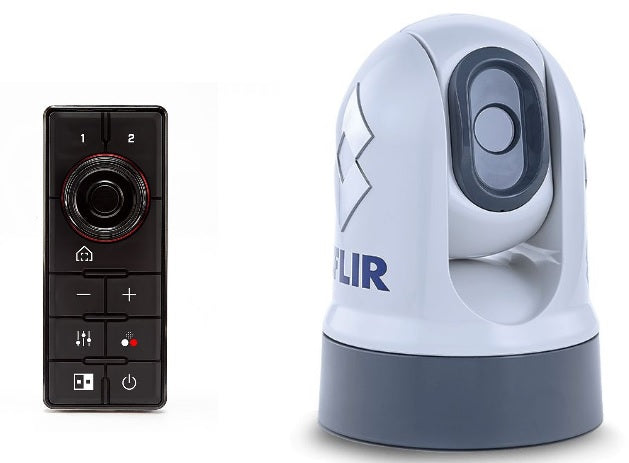

FLIR M232 Thermal IP Camera (320 x 240, 9Hz) with Pan, Tilt and electronic zoom with JCU3

Model: E70354 WITH JCU3

• Thermal Resolution - 320 240 resolution for clear, detailed images


• Ethernet-Enabled - Ethernet-enabled for simple integration with your other electronics


• Zoom - 2 e-Zoom for extended range performance


• Tilt - M100 with adjustable tilt

The FLIR M200 marine thermal camera is FLIRs smallest and most affordable pan and tilt marine thermal night vision camera. Using FLIRs latest generation Boson(TM) thermal core, the M200 lets boaters see at night in 320 x 240 thermal resolution and also features 2x digital zoom. When the M200 is combined with a Raymarine Axiom MFD, FLIR’s new ClearCruise™ intelligent thermal analytics technology offer boaters an entirely new level of awareness and safety. The M200 also use IP video technology and simplifies installation by eliminating extra video signal cables. The M200 offers features 2X digital zoom capability.

The M200 improves navigation and safety by helping you see bridges, docks, buoys, and other vessels, night and day. The M200 also helps boaters find people in the water faster than using spotlights and radar alone.

M200 features full 320x240 resolution for optimal horizon-to-horizon viewing, and 2X digital zoom for long-range performance.

The combination of the M200’s small, lightweight design and IP video connectivity make it a snap to install and integrate with multiple MFDs.

Combine M200 with a Raymarine Axiom MFD and take advantage of ClearCruise™ intelligent thermal analytics. ClearCruise™ provides audible and visual alerts when "non-water" objects such as boats, obstacles, or navigation markers are identified in the scene.

Specifications

Main Thermal Camera

Detector type
320 240 VOx Microbolometer

Video refresh rate
9 Hz

Field of view
24° 18°

E-zoom
2x

Image Processing
FLIR Proprietary Digital Detail Enhancement

System Specifications

Pan/Tilt Range
Pan: 360° (continuos), Tilt: +110°, -90°

Image Processing
FLIR Propriety Digital Detail Enhancement™

Video Output
H264 IP Video stream

Power Requirements
12 or 24 VDC

Power Consumption
15 W (typical) 18 W (max)

Environmental

Operating Temperature Range
-13°F to +131°F (-25°C to +55°C)

Storage Temperature Range
-30°F to +158°F (-30°C to +70°C)

Relative Humidity
93% max

Vibration
IEC 60945; MIL-STD-810E

Salt Mist
ASTM B117

Wind
100 mph (161 kph)

EMI
IEC 60945

Rating
IP67

Drop Test Rating
1m drop (in packaging)

Physical

Weight
6.0 lb (2.7 kg) w/o top-down riser 6.6 lb (3.0 kg) w/ top-down riser

Size
6.34" (dia. @ base) x 9.03" (ht.) 161.1 (dia.) x 229.3 (ht.) mm

Range Performance

Person in the Water
~1,500 ft (457 m)

Small Vessel
~0.67 nm (1.3 km)

What's in the Box:

• Thermal camera


• Thermal camera base-seal


• Fasterns x 3


• 2 x Self-adhesive decals (for ball-down mounting only)


• *RayNet-to-RJ45 adapter cable (100 mm)


• *Right-angled RayNet-to-RayNet cable (10 m)


• Right-angled 3-pin power cable (10 m) Top-down riser kit (includes riser, riser base seal, and riser mounting template


• Documentation pack


• *The supplied right-angled RayNet and Power cables are suitable for mounting on surfaces up to 25.4 mm (1.0 inch) thick. When mounting on thicker surfaces, you may need to use RayNet and Power cables with straight connectors (available separately).


• JCU3 Control
