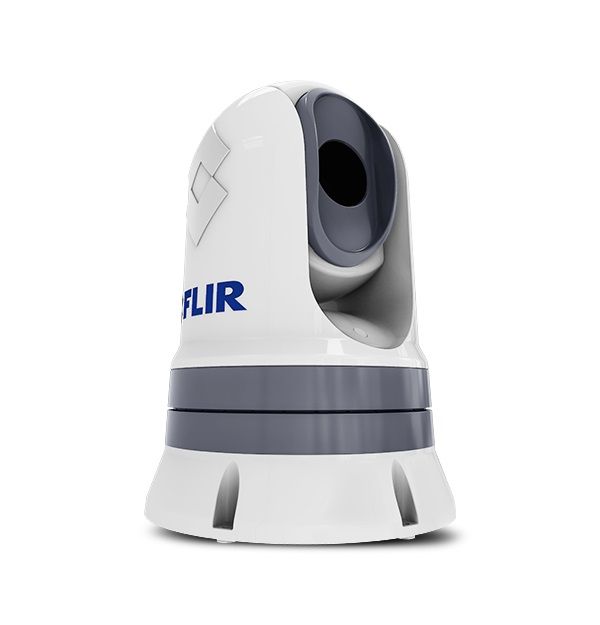

FLIR M300C Reman Single Payload HD Camera No JCU

FLIR M300C Reman Single Payload HD Camera No JCU

FLIR M300C Single Payload HD Camera No JCU - Remanufactured

Model: E70605R

Combining a high-performance visible marine camera with long-range optical zoom capability, the M300C offers positive target identification for law enforcement, commercial, and recreational applications. Advanced gyro-stabilization provides steady imaging in rough sea conditions and allows the M300C to monitor targets or hazards over long distances continuously. Exceptional low light performance from the M300C gives captains enhanced awareness once the sun dips below the horizon.

Low light HD visible imaging sensor and long-range zoom offer enhanced target identification

Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.

Exceptional connectivity with navigation and security systems.

Specifications

General

HD-SDI Lossless Video Output
Yes

Network Video Output
Single H.264 Network Video Stream

Pan & Tilt Adjustment Range
360° Continuous Pan, +/- 90° Tilt

Pan/Tilt
Yes

Color Camera

E-Zoom - Color
12x

Connections & Communications

Analog Video Output
NTSC/PAL User Settable

Analog Video Connector Types
BNC

Daylight Imaging

Zoom
30x Optical Zoom

Detector Type - Daylight
1/2.8" Exmor R CMOS

Field of View - Daylight
Optical 63.7° x 35.8° WFOV to 2.3° x 1.29° NFOV

Focal Length - Daylight
129 mm to 4.3 mm

Lines of Resolution - Daylight
High Definition up to 1080/30p

Minimum Illumination - Daylight
0.1 lux (50 IRE, 1/30s, ICR off, slow shutter off, high sensitivity off) / 0.0008 lux (30 IRE, ICR on, slow shutter 1/4s, high sensitivity on)

Environmental

Automatic Window Defrost
Standard at Power-Up

EMI
IEC60945

Lightning Protection
Standard

Operating Temperature Range
-13°F to +131°F (-25°C to +55°C)

Salt Mist
IEC60945

Shock
15g vertical, 9g horizontal

Storage Temperature Range
-30°F to +158°F (-30°C to +70°C)

Vibration
IEC60945

Water Ingress
IPX6 (heavy seas, power jets of water)

Wind
100 knots (115.2 MPH)

Sand & Dust Ingress
Mil-Std-810E or IP6X

What's in the Box:

• M300C Camera - Remanufactured


• Camera base-seal


• Camera gasket


• RayNet-to-RJ45 adaptor cable 120 mm (4.72 in.)


• Right-angled RayNet-to-RayNet cable 3 m (9.8 ft.)


• Right-angled BNC-to-BNC cable 3 m (9.8 ft.)


• Right-angled 3-pin power cable 3 m (9.8 ft.)


• Mounting riser


• 3 x camera fixings: nuts, dome nuts, spring and flat washers, threaded studs
