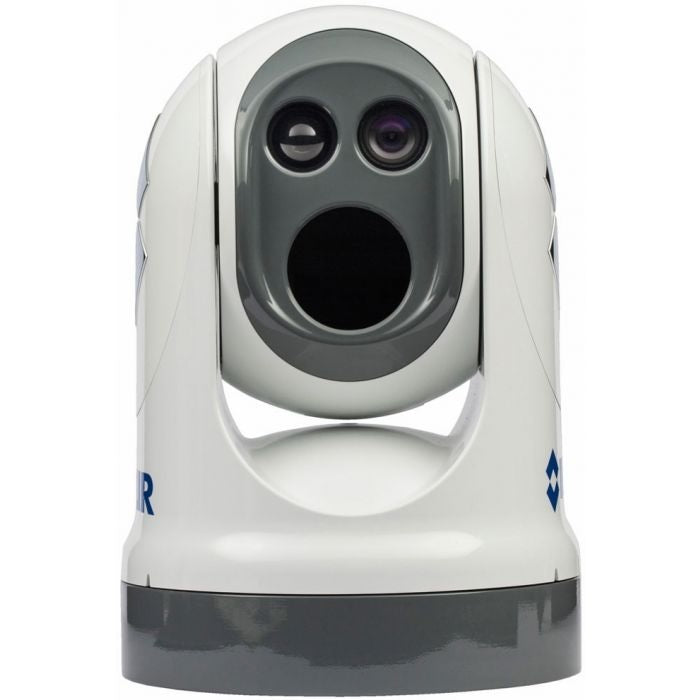

FLIR M400XR Stabilized Thermal/Visible Camera with JCU (NTSC, 30Hz)

Model: 432-0012-4-00

• M400XRs thermal camera features a 4x optical zoom lens so targets remain in clear, crisp focus right up to maximum magnification.


• Combination thermal sensor with up to 3X optical zoom and HD Color camera with 30X zoom.


• Rugged, waterproof gimbal enclosure with automatic window heaters keeps image clear, while gyro-stabilization ensures steady viewing in heavy seas.

The FLIR M-400XR provides exceptional situational awareness for first responders. It includes custom fire fighting software that displays a target temperature meter and isotherms. InstAlert™ mode depicts the hottest objects in shades of red and orange for easy identification, while IceAlert™ turns the coolest objects in view blue and green.

Specifications

GENERAL

Camera Head Size
15.18" x 18.68" / 15.5" x 22" Swept Volume Cylinder

Detector Type
Long range color daylight and low light viewing

E-Zoom
1x to 4x

Field of View
64° to 2.3° Optical HFOV / 0.2 NFOV e-zoom

Image Processing
FLIR Propriety Digital Detail Enhancement™

Integration Options
IP Control by FLIR Joystick, PC,and Web Browser Integration with leading Multifunction Navigation Displays (Nexus SDK) FLIR Sensors Manager Integration RS-485/422 Serial Control by Pelco D NMEA 0183 Serial Communications (for radar tracking)

Pan & Tilt Coverage
360° Continuous Pan, +/-90° Tilt

Typical Configuration
Camera Head, Joystick Control Unit, Cables, & Operator Manual, Glass-filled top down riser

Warranty
2 Year / 3 years with registration

OVERVIEW

Focal Length
129 mm to 4.3 mm

129 mm to 4.3 mm
45lbs

COLOR CAMERA

Resolution
High Definition up to 1080/30p

CONNECTIONS & COMMUNICATIONS

Construction Type
BNC

Video Output
Dual, independent H.264 Network Video Streams HD-SDI Lossless Digital Video Interface High Definition Serial Data Interface Broadcast-quality video output Provides HD video over coax cable Switchable Composite Analog Video Output (SD) NTSC or PAL

DAYLIGHT IMAGING

Detector Type - Daylight
Long range color daylight and low light viewing

Field of View - Daylight
64° to 2.3° Optical HFOV / 0.2 NFOV e-zoom

Focal Length - Daylight
129 mm to 4.3 mm

Minimum Illumination - Daylight
>0.5 lux at 50 IRE / .05 Lux in ICR Mode (B/W)

Resolution - Daylight
High Definition up to 1080/30p

Zoom
30X Optical Zoom

ENVIRONMENTAL

Automatic Window Defrost
Standard

Operating Temperature Range
-20 to 55 deg C

Storage Temperature Range
-50°C to 80°C

MARINE IMAGING & OPTICAL

Video Tracking
Yes

POWER

Power Consumption
<50 W nominal; 130 W peak, 270 W 2/heaters

Power Requirements
24V DC

SPOTLIGHT

Beam
5° Divergence Angle

Lumens
580

Type
LED

THERMAL IMAGING

Detector Type - Thermal
640 480 VOx Microbolometer

E-Zoom - Thermal
1x to 4x

Field of View - Thermal
18° to 6° / 1.5° HFOV with e-zoom

Field of View (H x V) - Thermal
18° to 6° / 1.5° HFOV with e-zoom

Focal Length - Thermal
35mm (wide) to 105mm (narrow)

Image Processing - Thermal
FLIR Propriety Digital Detail Enhancement™

Thermal Resolution
640 x 480

VISIBLE CAMERA

Minimum Illumination
>0.5 lux at 50 IRE / .05 Lux in ICR Mode (B/W)

What's in the Box:

• M400XR Camera


• JCU2


• Ethernet switch with power over Ethernet (PoE)
