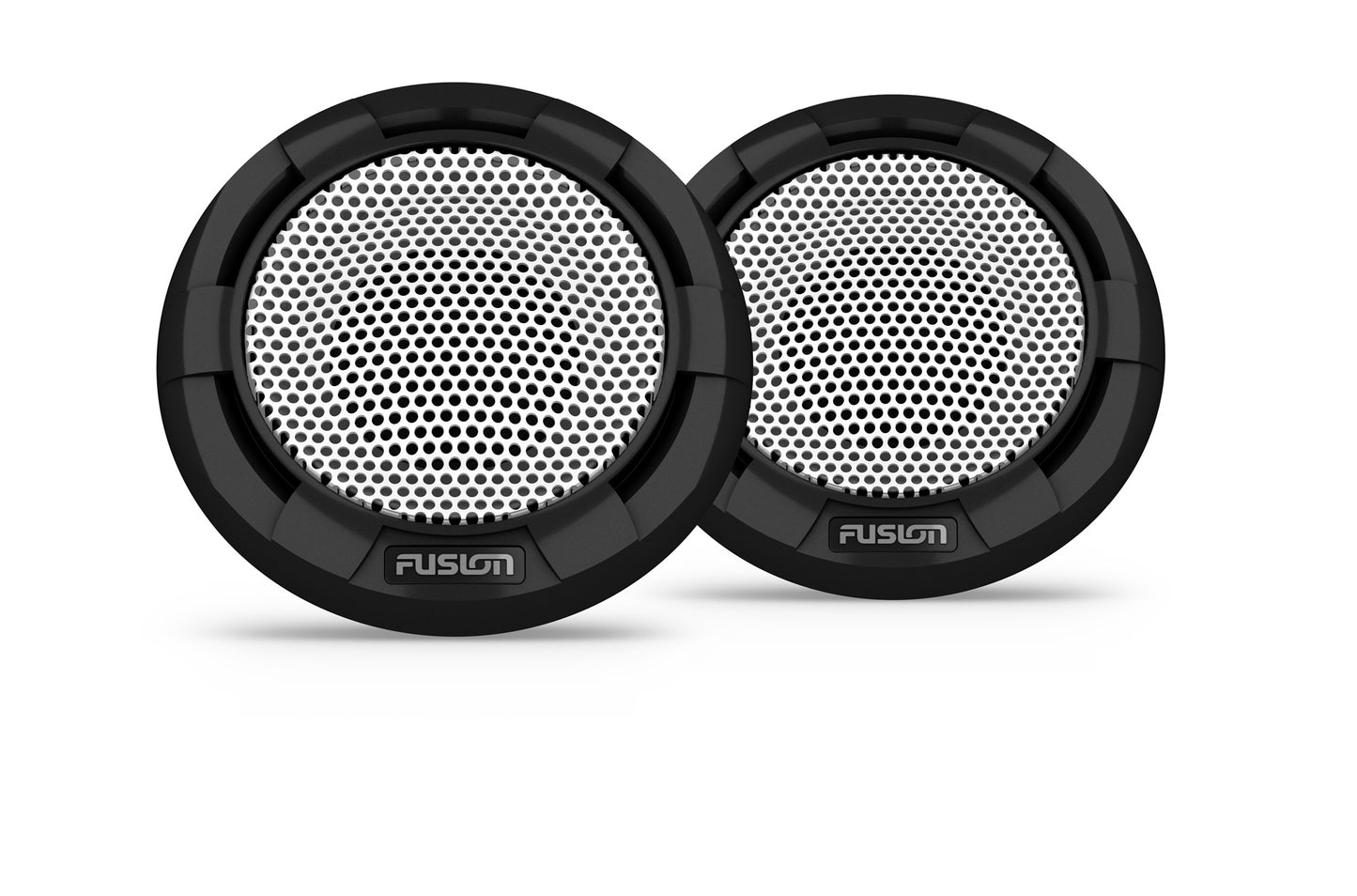

Fusion SG-TW101SPB Component Tweeters

Fusion SG-TW101SPB Component Tweeters

Fusion® Signature Series 3i Component Tweeters - Black

Enhance your listening experience while you’re on the move with these marinized component tweeters. Designed to be dash-mounted in raised positions to restore high frequencies, you can clearly hear vocals over engine, wind and wave noise. Key features include a compact form factor, low-profile mounting design, IP65 weather rating and True-Marine design with a 3-year warranty. Now with plug-and-play, water-resistant connectors as a standard, you can enjoy simplified installation and improved protection from the elements.

Physical dimensions (diameter x depth)
2.91" x 1.64" (74 x 41.6 mm)

Weight
4.2 oz (0.12 kg)

Water and dust rating
IP65

Tweeter size
1"

Peak power (watt)
330 W

RMS power (watt)
60 W

Sensitivity (1 W / 1 m)
91 dB

Frequency response
3 kHz - 20 kHz

Nominal impedance
4 ohms

Recommended amplifier power (RMS)
25 - 140 W/Ch

Operating temperature range
32° to 122° F (0° to 50° C)

Voice coil diameter
1"

Material
Aluminum dome

Tweeter connection
Flying lead with water-resistant 2-way connector, 5.9" (150 mm)

Compass-safe distance
43.3" (110 cm)

Warranty
3 years

Mounting Dimensions

Mounting diameter clearance
2.01" (51 mm)

Mounting depth clearance
1.22" (31 mm)

What's in the Box:

• One pair of component tweeters


• 6 Phillips stainless steel mounting screws (3.5 mm x 25.4 mm (6 gauge x 1"))


• 2 water-resistant cable assembly with 2-pin connector (5.9" (150 mm))


• Documentation
