Fusion XS-F77CWB 7.7" Speaker

Fusion XS-F77CWB 7.7" Speaker

• Optimized Full Range Speaker: The XS Series speakers are acoustically optimized for performance in the marine environment, by combining optimized speaker drivers and tweeters to produce quality sound at all volumes.


• True-Marine™ Designed and Engineered: Extensively tested to perform in the harsh marine environment, the XS Series carry an IP65 weatherproof rating along with True-Marine accreditation.

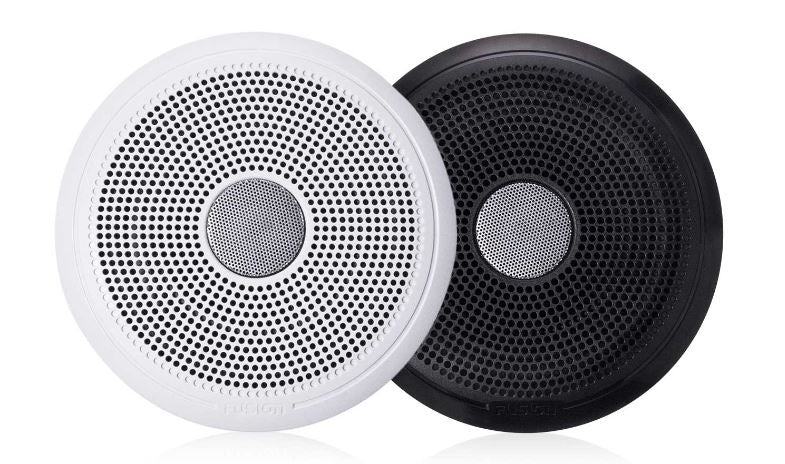

• Two Grille Options Supplied: Enjoy the freedom to choose the finish to suit your vessel, with both Classic White and Classic Black grilles supplied in the box.

Continuing to set the benchmark for marine audio entertainment, Fusion’s new XS Series speakers feature their trademark quality audio reproduction and enhanced marine aesthetics at a mid-range price point. Optimized for use in the marine environment, and built for performance, these stylish speakers are designed to produce consistently high quality audio at all volume levels, season after season.

With an IP65 weatherproof rating, True-Marine™ accreditation and an industry-leading 3-year warranty, you can enjoy peace of mind that your XS Series speakers are built to last on your boat.

Speaker Size
7.7"

Peak Power
240 Watts

RMS Power Rating
60 Watts

Efficiency (1W/1M)
92 dB

Frequency Response
70 Hz - 18 kHz

Nominal Impedance
4 ohms

Recommended Amplifier Power (RMS)
25 - 200 W/Ch

Tweeter Type
Aluminum Dome

Cone / Surround Material
Polypropylene with cloth surround

Mounting Diameter Clearance
162mm (6-3/8")

Mounting Depth Clearance
77mm (3")

Optimum Enclosure Volume (Sealed enclosure, fully filled with absorption material)
10L 8L

Operating Temperature Range
0 to 50°C (32 to 122°F)

Storage Temperature Range
20 to 70°C (-4 to 158°F)

Water and Dust Resistance (IPX rating)
IP65

Warranty
3 years
