Garmin ECHOMAP UHD2 73sv Ice Bundle With GT10HN-IF GN+ US Inland

Garmin ECHOMAP UHD2 73sv Ice Bundle With GT10HN-IF GN+ US Inland

Model: 010-02684-35

• BUILT WITH BRIGHT 7" TOUCHSCREEN DISPLAY AND KEYED ASSIST


• INCLUDED TRANSDUCER SO YOU SEE WHAT’S BELOW


• INCLUDES A BUILT-IN FLASHER


• FEATURES GARMIN NAVIONICS+™ MAPS WITH 23,000+ LAKES


• COMES WITH A RUGGED, PORTABLE CARRYING CASE

Designed for the passionate angler, the ECHOMAP UHD2 73sv Ice Fishing Bundle provides detailed maps and sonar, so you can transform your fishing experience.

The 7" ECHOMAP UHD2 73sv chartplotter with touchscreen and keyed assist is perfect on the ice or on your boat (additional accessory purchase required).

This bundle includes the GT10HN-IF, a high narrow CHIRP ice fishing transducer with selectable beamwidth (7 to 16 degrees), and it provides crisp, clear fish arches with excellent target separation.

Get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.

You can create custom pages that combine sonar, flasher and map on your display.

ECHOMAP UHD2 73sv also supports ClearVü™ and SideVü™ scanning sonars for nearly photographic images of what’s below the boat (transducer sold separately).

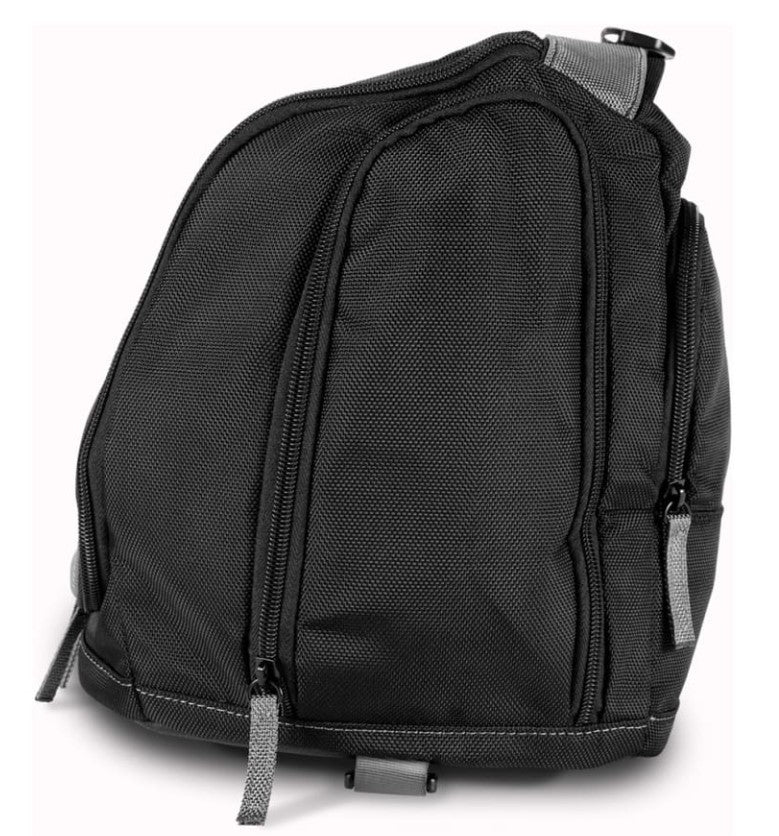

Where you take your bundle is up to you. But the rugged, glove-friendly portable carrying case lets you easily transport it from hole to hole and season to season.

Specifications

General

TOUCHSCREEN
Yes

INPUT
Touchscreen with Keyed Assist

DISPLAY SIZE
6.1" x 3.4", 7.0" (15.5 x 8.7, 17.8 cm)

DISPLAY RESOLUTION
800 x 480 pixels800 x 480 pixels800 x 480 pixels800 x 480 pixels800 x 480 pixels800 x 480 pixels800 x 480 pixels800 x 480 pixels800 x 480 pixels

DISPLAY TYPE
WVGA, TN

WEIGHT
11.0 lbs (5.0 kg)

WATERPROOF
IPX7

Maps & Memory

ACCEPTS DATA CARDS
1 microSD™ card; 32 GB maximum size

WAYPOINTS
5000

TRACK POINTS
50,000

TRACKS
50 saved tracks

NAVIGATION ROUTES
100

Ice Fishing Details

BATTERY TYPE, SIZE BATTERY TYPE, SIZE
SLA, 7Ah

BAG SIZE
Small

INCLUDED TRANSDUCER
GT10HN-IF

TRANSDUCER HOLDING FEATURE
Foam float

Sensors

HAS BUILT-IN RECEIVER
Yes

RECEIVER
10 Hz

NMEA 2000 COMPATIBLE
Yes

GPS
Yes

GLONASS
Yes

GALILEO
Yes

BEIDOU
Yes

SUPPORTS WAAS
Yes

SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS
Yes

Sonar Features & Specifications

DISPLAYS SONAR
Yes

POWER OUTPUT
500 W

TRADITIONAL SONAR (DUAL FREQUENCY/BEAM)
built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)

CLEARVU
built-in 260/455/800/1000/1200 kHz

SIDEVU
built-in 260/455/800/1000/1200 kHz

PANOPTIX™ SONAR
Yes

LIVESCOPE
Yes

Connections

NMEA 2000® PORTS
Yes

GARMIN MARINE NETWORK PORTS
1

12-PIN TRANSDUCER PORTS
1

BLUETOOTH® PAIRING
Yes

ANT+ (CONNECTIVITY)
Yes

GARMIN WI-FI NETWORK (LOCAL CONNECTION)
Yes

Input Voltage
9 to 18 Vdc

Dimensions
10.5" 9.5" 10.5" (26.7 22.9 26.7 cm)

What's in the Box:

• ECHOMAP™ UHD2 73sv chartplotter


• GT10HN-IF ice fishing transducer


• Tilt/swivel mount


• Portable bag


• Base/handle


• Foam float


• Power cable


• Rechargeable battery


• Battery charger


• Documentation
