Garmin ECHOMAP UHD2 93sv Panoptix Livescope Ice Bundle GN+ US Inalnd

Garmin ECHOMAP UHD2 93sv Panoptix Livescope Ice Bundle GN+ US Inalnd

Model: 010-02688-30

• SEE UP TO 200’ IN ANY DIRECTION WITH REAL-TIME SONAR


• USE LIVESCOPE™ FORWARD MODE SO YOU KNOW WHERE TO DRILL


• USE LIVESCOPE™ DOWN MODE SO YOU CAN KEEP AN EYE ON YOUR JIG AND THE FISH


• INCLUDES A RUGGED, PORTABLE CARRYING CASE

Drill fewer holes and catch more fish with the LiveScope Ice Fishing Bundle. It includes a 9-inch ECHOMAP™ UHD2 combo with LVS32-IF transducer and swivel pole mount.

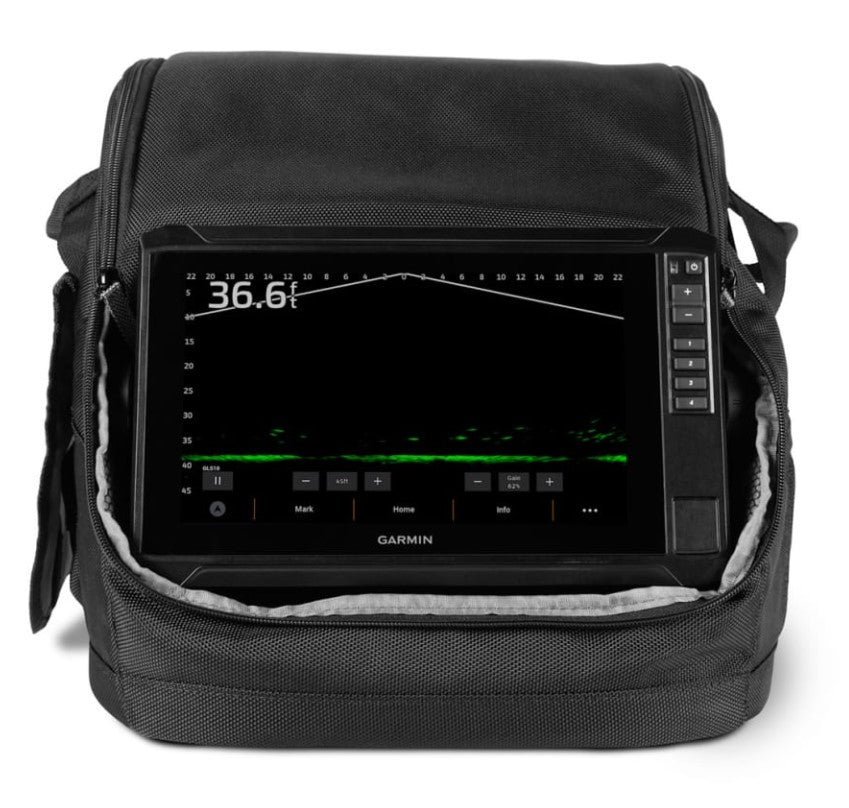

Revolutionary real-time sonar pairs with a large 9-inch ECHOMAP UHD2 combo touchscreen display with keyed assist, allowing you to see up to 200’ in any direction.

The LiveScope System offers two live-scanning sonar modes — Down and Forward. It features a transducer cable that stays flexible, even in freezing conditions

Get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.

You can create custom pages that combine sonar, flasher and map on your display.

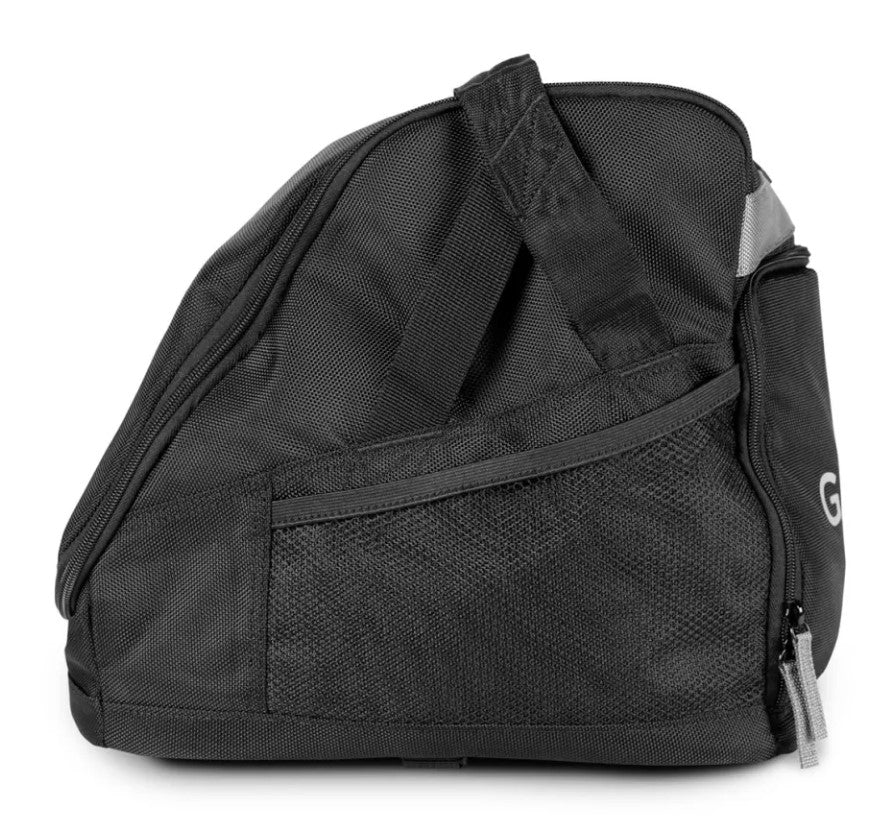

Where you take your bundle is up to you. But the rugged, glove-friendly portable carrying case lets you easily transport it from hole to hole and season to season.

Specifications

General

TOUCHSCREEN
Yes

INPUT
Touchscreen with Keyed Assist

DISPLAY SIZE
7.8" x 4.5", 9.0" (19.8 x 11.5, 22.9 cm)

DISPLAY RESOLUTION
1024 x 600 pixels

DISPLAY TYPE
WSVGA, TN

WEIGHT
26.9 lbs (12.2 kg)

WATERPROOF
IPX7

Maps & Memory

ACCEPTS DATA CARDS
1 microSD™ card; 32 GB maximum size

WAYPOINTS
5000

TRACK POINTS
50,000

TRACKS
50 saved tracks

NAVIGATION ROUTES
100

Ice Fishing Details

BATTERY TYPE, SIZE
SLA, 12Ah

BAG SIZE
Extra Large (XL)

INCLUDED TRANSDUCER
LiveScope™ System with LVS32-IF

TRANSDUCER HOLDING FEATURE
Pole mount

Sensors

HAS BUILT-IN RECEIVER
Yes

RECEIVER
10 Hz

NMEA 2000 COMPATIBLE
Yes

GPS
Yes

GLONASS
Yes

GALILEO
Yes

BEIDOU
Yes

SUPPORTS WAAS
Yes

SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS
Yes

Connections

NMEA 2000® PORTS
Yes

GARMIN MARINE NETWORK PORTS
1

12-PIN TRANSDUCER PORTS
1

BLUETOOTH® PAIRING
Yes

ANT+ (CONNECTIVITY)
Yes

GARMIN WI-FI NETWORK (LOCAL CONNECTION)
Yes

Input Voltage
9 to 18 Vdc

Dimensions
13.8" 12.2" 13.0" (35 31 33 cm)

What's in the Box:

• ECHOMAP™ UHD2 chartplotter


• LVS32-IF transducer


• LVS32-IF transducer


• GLS™ 10 sonar module


• Ice fishing pole mount


• Tilt mount


• Power cable


• Portable fishing bag with handle


• Rechargeable battery


• Battery charger


• Documentation
