Garmin ECHOMAP UHD2 93sv Panoptix Livescope PLUS Ice Bundle GN+ US Inalnd

Garmin ECHOMAP UHD2 93sv Panoptix Livescope PLUS Ice Bundle GN+ US Inalnd

Model: 010-02688-35

• GET IMPROVED CLARITY, SENSITIVITY AND TARGET SEPARATION


• SCAN SURROUNDINGS WITH REDUCED NOISE AND FEWER SONAR ARTIFACTS


• USE LIVESCOPE™ FORWARD MODE SO YOU KNOW WHERE TO DRILL


• USE LIVESCOPE™ DOWN MODE SO YOU CAN KEEP AN EYE ON YOUR JIG AND THE FISH


• FISH LONGER WITH A 16.5AH LIGHTWEIGHT LITHIUM-ION BATTERY


• INCLUDES A RUGGED, PORTABLE CARRYING CASE

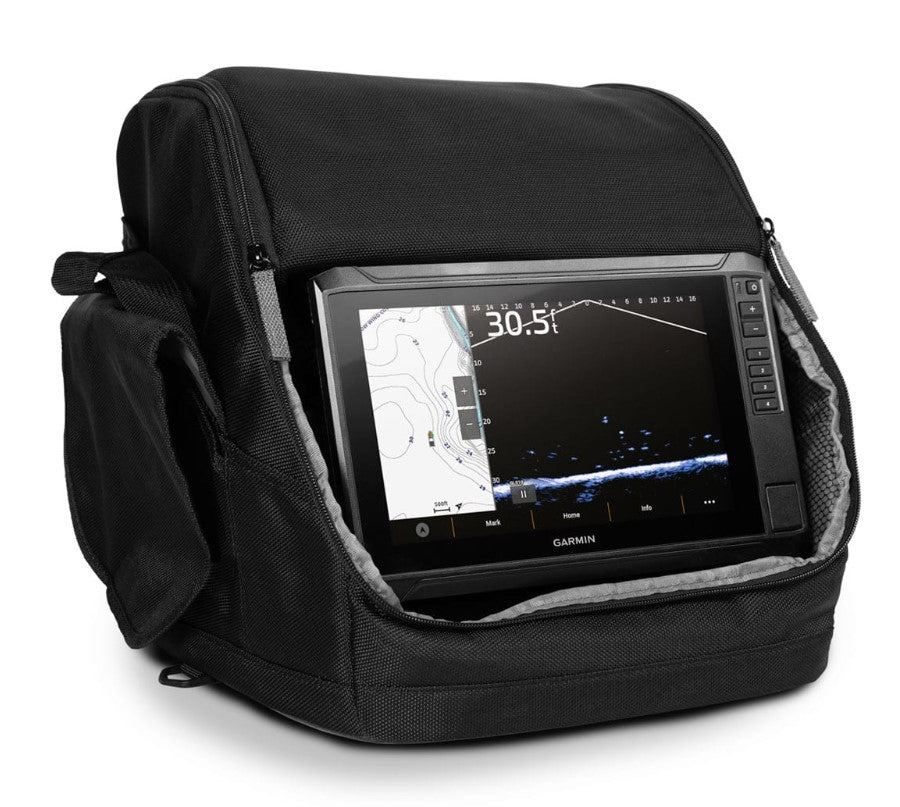

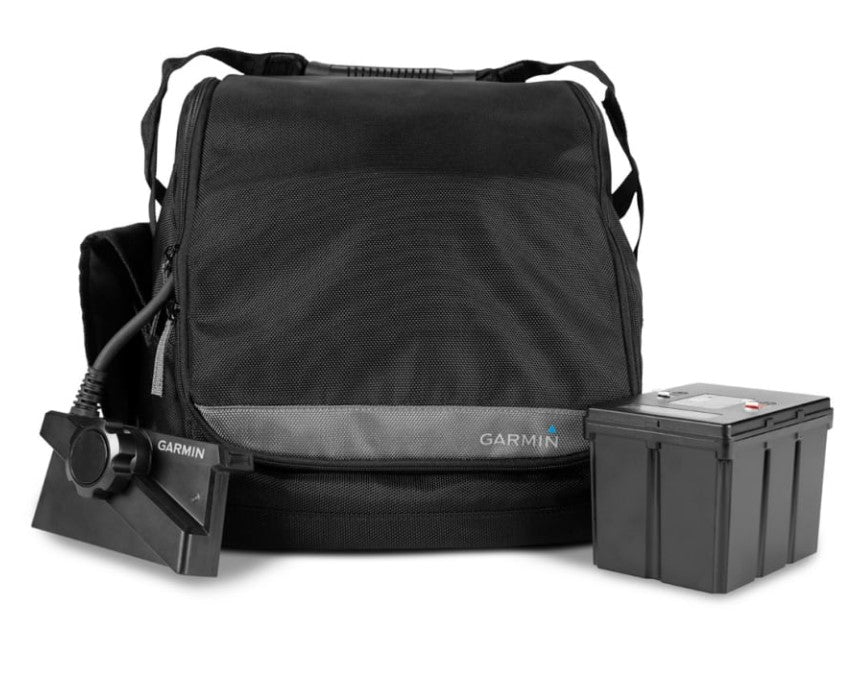

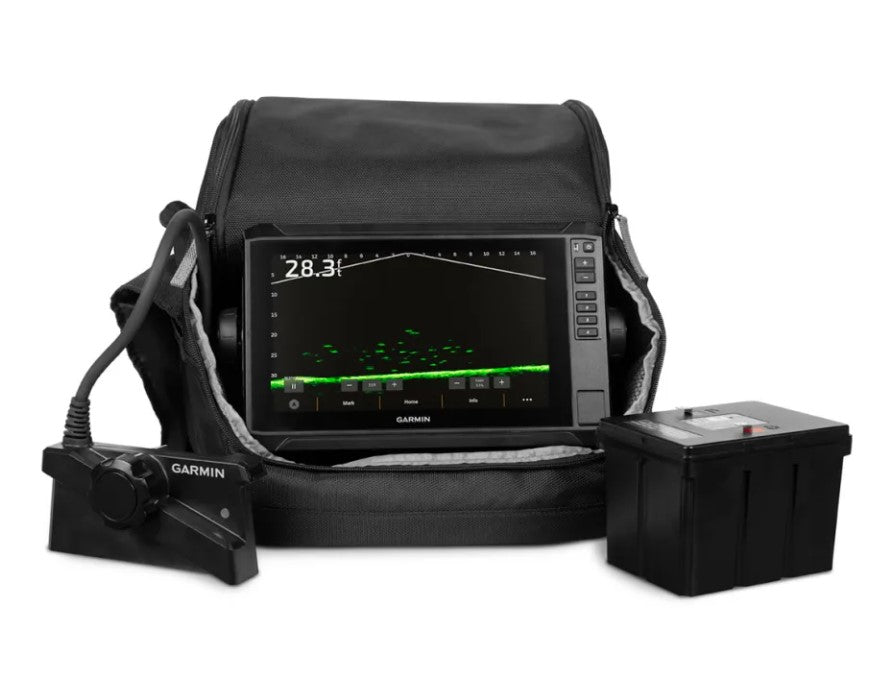

Get improved resolution, reduced noise, clearer images and better target separation with the LiveScope™ Plus Ice Fishing Bundle LI. It includes a 9-inch ECHOMAP™ UHD2 combo, the complete LiveScope Plus System with LVS34-IF transducer, swivel pole mount and a lightweight lithium battery.

Revolutionary real-time sonar pairs with a large 9-inch ECHOMAP UHD2 combo touchscreen display with keyed assist, allowing you to see up to 200’ in any direction.

The LiveScope System offers two live-scanning sonar modes — Down and Forward. It features a transducer cable that stays fle

Get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.

You can create custom pages that combine sonar, flasher and map on your display.

Fish even longer with a lightweight 16.5Ah lithium battery that won’t weigh you down on the ice.

Specifications

General

TOUCHSCREEN
Yes

INPUT
Touchscreen with Keyed Assist

DISPLAY SIZE
7.8" x 4.5", 9.0" (19.8 x 11.5, 22.9 cm)

DISPLAY RESOLUTION
1024 x 600 pixels

DISPLAY TYPE
DISPLAY TYPE

WEIGHT
22.5 lbs (10.2 kg)

WATERPROOF
IPX7

Maps & Memory

ACCEPTS DATA CARDS
1 microSD™ card; 32 GB maximum size

WAYPOINTS
5000

TRACK POINTS
50,000

TRACKS
50 saved tracks

NAVIGATION ROUTES
100

Ice Fishing Details

BATTERY TYPE, SIZE
Lithium-ion, 16.5Ah

BAG SIZE
Extra Large (XL)

INCLUDED TRANSDUCER
LiveScope™ Plus System with LVS34-IF

TRANSDUCER HOLDING FEATURE
Pole mount

Sensors

HAS BUILT-IN RECEIVER
Yes

RECEIVER
10 Hz

NMEA 2000 COMPATIBLE
Yes

GPS
Yes

GLONASS
Yes

GALILEO
Yes

BEIDOU
Yes

SUPPORTS WAAS
Yes

SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS
Yes

Sonar Features & Specifications

DISPLAYS SONAR
Yes

POWER OUTPUT
500 W

TRADITIONAL SONAR (DUAL FREQUENCY/BEAM)
built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)

CLEARVU
built-in 260/455/800/1000/1200 kHz

SIDEVU
built-in 260/455/800/1000/1200 kHz

PANOPTIX™ SONAR
Yes

LIVESCOPE
Yes

Connections

NMEA 2000® PORTS
Yes

GARMIN MARINE NETWORK PORTS
1

12-PIN TRANSDUCER PORTS
1

BLUETOOTH® PAIRING
Yes

ANT+ (CONNECTIVITY)
Yes

GARMIN WI-FI NETWORK (LOCAL CONNECTION)
Yes

Input Voltage
9 to 18 Vdc

Dimensions
13.8" 12.2" 13.0" (35 31 33 cm)

What's in the Box:

• ECHOMAP™ UHD2 chartplotter


• LVS34-IF transducer


• GLS™ 10 sonar module


• Ice fishing pole mount


• Tilt mount


• Power cable

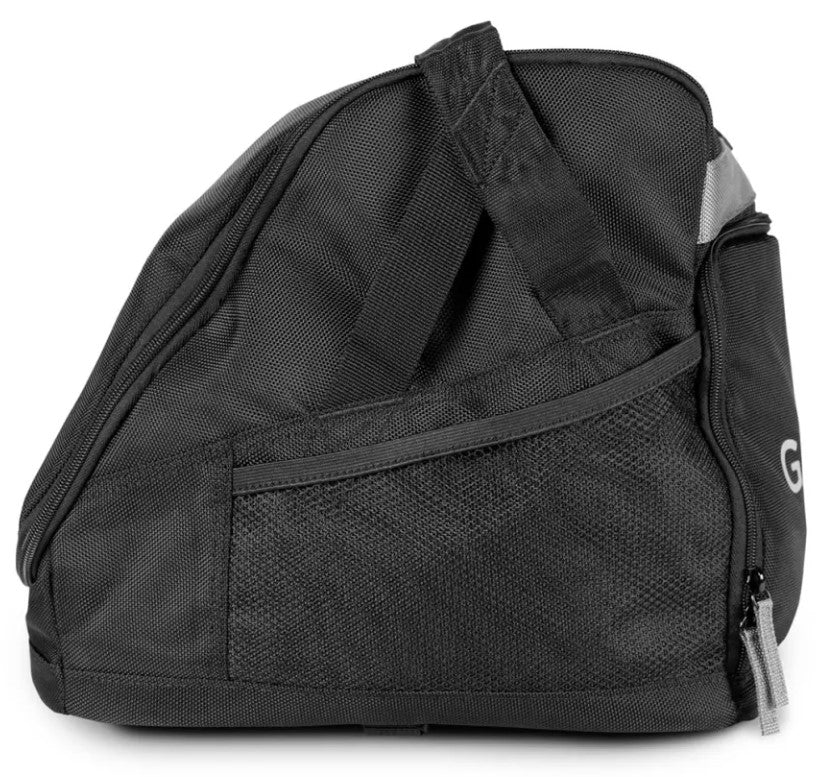

• Portable fishing bag with handle


• Lithium-ion battery


• Battery charger


• Documentation
