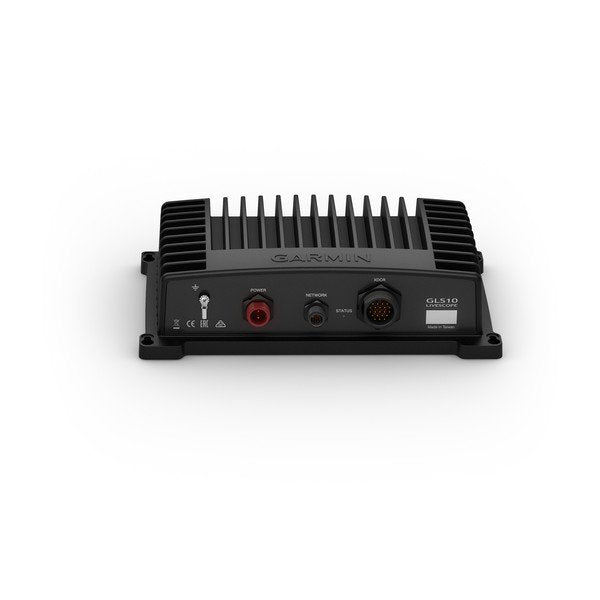

Garmin GLS10 Sonar Module

The easy-to-install, networkable GLS 10 sonar black box allows you to see live, real-time scanning sonar. Add the LVS32 transducer model to see easy-to-interpret live scanning sonar images of structure, bait and fish swimming below and around your boat. And you can share sonar images seamlessly across multiple networked chartplotters.

Requires LVS32, not included

Physical dimensions
9.6" x 5.9" x 2.6" (24.5 x 14.9 x 6.5 cm)

Weight
4.3 lbs (2.0 kg)

Water rating
IPX7

Garmin Marine Network™ ports
1 (small connector)

Temperature range
Operating: -15 C to 70 C

Sonar Features & Specifications

Frequencies supported
530 - 1,100 kHz

Transmit power
500 W

Maximum depth
Down and Forward: 200’ (61.0 m)

Electrical

Power input
10-32 V

Power usage
21 W typical, 58 W max

Fuse
7.5 A

What's in the Box:

• GLS 10 sonar module


• Power cable


• 2 meter Garmin marine network cable, small connector


• Network adapter cable


• Mounting hardware


• Documentation
