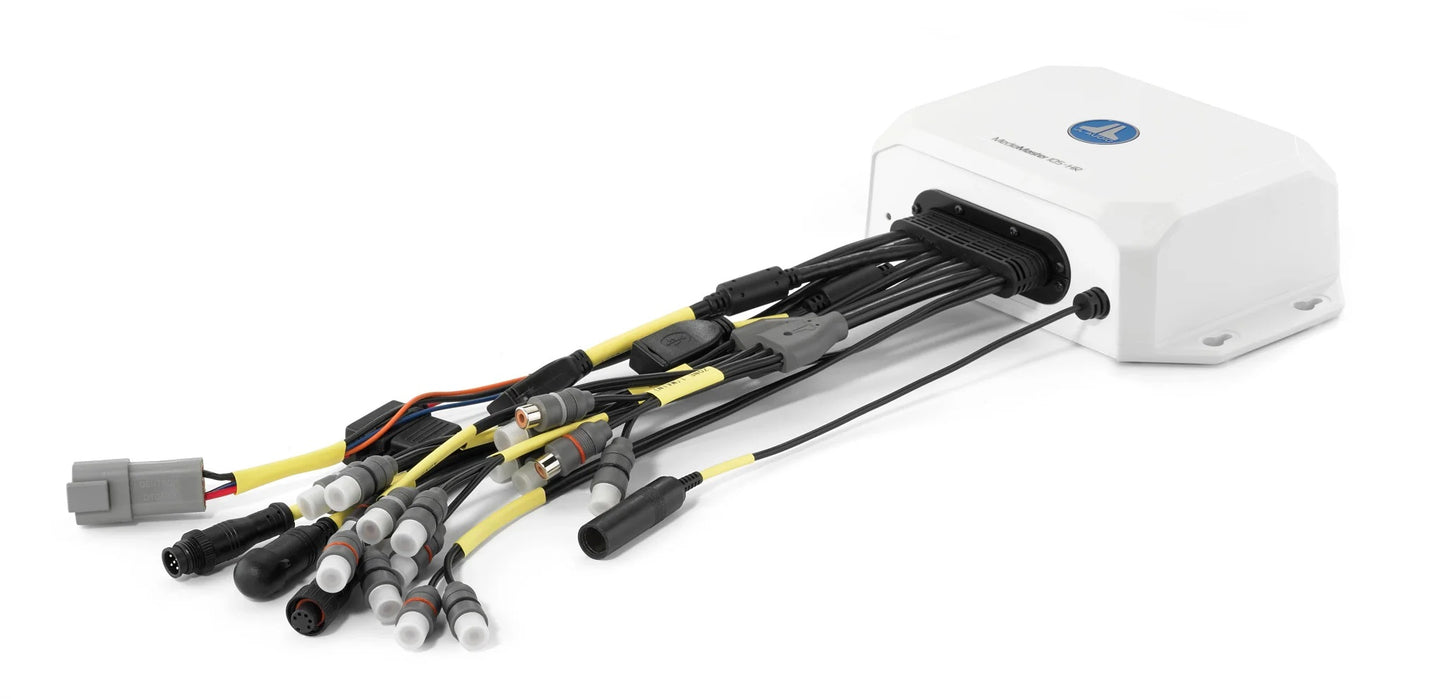

JL Audio MediaMaster 105 Weatherproof Hidden Source Unit

JL Audio MediaMaster 105 Weatherproof Hidden Source Unit

Jl Audio MM105-HR Premium, Hidden Marine Source Unit

Model: MM105-HR

• 12-channels of audiophile quality, 4V RMS preamp level outputs


• NMEA 2000® MFD Control - Use your compatible Multi-Function Display from Garmin, Simrad, Lowrance or Raymarine (refer to MFD manufacturer for compatibility info)


• MMR-40 NMEA 2000® Network Controller (sold separately) - Full-function, water-resistant (IP66 rated) controller with full-color LCD display


• Four separate audio zones, each with independent feature/control options:


• Available Digital HD Radio™ (North America) and DAB+ Radio (Europe) tuners for the best in broadcast sound quality and selection


• Global AM/FM radio tuner with RDS (Radio Data System), to display extended FM program info, where available


• SiriusXM-Ready™ (tuner, antenna and subscription sold separately)


• SiriusXM-Ready™ (tuner, antenna and subscription sold separately)


• Bluetooth® audio streaming with Qualcomm® aptX™ for maximum audio fidelity with compatible devices


• USB1 and USB2 direct-digital connections access music files on your compatible iPhone® or USB storage device; includes 1A and 500mA charging outputs


• AUX1 and AUX2 inputs accepts analog audio signals from a variety of audio sources


• Certified NMEA 2000® Connectivity - MFD (Multi-Function Display) vessel control functionality using applicable network cables and connectors (sold separately).

Engineered to operate behind the scenes as a hideaway receiver, the MediaMaster® 105-HR includes all features of the MM105, minus the LCD display and physical controls. This full-featured, concealed source unit delivers top-flight sound performance and advanced audio features specifically designed for marine applications. Outfitted with NMEA-2000® connectivity, the MM105-HR can be controlled by your Garmin, Lowrance, Raymarine or Simrad Multi-Function Display (MFD) or MMR-40 NMEA 2000® Network Controller (sold separately).

Because sound quality is our top priority, the MM105-HR is not equipped with an internal amplifier designed to drive loudspeakers directly. Instead, it offers twelve channels of audiophile-quality, preamp level outputs to deliver crystal-clear signals to high-quality marine amplifiers. These are deployed via four configurable, nameable audio zones, each with its own set of independent control options, making the MM105-HR adaptable to a wide range of system types. On-the-fly, level controls make adjusting each or all audio zones a breeze, while a useful volume limit feature ensures that nobody gets blasted inadvertently. All zones feature our Zero-Clipping audio circuit design, with self-limiting tone controls to keep the audio clean at high listening levels, reducing the likelihood of speaker damage.

Specifications

General Specifications

Input Operating Voltage
10 - 15.9 VDC

Standby Current Draw
120 mA

Operating Current Draw
1.5 A

Recommended Fuse Value
5 A

Remote Turn-on Capacity
500 mA (max)

Operating Temperature Range
-4 F to +158 F (-20 C to +70 C)

Output Channels
One stereo pair and mono subwoofer RCA plugs per zone

Output Zones
Relative, Absolute, Fixed or Off

Maximum Output Voltage
4V RMS (Relative or Absolute), Selectable 4V/2V/1V RMS (Fixed)

Tuner

FM Tuner with RDS
87.5 MHz to 107.9 MHz (0.2 MHz step)

AM Tuner
530 kHz to 1710 kHz (10 kHz step)

DAB+ Tuner
170 MHz to 230 MHz

Favorites
24 presets across all tuners

Bluetooth®

Profile
A2DP v1.2, AVRCP v1.4

Core Specification
Version 2.1 + EDR

Codec
SBC, Qualcomm® aptX™ audio

Connection Range
Up to 35 ft / 11 m

USB

Interface
USB 2.0 host

Maximum Current Output
USB1: 1 A / USB2: 500 mA

Supported Audio Formats
MP3, MP4, WAV, AAC, M4A, M4B

Apple Compatibility
iPhone 5 or beyond (functionality contingent upon compatible iOS release)

What's in the Box:

• MM105-HR Black Box


• Powercord


• #8 x 1 in screw x 4
