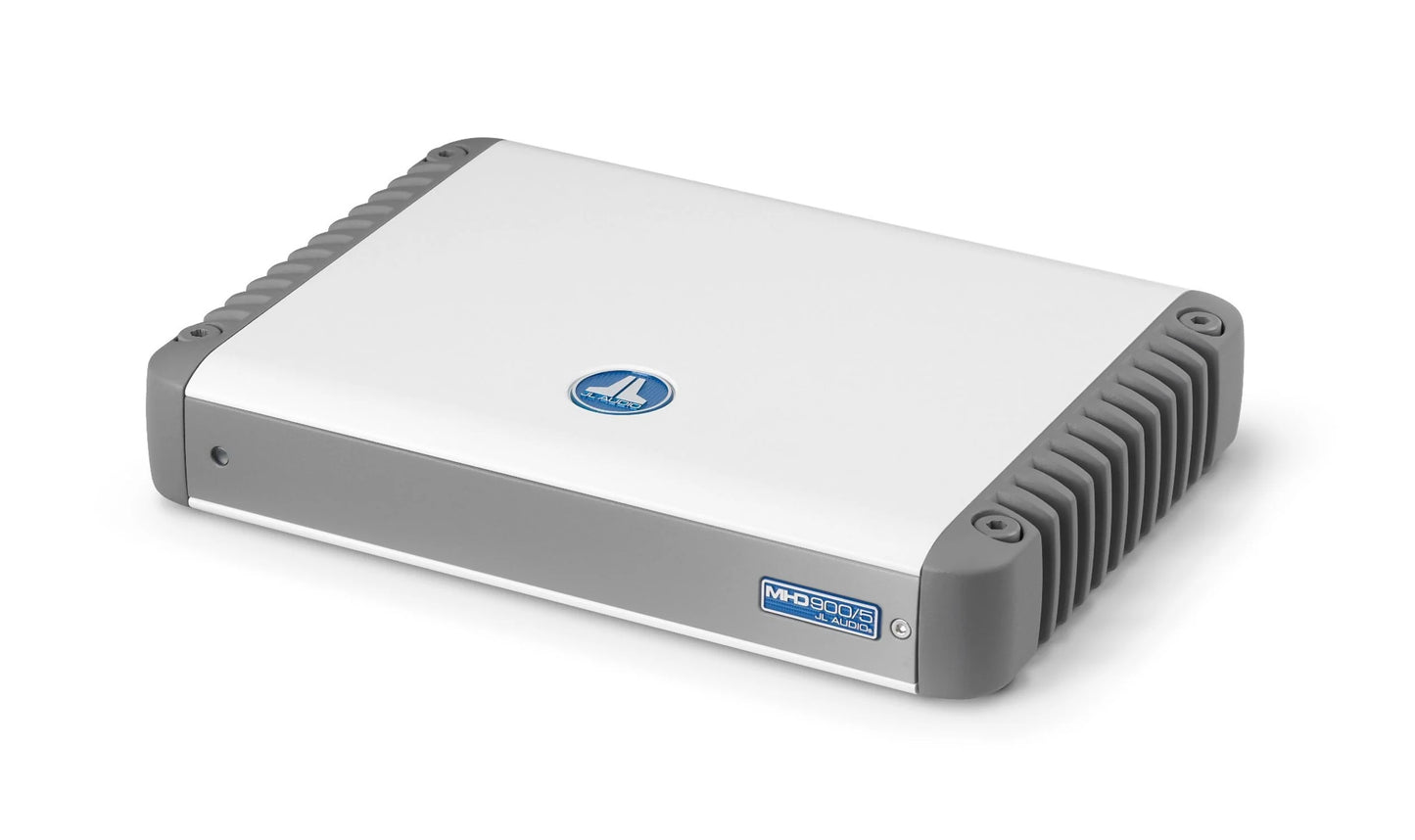

JL Audio MHD Marine Amplifier 5-Channel Full-Range 900 Watts 24v

JL Audio MHD Marine Amplifier 5-Channel Full-Range 900 Watts 24v

98229

Model: MHD900/5-24V

For 24V systems only: 5-Channel Class D Marine System Amplifier, 100 W x 4 + 500 W x 1

Thanks to its ability to act as a "one-box solution", the MHD900/5-24V is ideal for installations where space is at a premium and sound quality is the paramount goal.

While extremely compact, this amazing amplifier will comfortably drive a complete high-performance marine audio system: that is, four satellite speaker systems and a subwoofer system... with a very serious 900 watts of power!

Using our Single Cycle Control switching design and R.I.P.S technology, the MHD900/5-24V delivers 100 W x 4 to its four main channels, plus a very meaty 500W to its subwoofer channel. Thanks to R.I.P.S., high power can be delivered over a wide range of load impedances, while the tight power supply regulation keeps distortion down, maximizing sound quality.

This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.

This amplifier is designed for operation in vessels with 24 volt, negative-ground electrical systems. Use of this product in vessels with positive ground and/or voltages other than 24 V may result in damage to the product and will void the warranty.

USA Limited Warranty: Two (2) years from the original date of purchase.

Specifications

Rated Continuous (RMS) Power @ 28.8 V

Main Channels @ 4 ohms
100 W RMS x 4

Main Channels @ 3 ohms
75 W RMS x 4

Main Channels @ 2 ohms
75 W RMS x 4

Main Channels @ 1.5 ohms
75 W RMS x 4

Main Channels - Bridged @ 8 ohms
200 W RMS x 2

Main Channels - Bridged @ 4 ohms
150 W RMS x 2

Subwoofer Channel @ 4 ohms
500 W RMS x 1

Subwoofer Channel @ 3 ohms
500 W RMS x 1

Subwoofer Channel @ 2 ohms
500 W RMS x 1

Subwoofer Channel @ 1.5 ohms
500 W RMS x 1

Rated Continuous (RMS) Power @ 25 V

Main Channels @ 4 ohms
100 W RMS x 4

Main Channels @ 3 ohms
75 W RMS x 4

Main Channels @ 2 ohms
75 W RMS x 4

Main Channels @ 1.5 ohms
75 W RMS x 4

Main Channels - Bridged @ 8 ohms
200 W RMS x 2

Main Channels - Bridged @ 4 ohms
150 W RMS x 2

Subwoofer Channel @ 4 ohms
500 W RMS x 1

Subwoofer Channel @ 3 ohms
500 W RMS x 1

Subwoofer Channel @ 2 ohms
500 W RMS x 1

Subwoofer Channel @ 1.5 ohms
500 W RMS x 1

General Specifications

Frequency Response (Main Channels)
12 Hz - 28 kHz (+0, -1dB)

Frequency Response (Subwoofer Channel)
12 Hz - 10 kHz (+0, -1dB)

S/N Ratio, referred to highest rated power (Main Channels)
>108.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)

S/N Ratio, referred to 1 W (Main Channels)
>88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)

Damping Factor @ 4 ohms
>400 / 50 Hz

Damping Factor @ 2 ohms
>200 / 50 Hz

THD+N @ Rated Power (Main Channels)
<0.03% @ 4 ohms

THD+N @ Rated Power (Subwoofer Channel)
<0.05% @ ohms

Input Voltage Range @ RCA Inputs
Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)

Min.Copper Power / Ground Wire Gauge
Accepts up to 4 AWG wire

Fuse Rating
30 A (AFS, AGU or MaxiFuse™)

Signal Processing

Filter Mode(s): Channels 1 & 2 (front)
High-Pass only

Filter Slope(s): Channels 1 & 2 (front)
12/24 dB/octave

Filter Frequency Range: Channels 1 & 2 (front)
50 Hz - 500 Hz

Filter Mode(s): Channels 3 & 4 (rear)
High-Pass only

Filter Slope(s): Channels 3 & 4 (rear)
12/24 dB/octave

Filter Frequency Range: Channels 3 & 4
50 Hz - 500 Hz

Filter Mode(s): Subwoofer Channel
Low-Pass only

Filter Slope(s): Subwoofer Channel
12/24 dB/octave

Filter Frequency Range: Subwoofer Channel
50 Hz - 500 Hz

Detented, Calibrated Filter Freq. Potentiometers
Yes

Filter Defeat Function
Yes

Infrasonic Filter: Subwoofer Channel
30 Hz, Defeatable

Remote Level Control
Optional (HD-RLC)

Remote Level Modes
Sub Ch. Only

Channel Input Mode Switch
Yes (2/4/6 ch.)

Pass-Through Preamp Output
None

Source Channel Selection for PreOuts
N/A

Physical Specifications

Height
1.93 in / 49 mm

Width
10.74 in / 273 mm

Depth
7.85 in / 199 mm

Net Weight
6.85 lb / 3.11 kg
