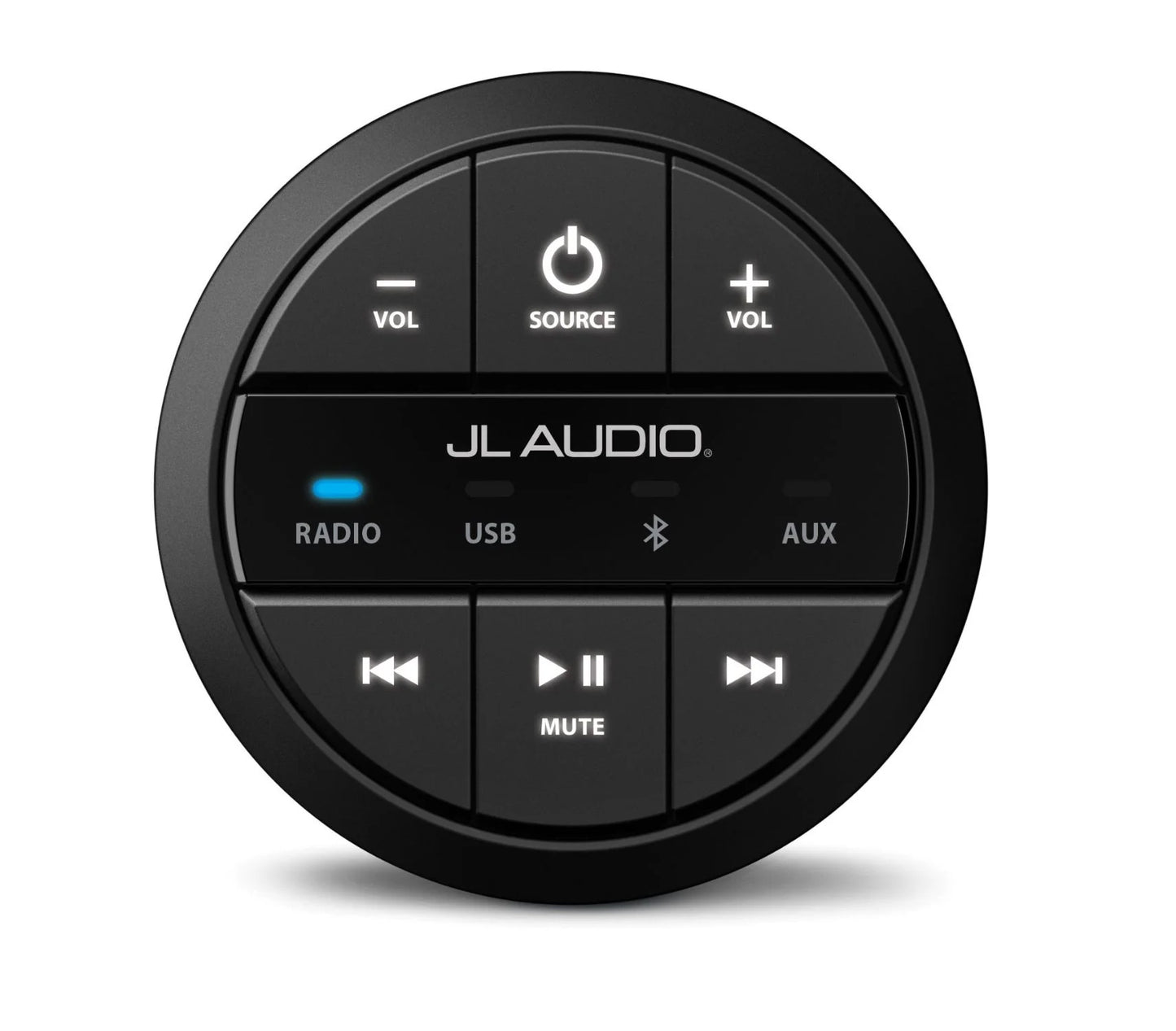

JL Audio MMR-20-BE Round Wired Remote for MediaMaster

JL Audio MMR-20-BE Round Wired Remote for MediaMaster

99921

• Power On/Off


• Source Select


• Volume Up/Down


• Track Up/Down (USB & BT)


• Track Fast-Forward/Fast-Rewind (USB)


• Favorite Up/Down (Radio)


• Play/Pause (USB & BT)


• Mute/Unmute (Radio & Aux)

Round, wired, non-display remote controller for use with MediaMaster®

The MMR-20-BE is a wired remote controller engineered to add auxiliary control functionality to MediaMaster® source units.

Built for marine and off-road applications, its weatherproof (IP67 rated) design places frequently used functions of your MediaMaster® source unit in a simple, intuitive design that’s easy-to-use. Its large, backlit controls and LED source indicators are easily identifiable, day or night, with brightness settings that can be adjusted using your MediaMaster® source unit.

A small footprint and simple, one-hole design means the MMR-20-BE can be installed in even the tightest of spaces. Depending on your system layout, you may add up to three MMR-20-BE remote controllers to a single MediaMaster® source unit. Each MMR-20 can be connected up to 75 ft. (22.8 m) away from its source unit.

USA Limited Warranty: Two (2) years from the original date of purchase.

Note: Requires MMC Connection Cables (sold separately). Connection cables are available in several lengths to fit your specific application. Y-splitters are also available to connect up to three remotes to a MediaMaster® source unit.

Maximum Mounting Panel Thickness
1.5 in / 38 mm

Mounting Hole Diameter
2 in / 50 mm

Rear Depth*
1.16 in / 29 mm

Width
2.36 in / 60 mm

Height
2.36 in / 60 mm

Depth
0.59 in / 15 mm

*Total mounting depth is greater (and varies by installation) with mounting bracket.
