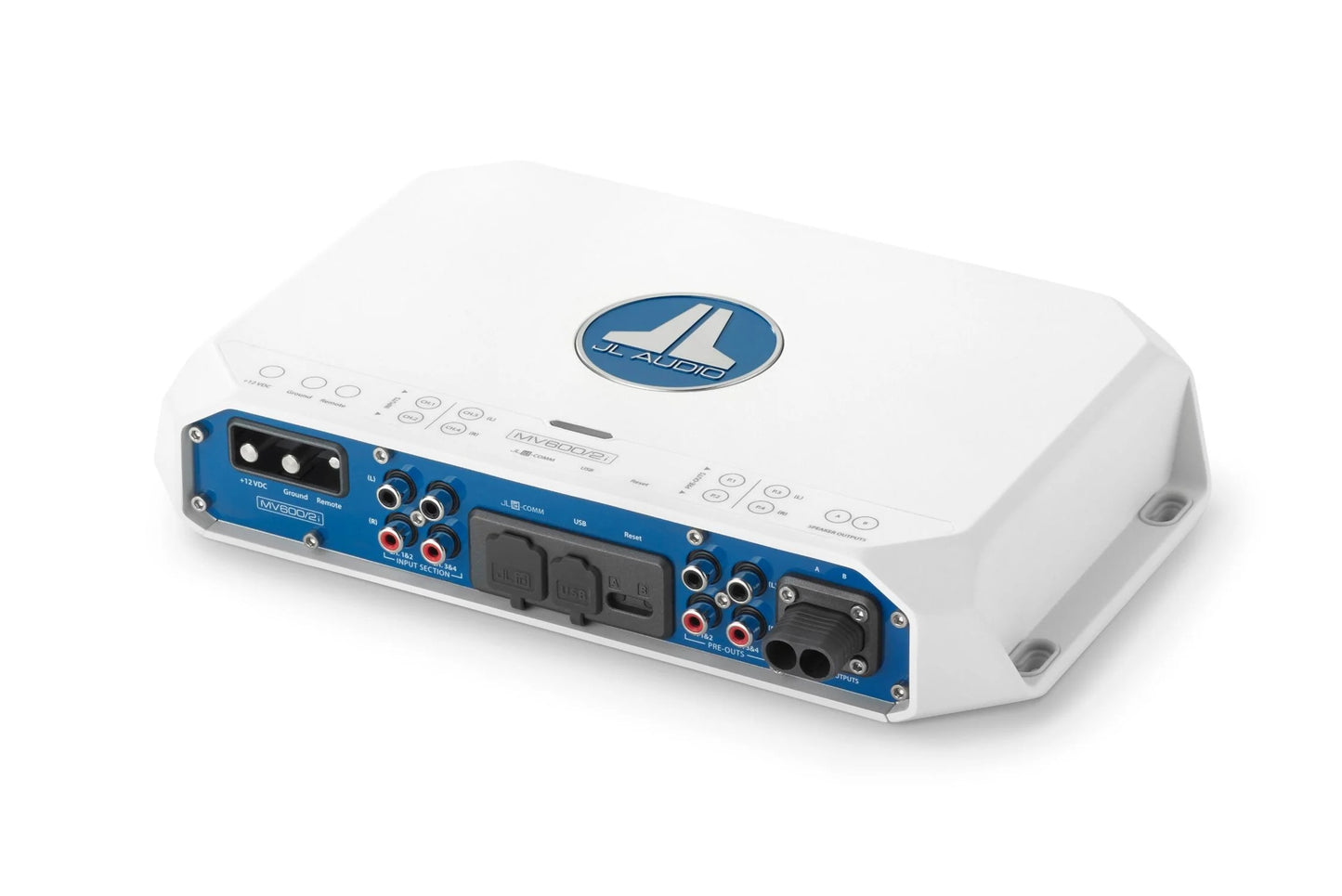

JL Audio MVi Marine Amplifier 2 Channel Full-Range 600 Watts 12v Integrated DSP

JL Audio MVi Marine Amplifier 2 Channel Full-Range 600 Watts 12v Integrated DSP

JL Audio MVi Marine Amplifier 2 Channel Full-Range 2 Channel Full-Range 600 Watts 12v Integrated DSP

98646

2-Channel Class D Full-Range Marine Amplifier with Integrated DSP, 300 W x 2 @ 2 ohms / 180 W x 2 @ 4 ohms- 14.4V

Engineered to deliver reference-grade audio performance in marine environments, every MVi amplifier unites our cutting-edge NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

Outfitted with our second-generation NexD2™ technology, the MV600/2i produces up to 180 watts per channel into 4 ohms, or a powerful 300 watts into 2 ohms. It can also be bridged into 4 ohms to generate a stunning 600 W x 1.

The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. Housed in a compact, cast alloy chassis with marine-grade powder coat finish, the MV600/2i is outfitted with corrosion-resistant hardware and connectors.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN® Software application installed.

USA Limited Warranty: Two (2) years from the original date of purchase.

@ 4 ohms
180 W RMS x 2

@ 2 ohms
300 W RMS x 2

Bridged @ 4 ohms
600 W RMS x 1

Rated Continuous (RMS) Power @ 12.5 V

@ 4 ohms
140 W RMS x 2

@ 2 ohms
225 W RMS x 2

Bridged @ 4 ohms
450 W RMS x 1

General Specifications

Frequency Response
12 Hz - 24 kHz (+0, -1dB)

S/N Ratio, referred to highest rated power (Analog Inputs)
99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)

S/N Ratio, referred to 1 W (Analog Inputs)
76 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)

Damping Factor @ 4 ohms
>100 / 50 Hz

Damping Factor @ 2 ohms
>50 / 50 Hz

THD+N @ Rated Power
<1% @ 2 ohms per Ch.

Input Voltage Range @ RCA Inputs
250 mV - 16 V RMS

Min.Copper Power / Ground Wire Gauge
4 AWG wire

Fuse Rating
50 A (AFS, AGU or MaxiFuse™)

IP Rating
IPX2 (when mounted vertically with connections pointed downward)

Physical Specifications

Height
2.05 in / 52 mm

Width
11.20 in / 285 mm

Depth
6.93 in / 176 mm

Net Weight
5.0 lb / 2.27 kg

What's in the Box:

• MV600/2i Amplifier


• Power Connector (for 4 AWG wire)


• Speaker Output Harnesses (2)


• 6 ft A/B USB Cable
