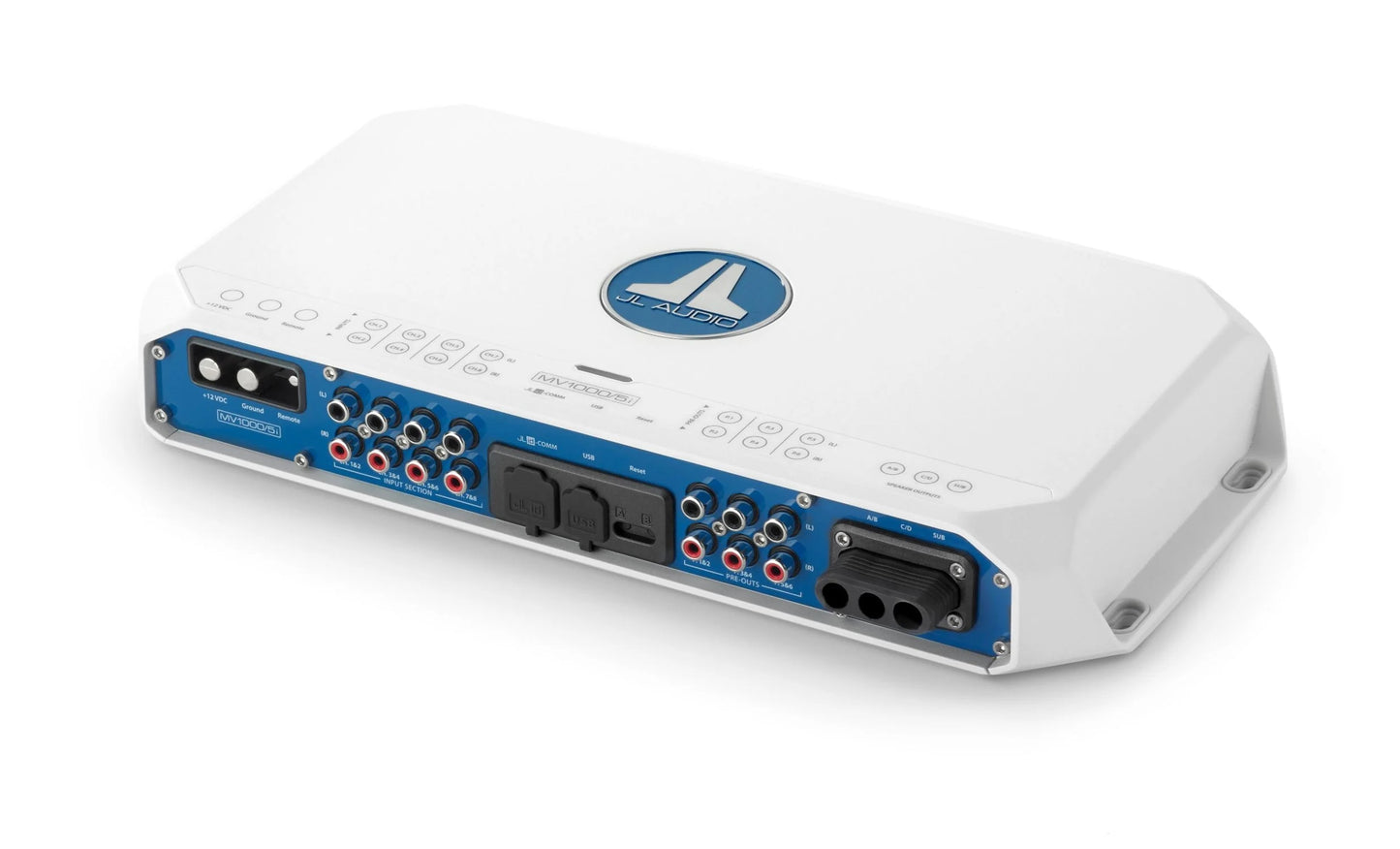

JL Audio MVi Marine Amplifier 5 Channel Full-Range 1000 Watts 12v Integrated DSP

JL Audio MVi Marine Amplifier 5 Channel Full-Range 1000 Watts 12v Integrated DSP

98651

Model: MV1000/5i

5-Channel Class D Marine System Amplifier with Integrated DSP, 100 W x 4 @ 2 ohms + 600 W x 1 @ 2 ohms - 14.4V

Engineered to deliver reference-grade audio performance in marine environments, every MVi amplifier unites our cutting-edge NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

Equipped with our second-generation NexD2™ technology, the MV1000/5i is capable of powering a complete marine audio system. It can drive four main speakers with 75 W x 4 @ 4 ohms, while also powering a subwoofer with up to 600W @ 2 ohms. Bridging the main channels transforms it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels and 600W @ 2 ohms on the subwoofer channel.

The NexD2™ full-range technology in the main channels of this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The subwoofer channel features an optimized low-frequency variant of the NexD2™ technology. The amplifier chassis is a ultra-compact, cast alloy design with marine-grade powder coat finish and corrosion-resistant hardware.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN® Software application installed.

USA Limited Warranty: Two (2) years from the original date of purchase.

Specifications

Rated Continuous (RMS) Power @ 14.4 V

Main Channels @ 4 ohms
75 W RMS x 4

Main Channels @ 2 ohms
100 W RMS x 4

Main Channels - Bridged @ 4 ohms
200 W RMS x 2

Subwoofer Channel @ 4 ohms
400 W RMS x 1

Subwoofer Channel @ 3 ohms
500 W RMS x 1

Subwoofer Channel @ 2 ohms
600 W RMS x 1

Subwoofer Channel @ 1.5 ohms
N/A

Rated Continuous (RMS) Power @ 12.5 V

Main Channels @ 4 ohms
60 W RMS x 4

Main Channels @ 2 ohms
90 W RMS x 4

Main Channels - Bridged @ 4 ohms
180 W RMS x 2

Subwoofer Channel @ 4 ohms
360 W RMS x 1

Subwoofer Channel @ 3 ohms
480 W RMS x 1

Subwoofer Channel @ 2 ohms
600 W RMS x 1

Subwoofer Channel @ 1.5 ohms
N/A

General Specifications

Frequency Response (Main Channels)
12 Hz - 24 kHz (+0, -1dB)

S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels)
99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)

S/N Ratio, referred to highest rated power (Analog Inputs - Subwoofer Channel)
99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)

S/N Ratio, referred to 1 W (Analog Inputs - Main Channels)
80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)

S/N Ratio, referred to 1 W (Analog Inputs - Subwoofer Channel)
72 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)

Damping Factor @ 2 ohms
>50 / 50 Hz

Damping Factor @ 4 ohms
>150 / 50 Hz

THD+N @ Rated Power (Main Channels)
<1% @ 2 ohms per Ch.

THD+N @ Rated Power (Subwoofer Channels)
<1% @ 2 ohms per Ch.

Input Voltage Range @ RCA Inputs
250 mV - 16 V RMS

Min.Copper Power / Ground Wire Gauge
4 AWG wire

Fuse Rating
80 A (AFS, AGU or MaxiFuse™)

Physical Specifications

Height
2.05 in / 52 mm

Width
13.96 in / 355 mm

Depth
6.93 in / 176 mm

Net Weight
5.6 lb / 2.54 kg

What's in the Box:

• MV1000/5i Amplifier


• Power Connector (for 4 AWG wire)


• Speaker Output Harnesses (2)


• Subwoofer Output Harness


• 6 ft A/B USB Cable
