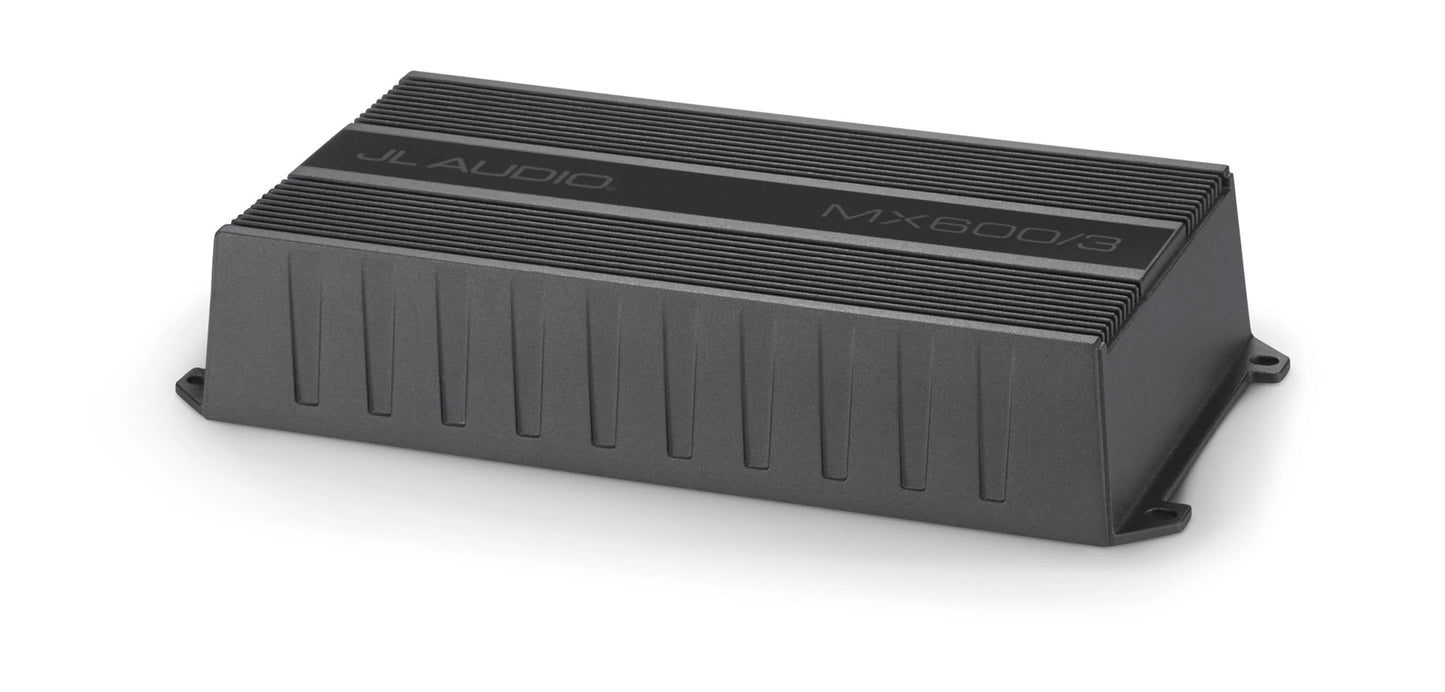

JL Audio MX Marine Amplifier 3-Channel Full-Range 600 Watts 12v

JL Audio MX Marine Amplifier 3-Channel Full-Range 600 Watts 12v

98409

Model: MX600/3

3-Channel Class D System Amplifier, 100 W x 2 + 400 W x 1 @ 2 ohms / 75 W x 2 + 250 W x 1 @ 4 ohms - 14.4V

Engineered specifically for powersports applications, the 3-channel MX600/3 amplifier employs our high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum housing is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.

Generating a potent 75W x 2 into 4 ohms, plus a solid 400 watts for a subwoofer system, the MX600/3 makes a great all-in-one solution for driving a complete audio system from a single, ultra-compact chassis.

Onboard filters include a 12 dB / octave high-pass crossover on the main channels and a dedicated 24 dB / octave low-pass crossover for the subwoofer channel. Other features include a bass boost EQ, variable infrasonic filter and subwoofer output polarity switch. A dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.

This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.

USA Limited Warranty: Two (2) years from the original date of purchase.

Specifications

Rated Continuous (RMS) Power @ 14.4 V

Main Channels @ 4 ohms
75 W RMS x 2

Main Channels @ 2 ohms
100 W RMS x 2

Main Channels - Bridged @ 4 ohms
200 W RMS x 1

Subwoofer Channel @ 4 ohms
250 W RMS x 1

Subwoofer Channel @ 3 ohms
300 W RMS x 1

Subwoofer Channel @ 2 ohms
400 W RMS x 1

Subwoofer Channel @ 1.5 ohms
N/A

Rated Continuous (RMS) Power @ 12.5 V

Main Channels @ 4 ohms
50 W RMS x 2

Main Channels @ 2 ohms
80 W RMS x 2

Main Channels - Bridged @ 4 ohms
100 W RMS x 1

Subwoofer Channel @ 4 ohms
200 W RMS x 1

Subwoofer Channel @ 3 ohms
250 W RMS x 1

Subwoofer Channel @ 2 ohms
300 W RMS x 1

Subwoofer Channel @ 1.5 ohms
N/A

General Specifications

Frequency Response
20 Hz - 20 kHz (+0, -1dB)

S/N Ratio, referred to highest rated power
>88 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)

S/N Ratio, referred to 1 W
>68 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)

Damping Factor @ 4 ohms
>92 / 50 Hz

Damping Factor @ 2 ohms
>43 / 50 Hz

THD+N @ Rated Power (Main Channels)
<1% @ 2 ohms per Ch.

THD+N @ Rated Power (Subwoofer Channels)
<1% @ 2 ohms per Ch.

Input Voltage Range @ RCA Inputs
Switchable from 250 mV - 4 V RMS (Low) to 580 mV - 14 V RMS (High)

Min.Copper Power / Ground Wire Gauge
4 AWG wire

Fuse Rating
60 A (AFS, AGU or MaxiFuse™)

Signal Processing

Filter Slope(s)
12 dB/octave

Filter Frequency Range: Channels 1 & 2 (front)
35 Hz - 300 Hz

Filter Frequency Range: Subwoofer Channel
40 Hz - 400 Hz

Filter Mode(s): Channels 1 & 2 (front)
High-Pass only

Filter Mode(s): Subwoofer Channel
Low-Pass only

Detented, Calibrated Filter Freq. Potentiometers
Yes

Filter Defeat Function
Yes

Remote Subwoofer Level Control
Optional (RBC-1)

Remote Level Modes
N/A

Channel Input Mode Switch
Yes (2/4 ch.)

Pass-Through Preamp Output
None

Source Channel Selection for PreOuts
N/A

Physical Specifications

Height
1.77 in / 45 mm

Width
9.33 in / 237 mm

Depth
4.50 in / 115 mm
