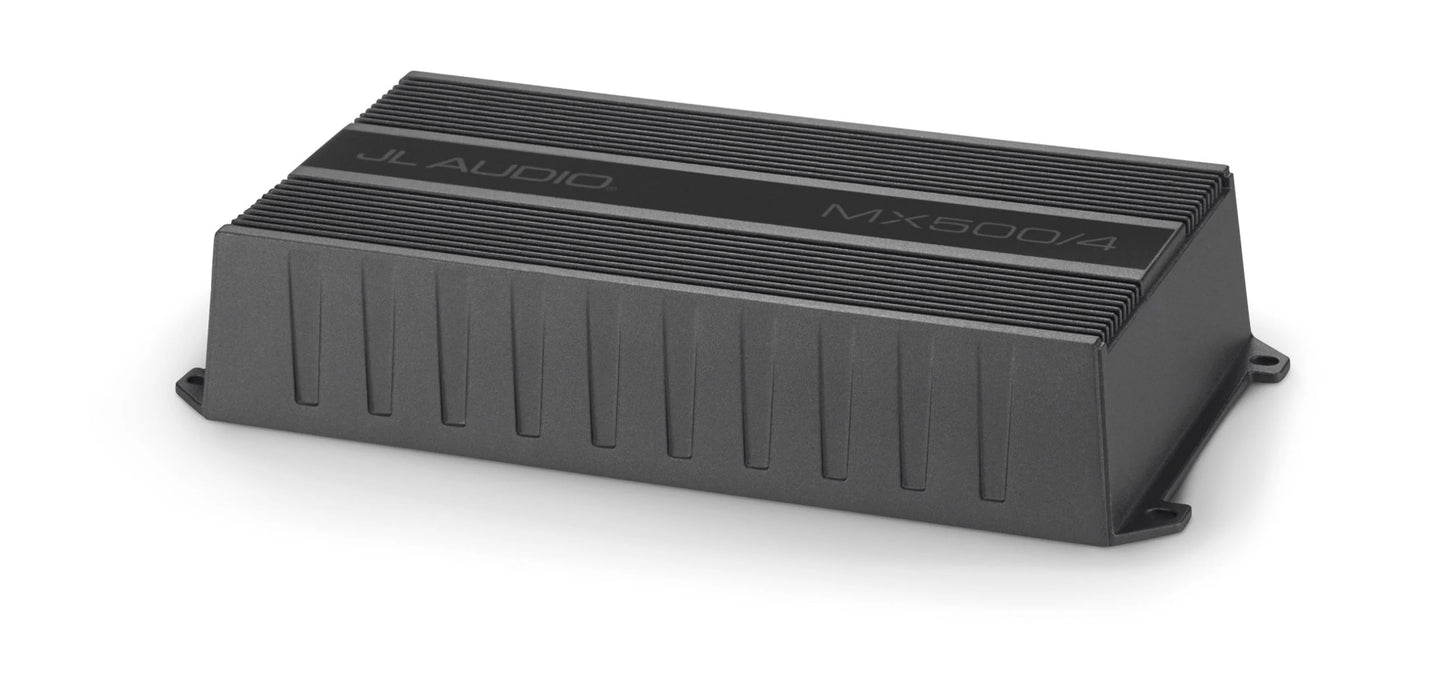

JL Audio MX Marine Amplifier 4-Channel Full-Range 500 Watts 12v

JL Audio MX Marine Amplifier 4-Channel Full-Range 500 Watts 12v

98408

Model: MX500/4

4-Channel Class D Full-Range Amplifier, 125 W x 4 @ 2 ohms / 70 W x 4 @ 4 ohms - 14.4V

Engineered specifically for powersports applications, the 4-channel MX500/4 amplifier employs our high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.

Generating a solid 70W x 4 into 4 ohms (14.4V, 1% THD), the MX500/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 250W x 2 into 4 ohms.

Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.

This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.

USA Limited Warranty: Two (2) years from the original date of purchase

Specifications

Rated Continuous (RMS) Power @ 14.4 V

@ 4 ohms
70 W RMS x 4

@ 2 ohms
125 W RMS x 4

Bridged @ 4 ohms
250 W RMS x 2

Rated Continuous (RMS) Power @ 12.5 V

@ 4 ohms
55 W RMS x 4

@ 2 ohms
90 W RMS x 4

Bridged @ 4 ohms
180 W RMS x 2

General Specifications

Frequency Response
20 Hz - 20 kHz (+0, -1dB)

S/N Ratio, referred to highest rated power
>88 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)

S/N Ratio, referred to 1 W
>70.5 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)

Damping Factor @ 4 ohms
>92 / 50 Hz

Damping Factor @ 2 ohms
>43 / 50 Hz

THD+N @ Rated Power
<1% @ ohms per Ch.

Input Voltage Range @ RCA Inputs
Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High)

Min.Copper Power / Ground Wire Gauge
4 AWG wire

Fuse Rating
50 A (AFS, AGU or MaxiFuse™)

Signal Processing

Filter Mode(s)
Low-Pass or High-Pass

Filter Slope(s)
12 dB/octave

Filter Frequency Range
35 Hz - 300 Hz

Detented, Calibrated Filter Freq. Potentiometers
Yes

Filter Defeat Function
Yes

Remote Level Control
No

Remote Level Modes
N/A

Channel Input Mode Switch
Yes (2/3/4 ch.)

Pass-Through Preamp Output
None

Source Channel Selection for PreOuts
N/A

Physical Specifications

Height
1.77 in / 45 mm

Width
9.33 in / 237 mm

Depth
4.50 in / 115 mm
